FUJITSU Server TX200 S6 - Manual (Page 54)

54 Operating Manual TX200 S6
Hardware installation
Installing the support systems

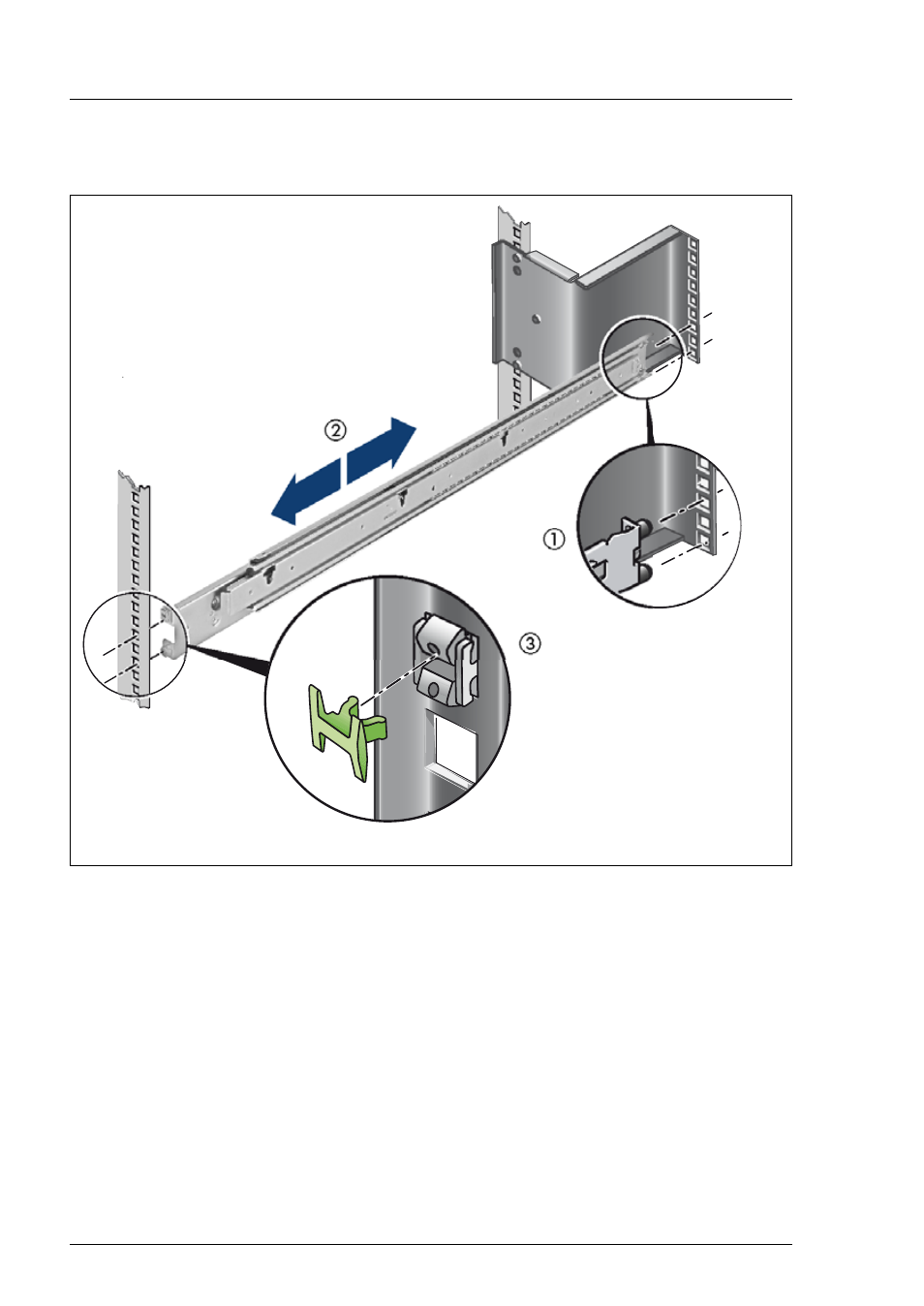

Figure 5: Fit the left support system in the PRIMECENTER/DataCenter rack
Ê Position the left support system in the support bracket (insert retaining bolts)
- see (1).
I
For the Japanese market:
There is no support bracket. Please position the support system
directly on the support upright.
Ê Clamp the left-hand support system (2) between the front left support
upright and the support bracket by pressing the support system together,
positioning it on the front support upright and releasing it again. The support
system automatically adjusts to the rack depth.
/
