TX200 S6 Operating Manual 75
Starting up and operation
LAN indicators

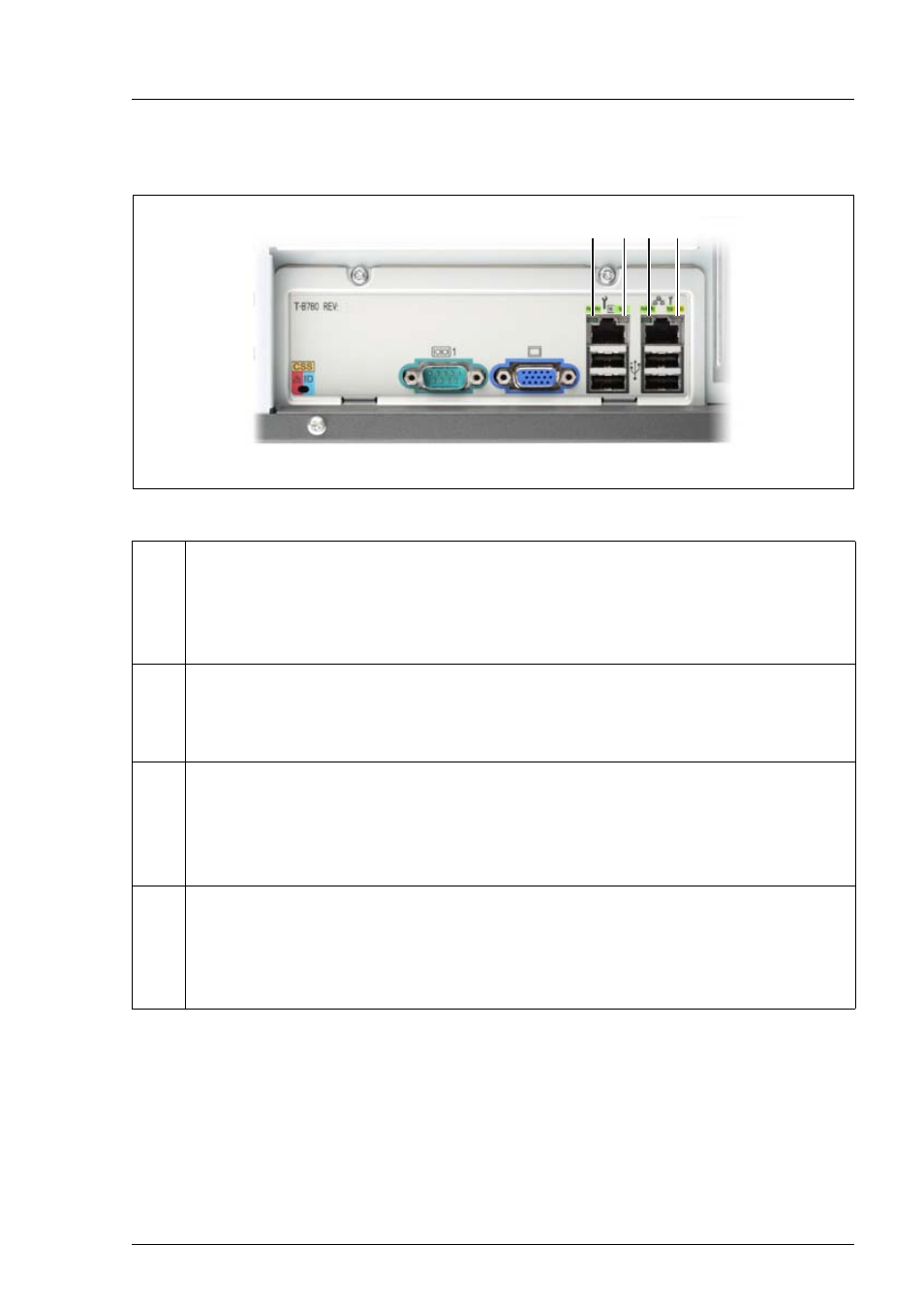

Figure 18: Indicators on the connector panel: LAN indicators
I
Depending on the settings in the BIOS, the shared LAN connector may
also be used as a management LAN connector. You will find further
information in the "D2799 BIOS Setup Utility for PRIMERGY TX200 S6"
manual.
1 LAN activity indicator (management LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
2 LAN transfer rate indicator (management LAN)
Lights up green for a LAN transfer rate of 100 Mbit/s.
Does not light up for a LAN transfer rate of 10 Mbit/s.
3 LAN activity indicator (shared LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
4 LAN transfer rate indicator (shared LAN)
Lights yellow for a LAN transfer rate of 1 Gbit/s.
Lights up green for a LAN transfer rate of 100 Mbit/s.
Does not light up for a LAN transfer rate of 10 Mbit/s.
