114 Operating Manual TX200 S6
CSS components
8.2.5.3 Closing the server

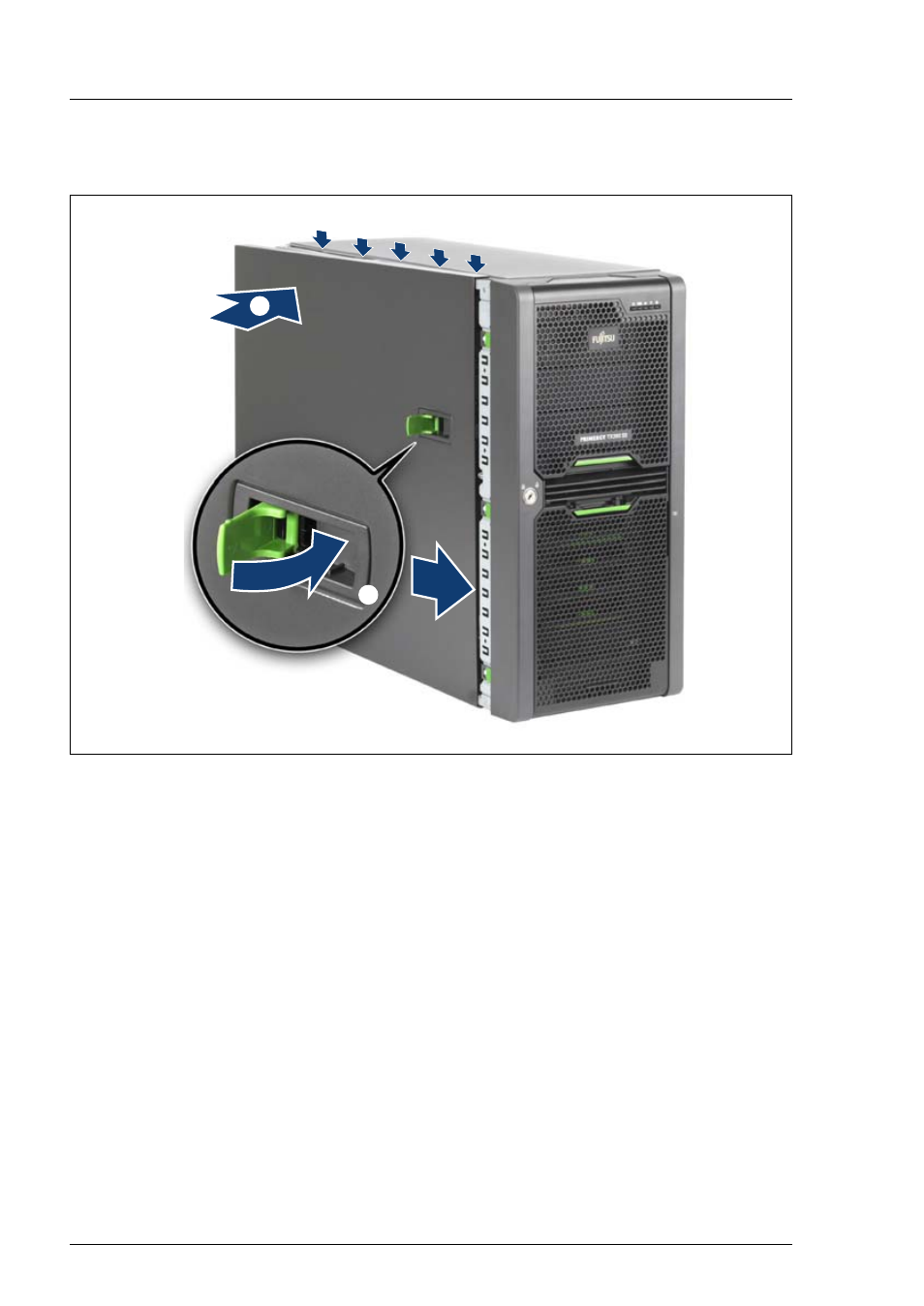

Figure 38: Closing the server (example: floorstand model)
Ê Pull the locking lever as far as it will go and insert the side cover in the five
recesses (see small arrows) of the housing (1).
Ê Press the side cover against the housing and at the same time push the
locking lever shut (2).
Closing the locking lever pushes the side cover forwards and the hooks on
the upper edge of the side cover engage.
Ê In the case of rack models, you still have to slide the server back into the rack
(see section
"Installing/removing the rack model" on page 49 ).
Ê Connect all power plugs to the power outlets.
Ê Press the On/Off button to start up the server.
