4.4 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed.
The standard connectors are indicated by symbols and color coding:

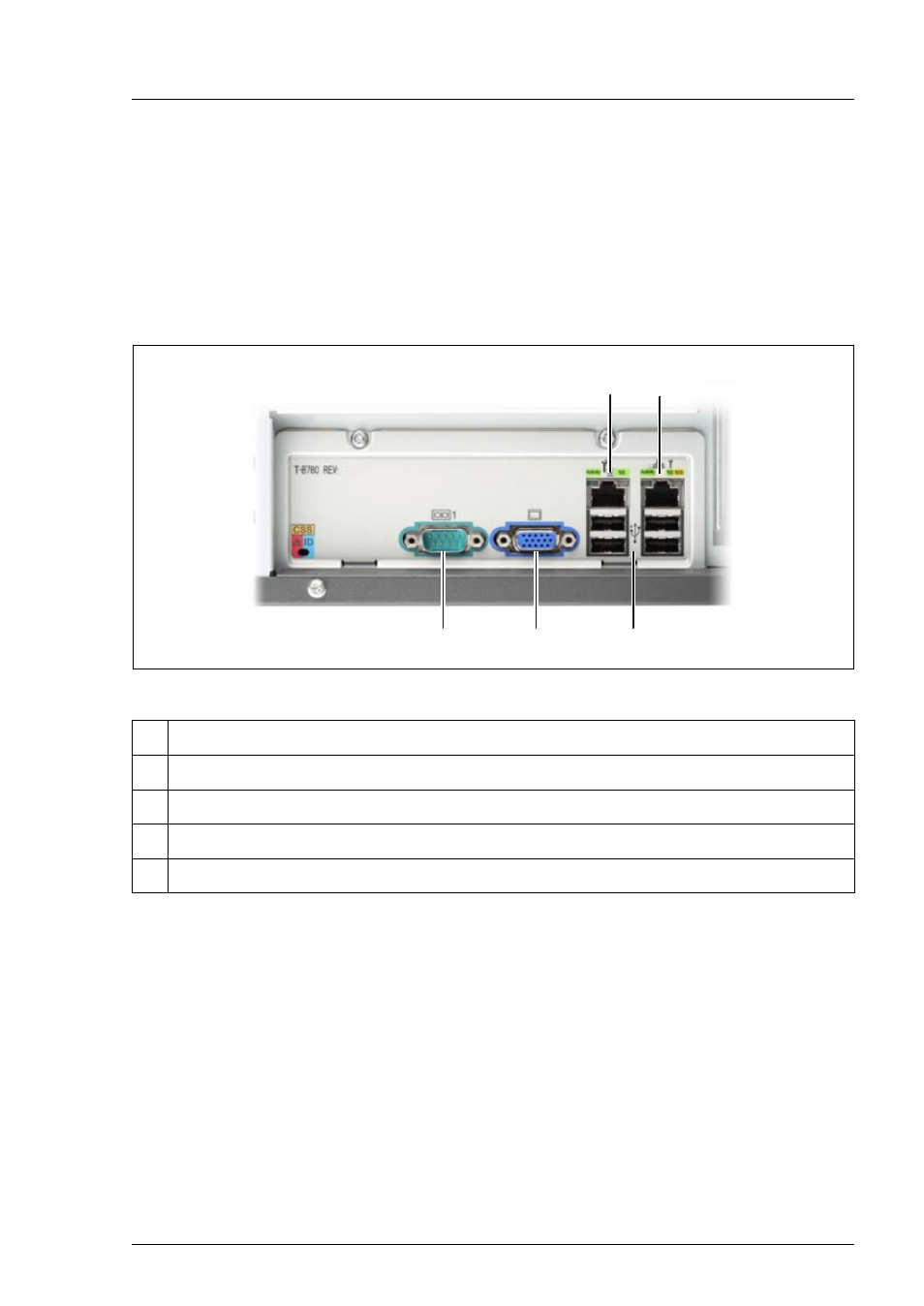

Figure 9: Connector panel on the rear side
The corresponding indicators are explained in section "Rear of server" on
page 73 .
I
Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
Ê Connect the data cables to the server and peripherals.
Three additional USB connectors are located on the front of the server (see
figure
15 on page 68 ).
1 Management LAN connector (LAN 1)
2 Shared LAN connector (LAN 2)
3 USB connectors (black)
4 Video connector (blue)
5 Serial connector COM1 (turquoise)
1 2 3
