Replacing an expansion card
8.2.4.1
Removing a defective expansion card

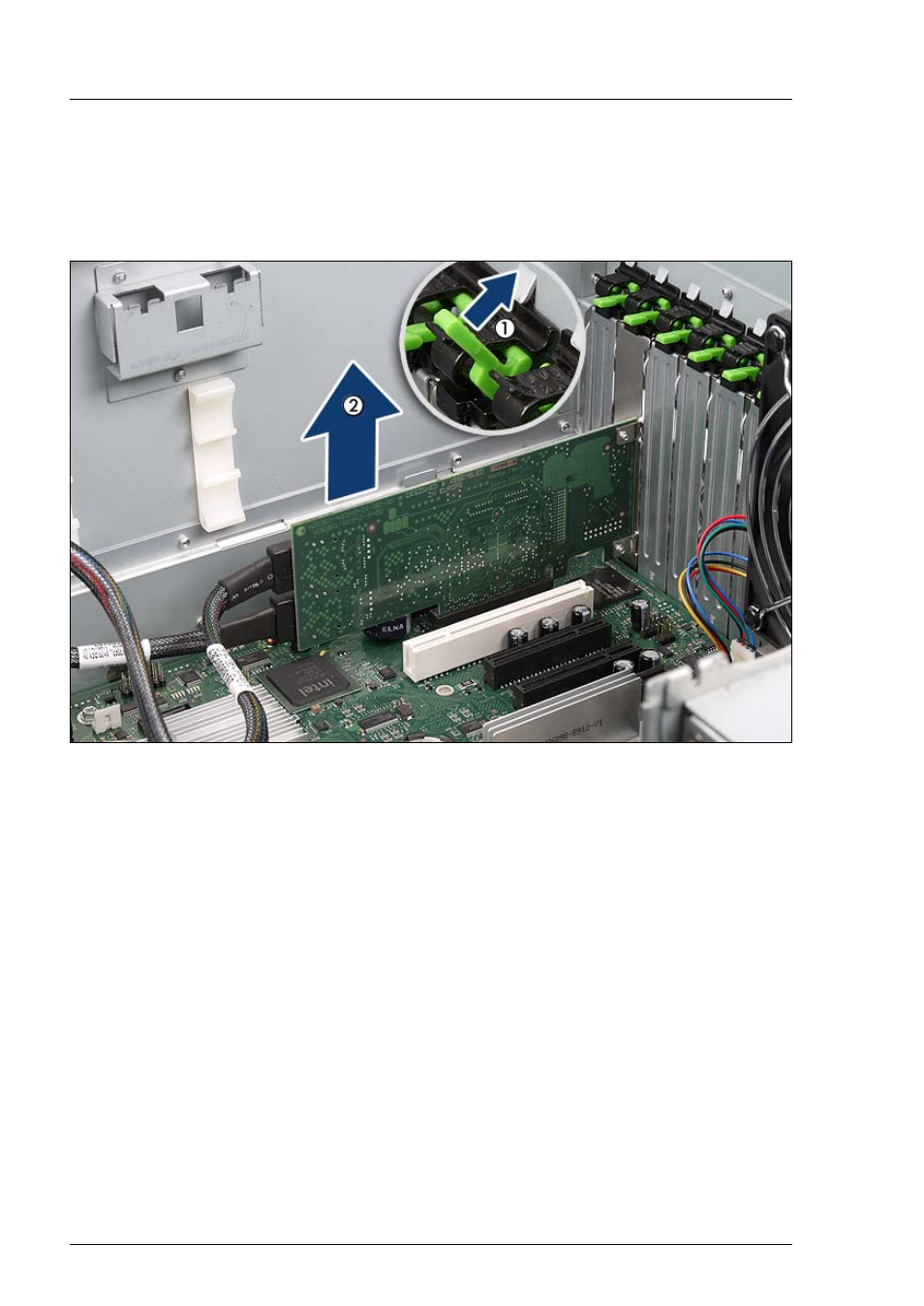

Figure 34: Removing a defective expansion card
Ê
If necessary, remove the cables from the defective expansion card.
Ê
Push the lever upwards (1).
Ê
Press onto the clip and remove it.
Ê
Pull the defective expansion card out of its slot (2).
