Mount a New Flash Tube

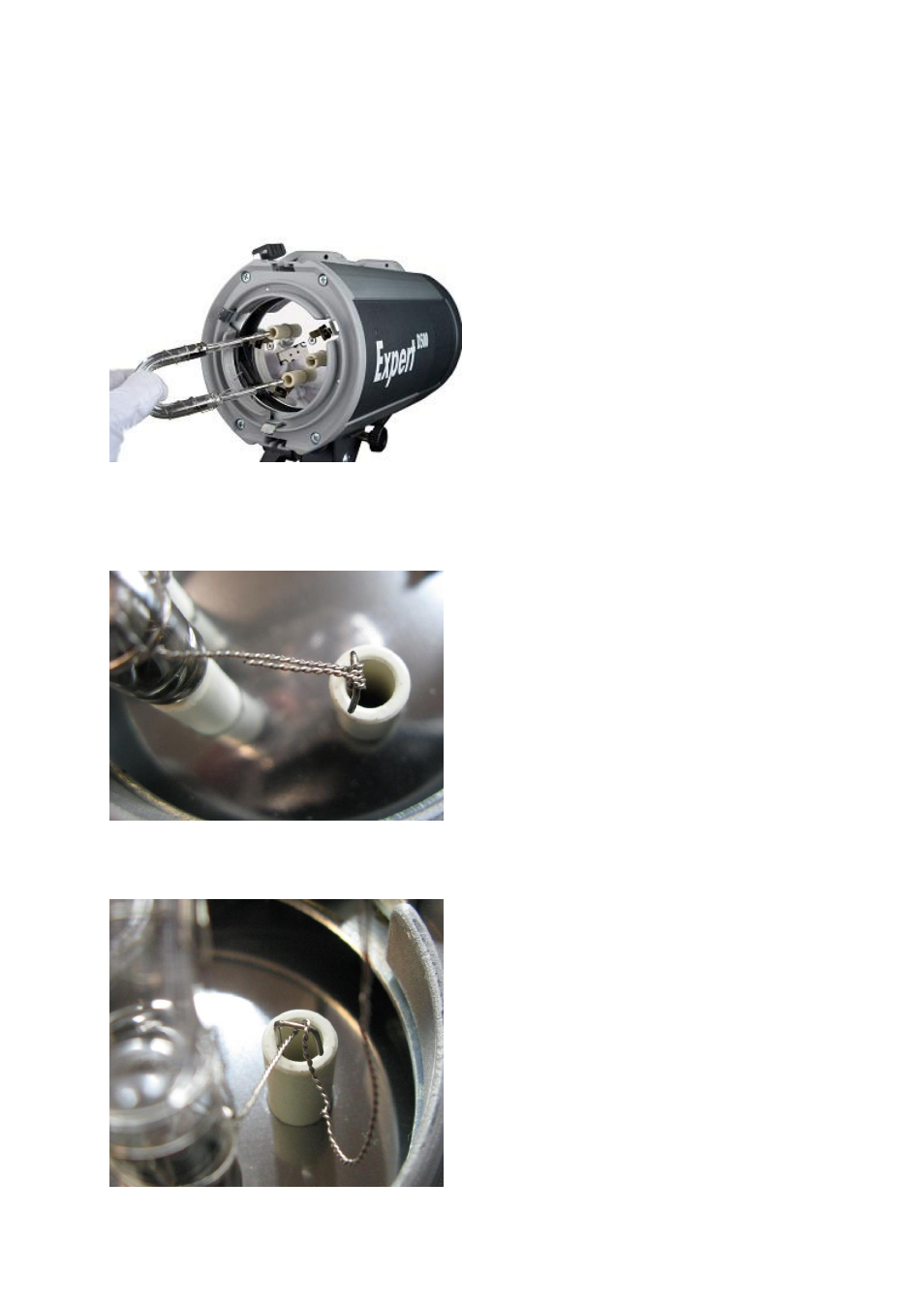

 Unpack the flash tube.
 Check the glass body of the flash tube for obvious cracks and
defects.
 Place the flash tube on the
plug base and carefully push
the flash tube in until
reaching the end stop.
 Pull the flash tube out again
approximately 0.5 mm so
that the glass body can
expand upon warming.
Correct Assembly
 Wrap the ignition wire onto
the connecting pin and
afterwards onto itself facing
the glass body.
 If the remaining ignition wire
is too long, it can be cut with
a caliper.
False Assembly
 If the ignition wire is wrapped
loosely onto the connecting
pin the unit might not flash
properly.
 If the ignition wire is not
wrapped onto itself facing the
glass body, the ignition
voltage flows via the metal
parts of the unit to the
protecting earth.
