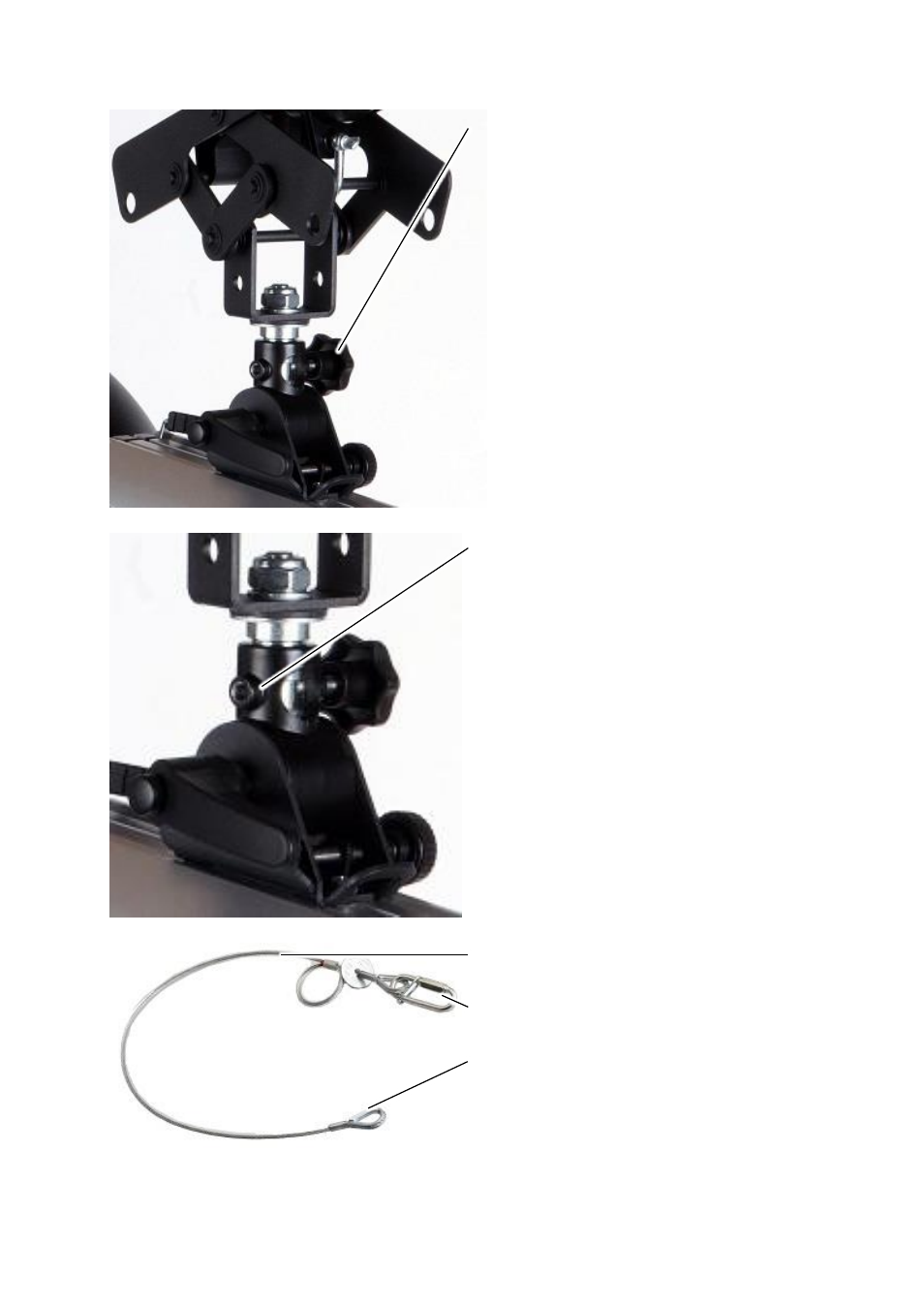

Locking device, stand mounting
 Loosening the locking
device stand mounting by
turning it a few times.
 Please make sure that you
don’t turn it loose
completly.
 Insert the tilting bracket of
the flash unit into the stud of
the pantograph or the boom.
 Tighten the locking device
stand mounting.
Safety screw for suspended
mounting
 Use an additional safety
screw:
 Art.-No. 9979839 Screw
hexagonal M6x16 DIN 933
ISO 4017 vz
 Art.-No. 9997919 Nut
M6 DIN 934 ISO 4032
Safety rope artikelnumber 7690
Spring safety hook
Rope thimble
