User Manual Expert D 250 Speed / D 500 / D 1000
36
HENSEL-VISIT GmbH & Co. KG

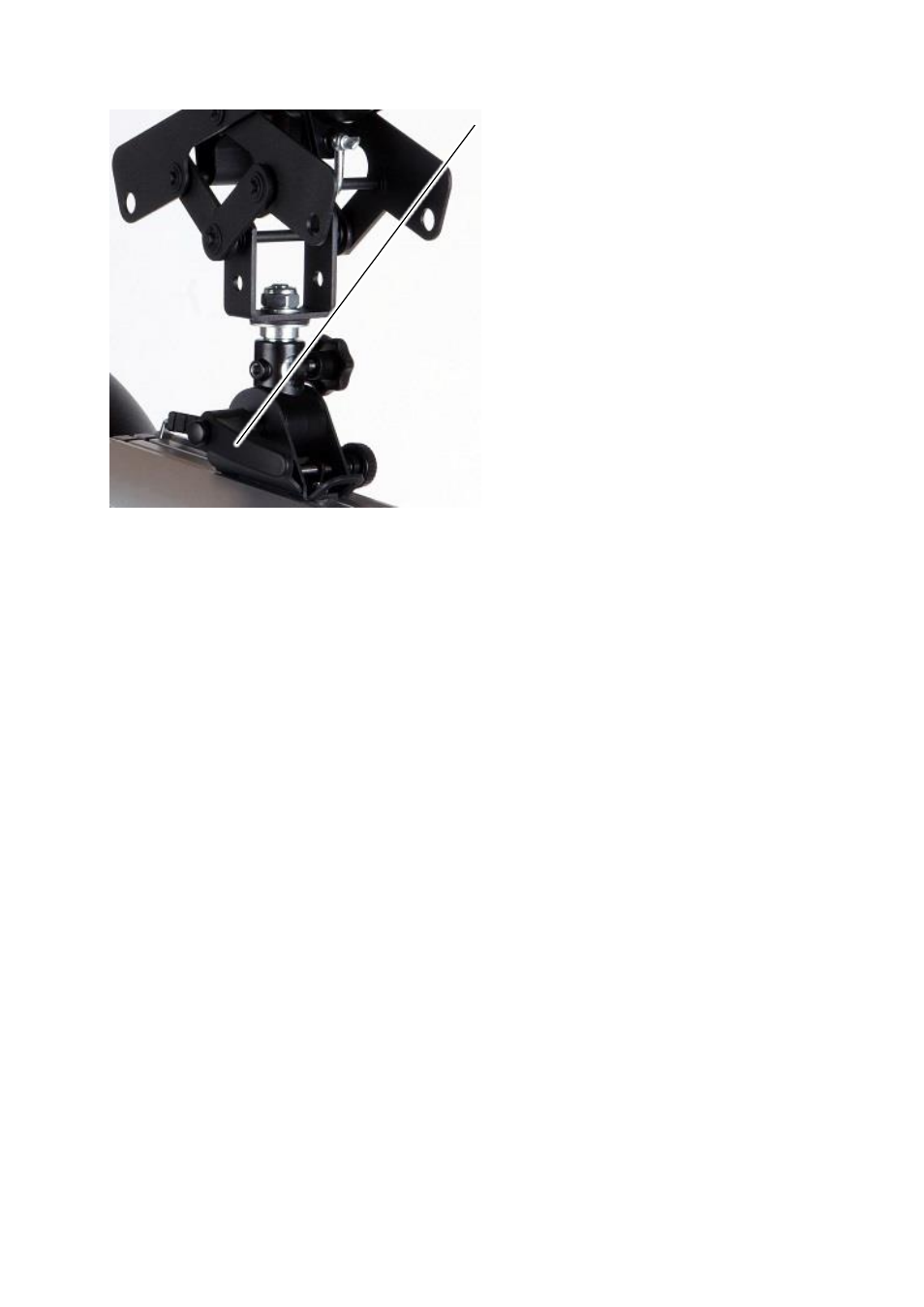

Locking screw, tilting bracket
Tilt the flash unit into the
desired position and tighten
the locking screw of the
tilting bracket again.
If the tilting bracket’s locking screw cannot be opened or closed far
enough and you keep bumping against the housing, lift up (pull) the
locking screw by pressing down on the axis of the locking screw.
The locking screw’s serration loosens and you can turn the grip into a
more favorable position for further opening and closing of the locking
screw.
