User Manual Expert D 250 Speed / D 500 / D 1000
Hensel-Visit GmbH & Co. KG 31

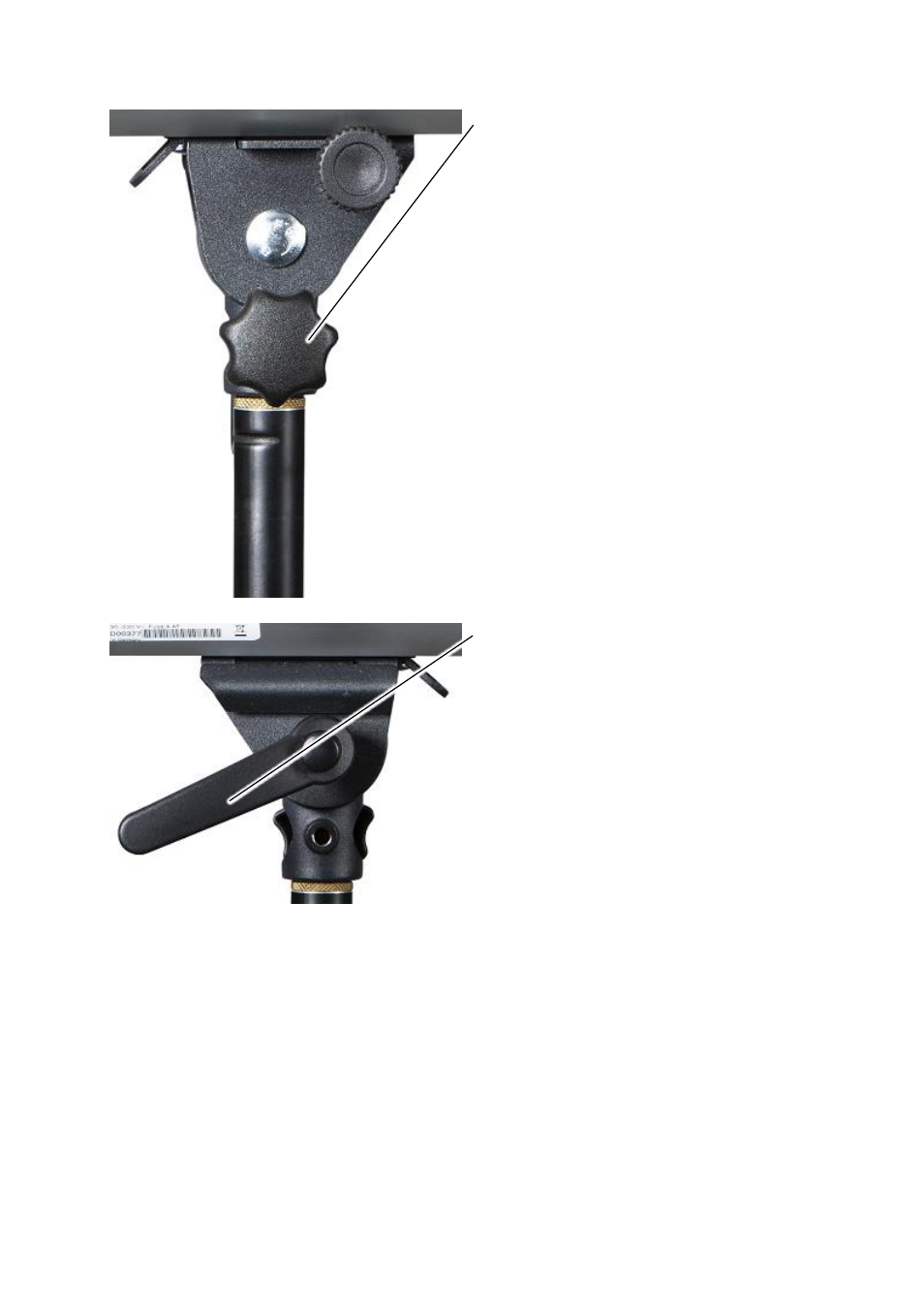

Locking device, stand mounting
 Put the flash unit on the
stand mounting and tighten
the locking device stand
mounting.
 For rotating the flash unit
on the stand mounting
loosen the locking device
stand mounting, turn the
flash unit and tighten the
locking device.
Locking screw, tilting bracket
 For tilting of the flash unit,
loosen the locking screw of
the tilting bracket.
If the tilting bracket’s locking screw cannot be opened or closed far
enough and you keep bumping against the housing, lift up (pull) the
locking screw by pressing down on the axis of the locking screw.
The locking screw’s serration loosens and you can turn the grip into a
more favorable position for further opening and closing of the locking
screw.
