User Manual Expert D 250 Speed / D 500 / D 1000
Hensel-Visit GmbH & Co. KG 37

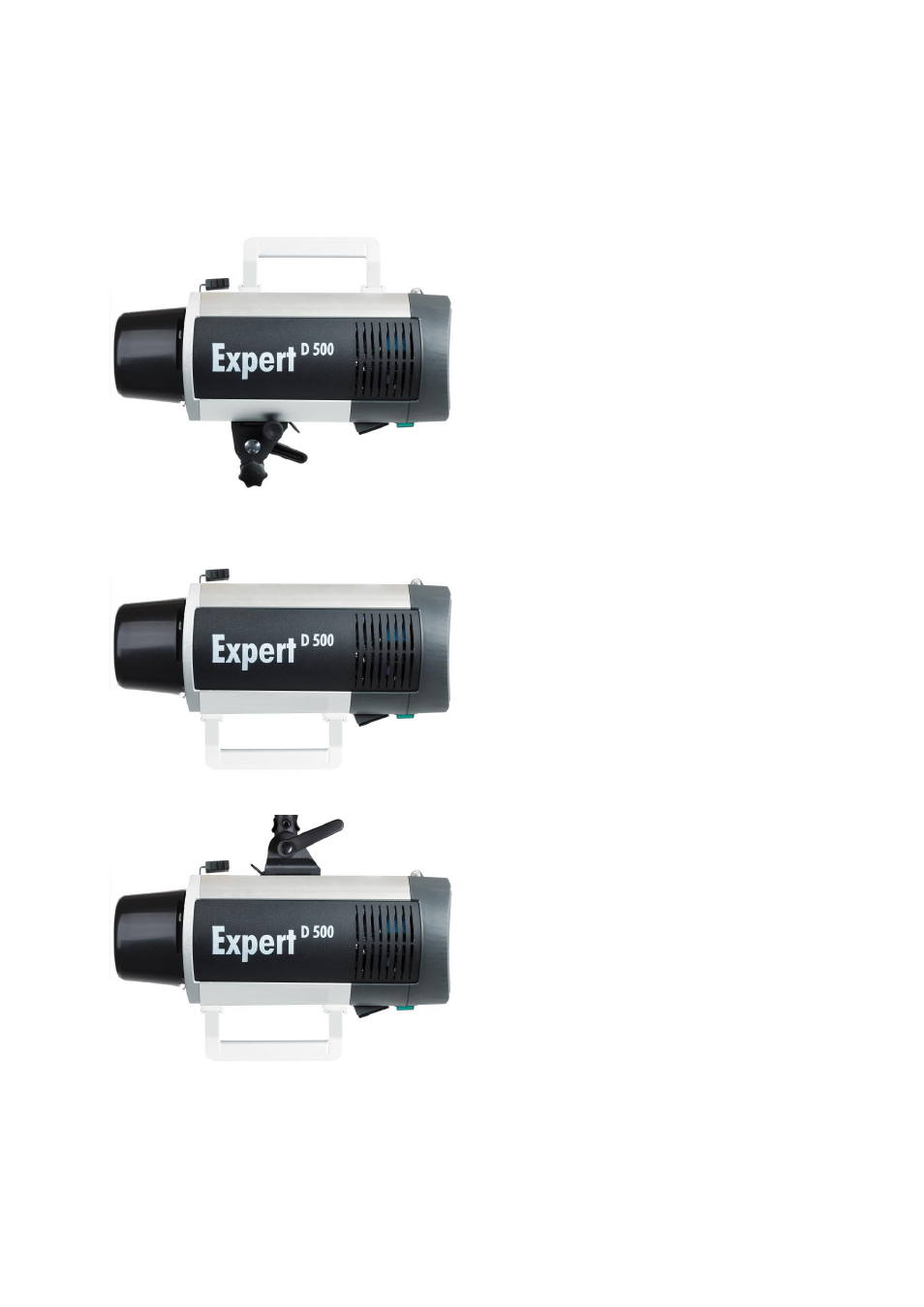

Repositioning Tilting Bracket and Handle
The position of the tilting bracket and the handle can be swapped. This
lets you mount the flash unit in an overhead location like a ceiling.
 Loosen the two crosshead
screws on the tilting bracket.
 Slide the tilting bracket
forward along the guide rail
of the housing.
 Put the tilting bracket aside
until you have removed the
handle.
 Loosen the two crosshead
screws on the handle.
 Slide the handle forward
along the guide rail of the
housing.
 Insert the handle into the
guide rail on the opposite
side of the housing.
 Tighten fast the two screws of
the handle.
 Insert the tilting bracket into
the guide rail on the opposite
side of the housing.
 Tighten fast the two screws of
the handle.
