OPERATOR’S MANUAL
Seed Manager SE
11001-1359A-200810
6 / INSTALLATION AND SETUP
CONSOLE HARNESS INSTALLATION
The J1 connector on the back of the console connects all input and output
signals to the Seed Manager
®
SE console. The primary tractor harness is
shown in (
Figure 3
).
Harness contains connectors for
• Ground speed sensor (digital)
• Ground speed sensor (reluctance)
• System power
• P1 and P2 Bus connectors. A secondary module harness is used to
connect to P1 and/or P2.
For systems that contain a J2 connector, a separate accessory harness will
contain a RS-232 connector for PC/GPS applications.

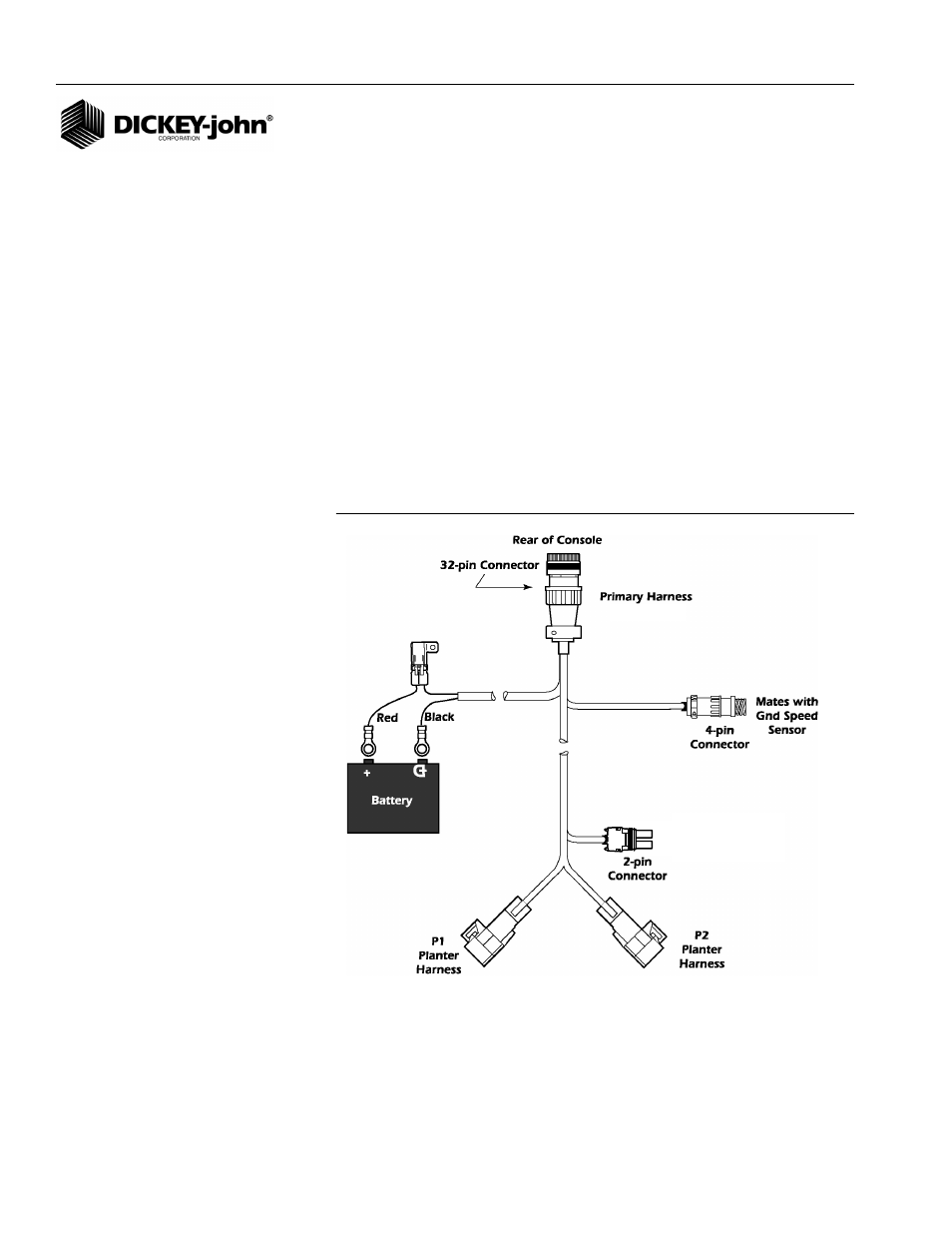

Figure 3
Primary Tractor Harness
46682-0132
Mates with Reluctance
Ground Speed Sensor
Due to the power requirements for
the Seed Manager
®
SE system,
the battery connections must be
made directly to the tractor battery.
Note:
