OPERATOR’S MANUAL
Seed Manager SE
11001-1359A-200810
14 / INSTALLATION AND SETUP
CONNECTING SENSORS TO MODULES
IMPORTANT: When connecting sensors to the Material Flow Modules,
all seed sensors installed on a Material Flow Module
must be connected sequentially starting with Row 1 as
shown below.
When correctly connected, row 1 sensor should be connected to the Row 1
input on b1. The monitor will then number the sensors from 1 to n starting
on b1, then b2, and so on.

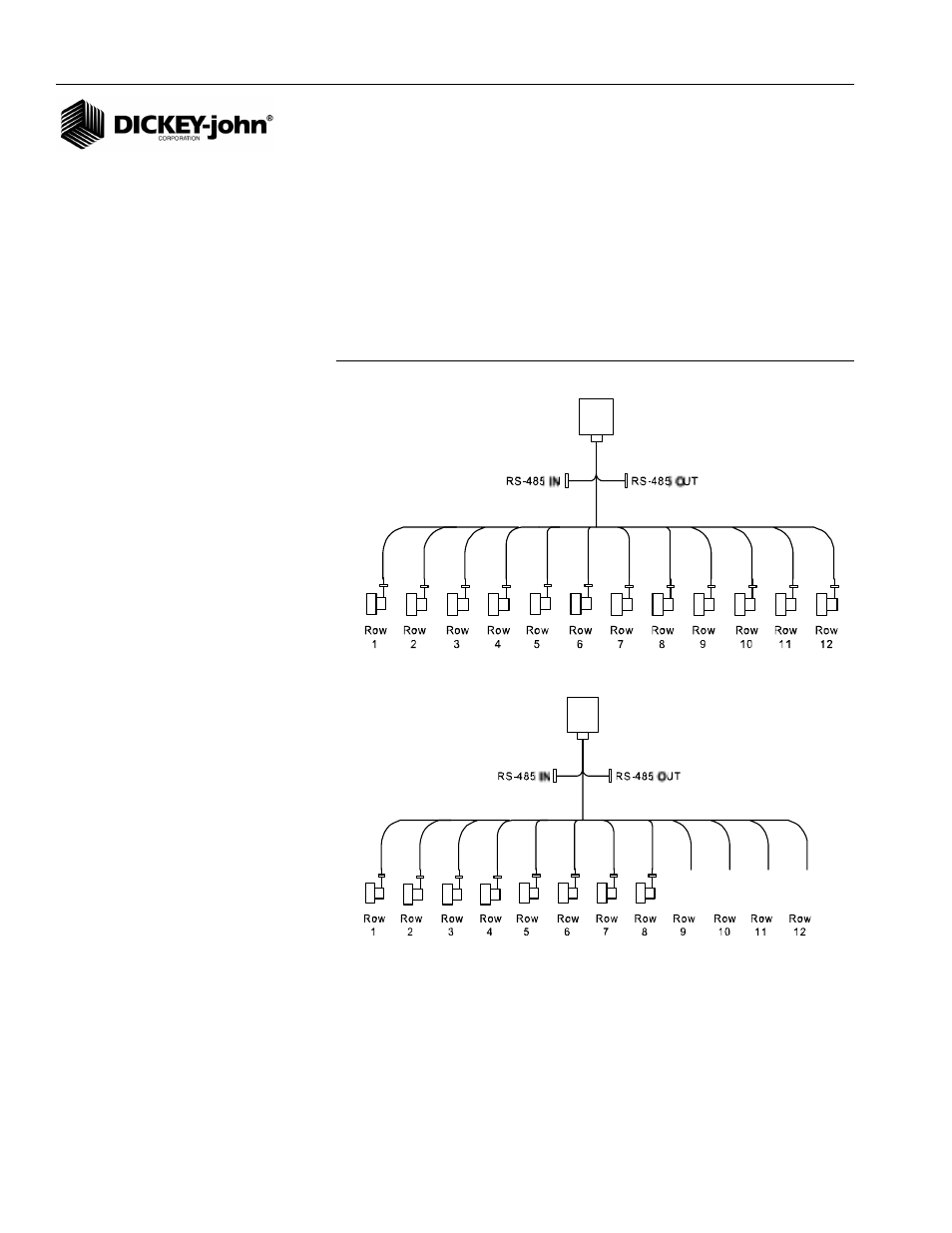

Figure 11
Correct Install
Correct Install
