OPERATOR’S MANUAL
Seed Manager SE®
11001-1359A-200810
INTRODUCTION / 3
INTRODUCTION
SYSTEM OVERVIEW
The Seed Manager
®
SE System monitors up to ninety six (96) seed rows,
two (2) fan (RPM) inputs, three (3) shaft speed (RPM) inputs, two (2)
pressure inputs, seven (7) hopper level inputs, and (1) ground speed input.
It is compatible with DICKEY-john standard and Hi-Rate seed sensors.
Implement configuration data is stored in nonvolatile memory retaining
information even when disconnected from the tractor battery.

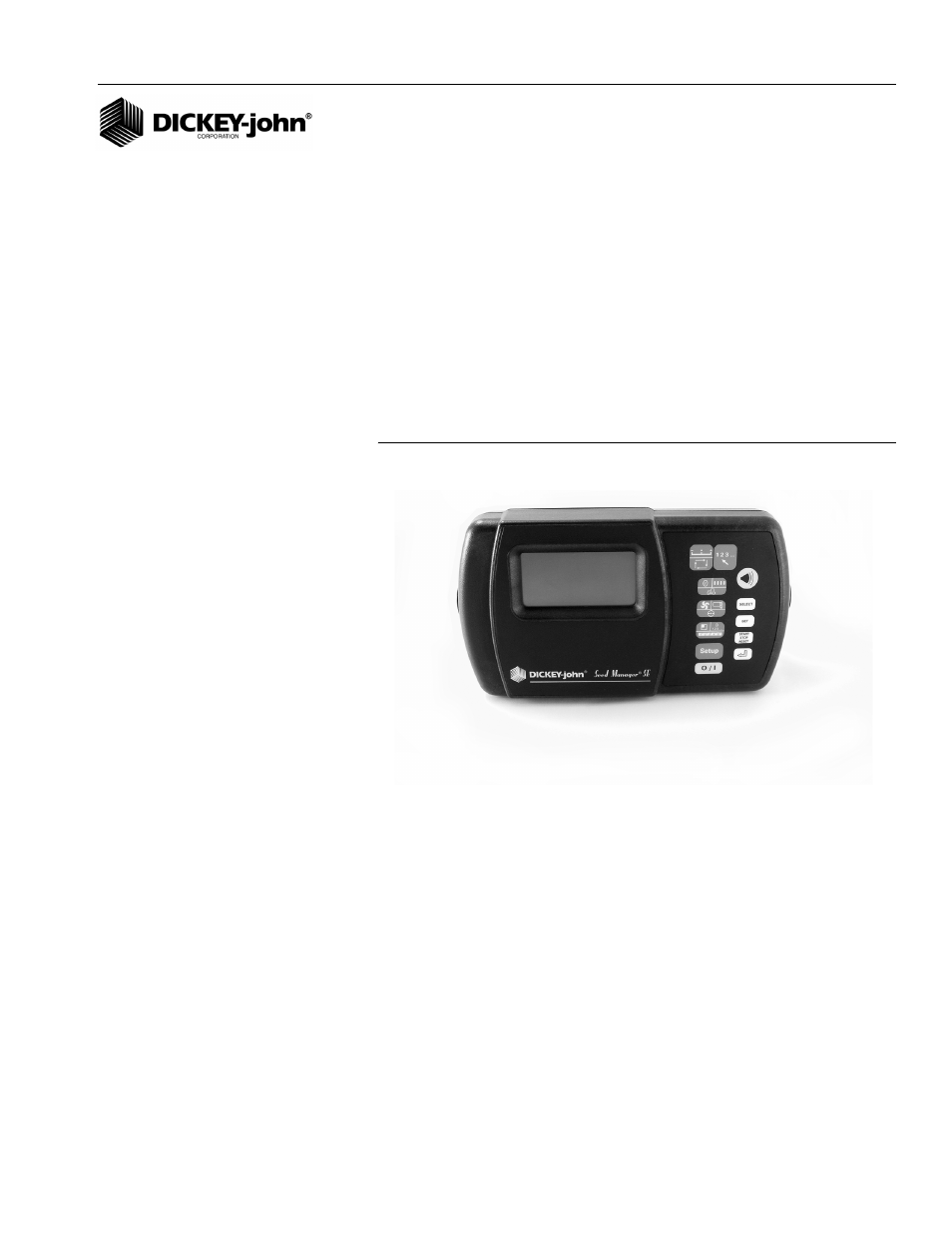

Figure 1
SeedManager ® SE Console
