OPERATOR’S MANUAL
Seed Manager SE®
11001-1359A-200810
INSTALLATION AND SETUP / 11

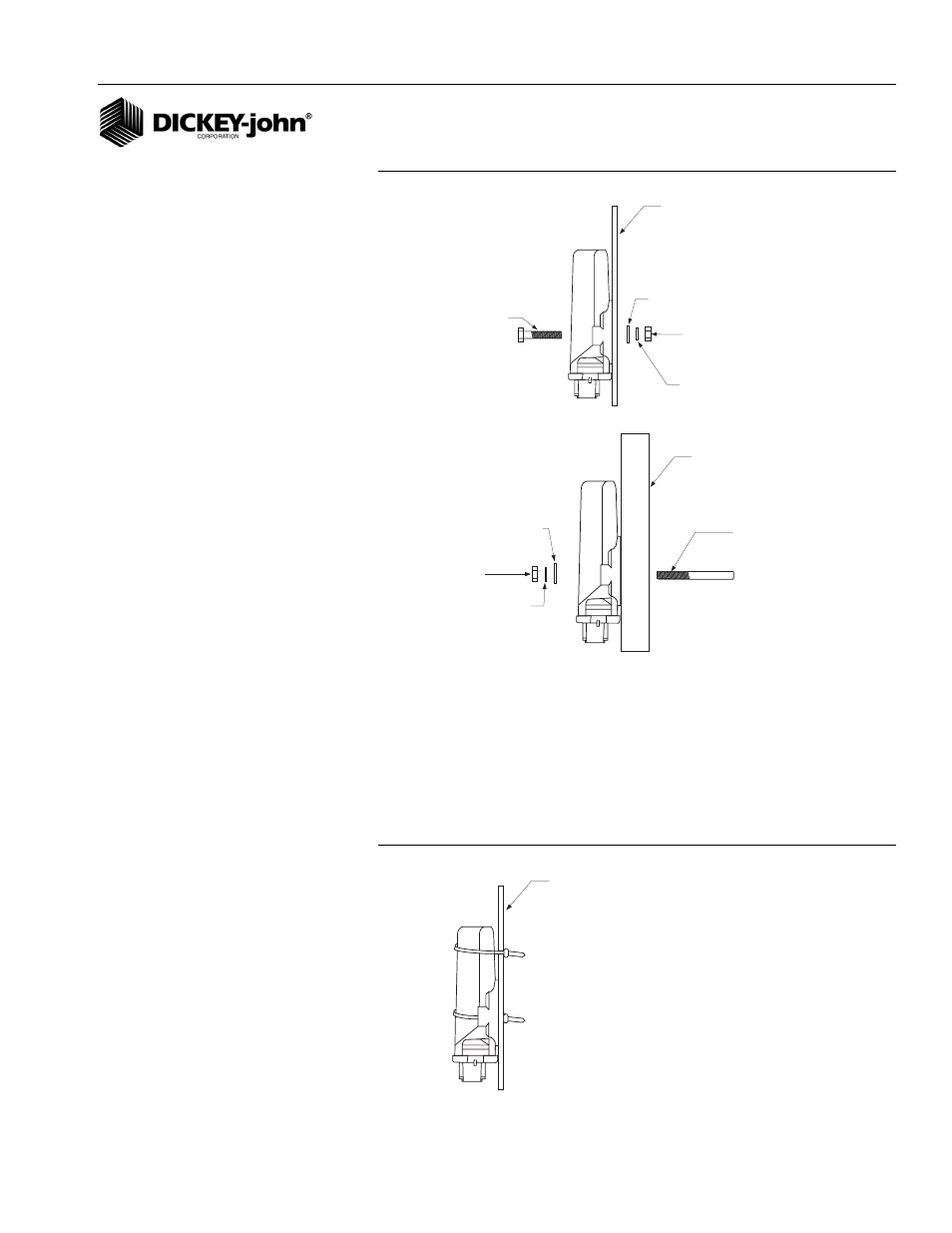

Figure 8
Material Flow Modules (using bolts)
4. To tie strap the member to a frame:
• Use one long tie-strap to loop around the member body and through
both mounting holes as illustrated in (
Figure 9
).
• If necessary, drill mounting holes following the procedure described
above.
• Securely tighten tie strap.
• Install a second tie strap toward the label end of the enclosure for
additional support.
Figure 9
Material Flow Module Installation (Tie Strap)
1/4 x 20 BOLT
1/4 FLAT WASHER
1/4 SPLIT
LOCKWASHER
1/4 NUT
IMPLEMENT
FRAME
1/4 x 20
THREADED "U"
BOLT OR
OTHER
FASTENING
DEVICE
1/4 FLAT WASHER
1/4 SPLIT LOCKWASHER
1/4 NUT
IMPLEMENT
FRAME OR
SUPPORT
IMPLEMENT
FRAME
