7.6.3 sEQUENCE SELECT
3-1. MOve the cursor on the menu bar to the [SEQUENCE SELECT] position and depress
the
[↵]
key. THE pulldown menu will display the SEQUENCE NO.
3-2. USINg the
[←] [→]
keys, select the desired sequence to be viewed and depress the
[↵]
key. THe screen will change to the selected sequence and display the
preset sequence. THe SEQUENCE NO. will be displayed in the upper right hand
corner.

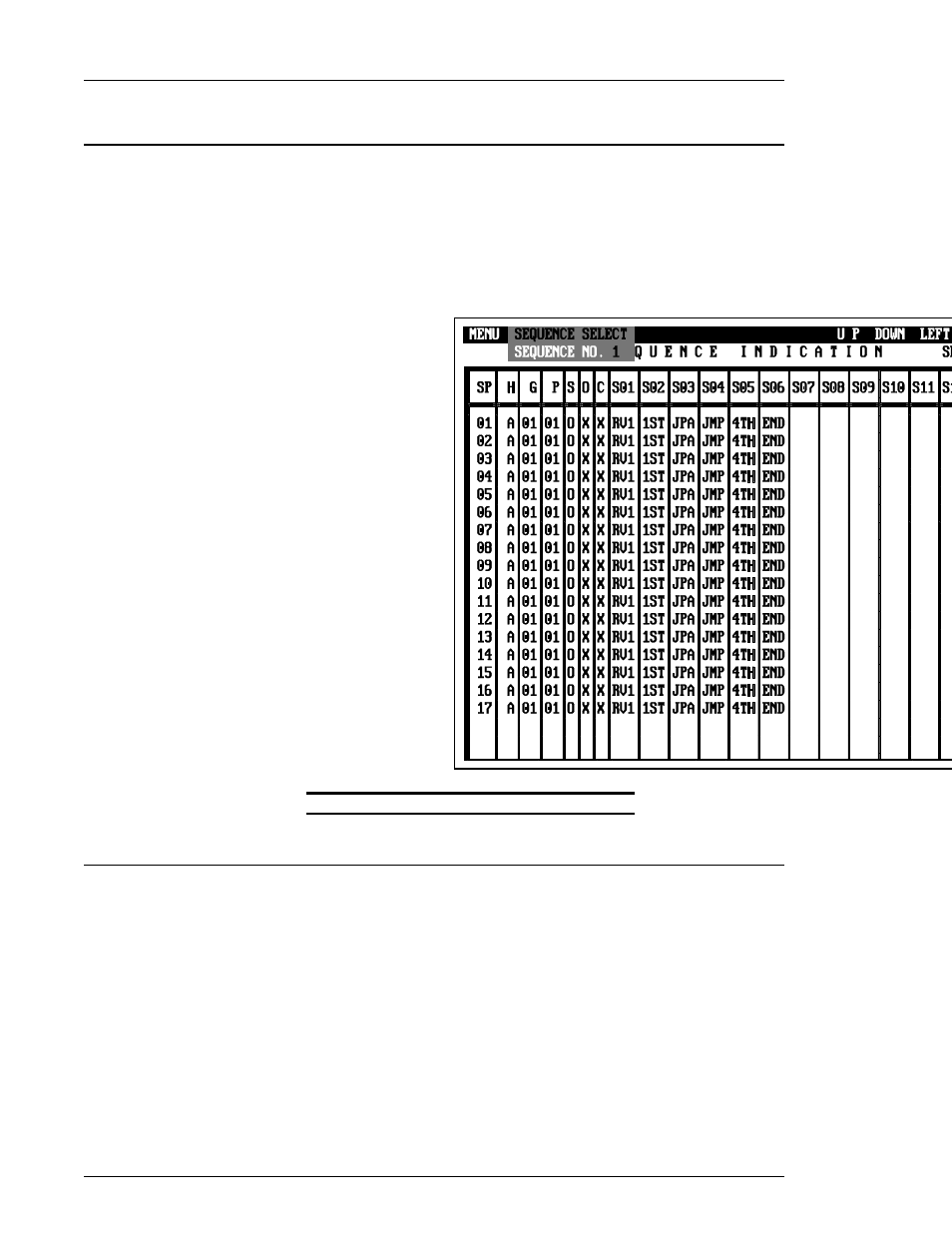

FIG. 7-6-3 sequence indication sequence select
7.6.4 SCREEN SCROLLING AND PRINTOUT FUNCTIONS
4-1. EACh fastening sequence (1-8), is capable of being set up for (24) spindles with (32)
fastening stages or steps for each spindle. DUe to the screen size, only (15) stages
for (19) spindles may be displayed at once. Therefore, scrolling is necessary.
4-2. USINg the
[←] [→]
keys move the cursor to [UP], [DOWN], [LEFT] or [RIGHT] and
depress the
[↵]
key to scroll.
4-3.
THE [UP] [DOWN] position will scroll (15) stages of the fastening sequence for each
spindle. THe [LEFT] [RIGHT] position will scroll the sequence stages for up to (19)
spindles.
4-4.
TO print the fastening sequence for all spindles, move the cursor on the menu bar to
[PRINT] and depress the
[↵]
key.
