7.2 liMIT PARAMETEr
THE function of this screen is to view the preset limit parameters of all nutrunners
connected to the System.
7.2.1 TABLE OF CONTENTS
7.2.1. TAble of Contents for LIMIT PARAMETER screens
7.2.2. Sequence Select
7.2.3. SEt Mode
7.2.4. DISPLAy Explanation
7.2.5. SCREEn Operation
7.2.2 sEQUENCE SELECT
2-1. AFTer selecting [LIMIT PARAMETER] from the menu bar, depress the
[↵]
key and
the screen will change to the "PARAMETER ( )" display screen.
2-2. MOve the cursor on the menu bar to [SEQUENCE SELECT] using the
[←] [→]
keys and depress the
[↵]
key. The SEQUENCE SELECT window will appear.
2-3. Select the desired SEQUENCE no. using the
[←] [→]
keys. DEPREss the
[↵]
key
to display the limit parameters for the selected sequence.

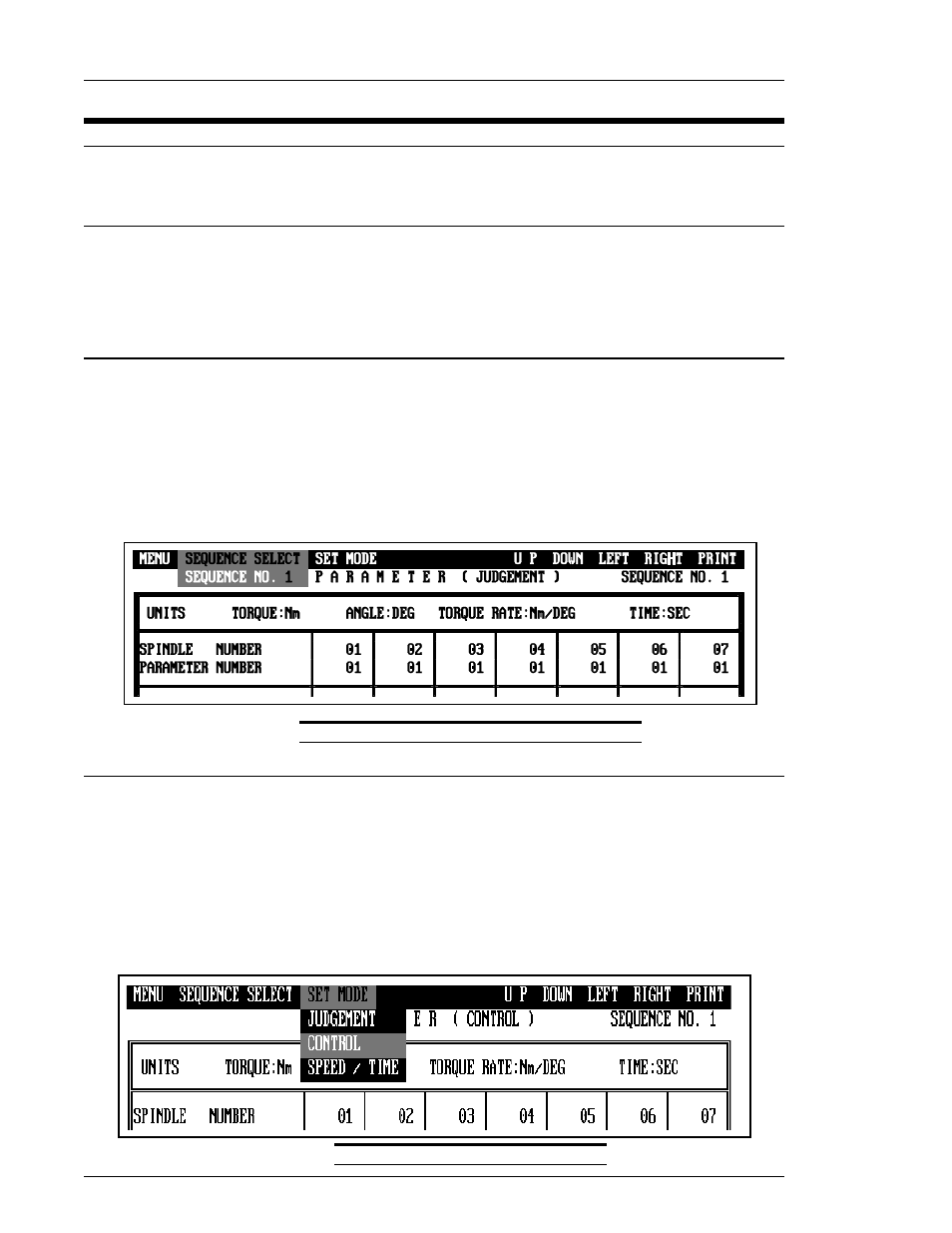

FIG. 7-2-2 limit parameter [SEQUENCE SELECT]
7.2.3 SET MODE
3-1. Move the cursor on the menu bar to [SET MODE] using the
[←] [→]
keys and
depress the
[↵]
key. THe SET Mode window will appear.
3-2. SELEct the mode to be displayed using the
[↑] [↓]
keys and depress the
[↵]
key. THe screen will change to display the limit parameters for the item chosen from
the following three options:
PARAMETER (JUDGMENT) PARAMETER (SPEED/TIME)
PARAMETER (CONTROL)
FIG. 7-2-3 limit parameter [SET MODE]
Chapter 7: System Operation
Page 7-26
