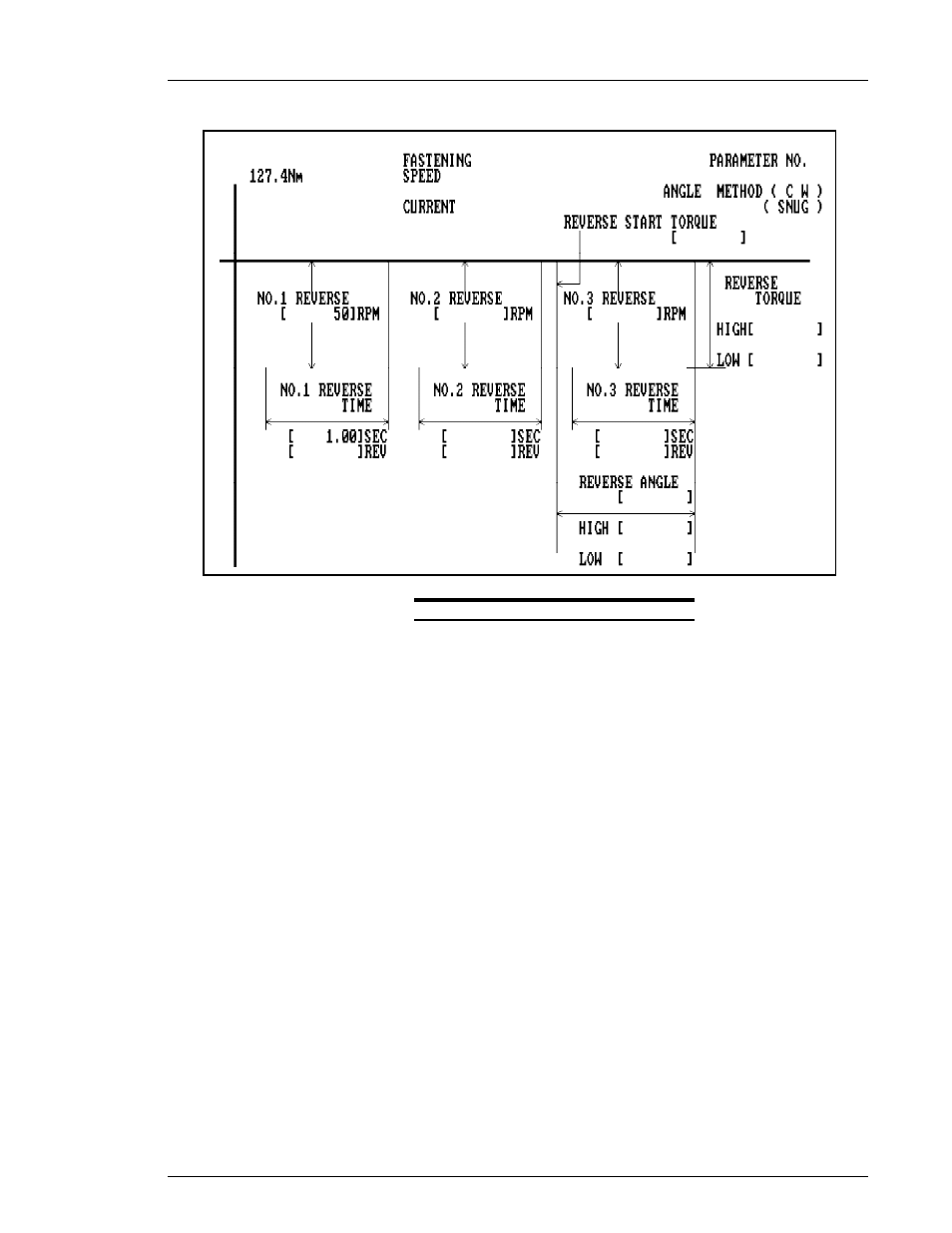

FIG. 7-1-5-1 Set Parameter [REVERSE ]
5-2 Input Speed Parameter Data
5-2a. Enter the numerical data required for the selected item and depress the
[↵]
key.
5-2b.
The cursor will move to the next item to be entered until all items have been
entered.
5-2c.
After all items have been entered or changed, depress the [SEL] key. The
question "DATA CHANGE OK?" will appear in the lower right hand corner.
5-2d. Select YES or NO using the
[←] [→]
keys and depress the
[↵]
key.
Refer to the "VOCABULARY LIST" Sections 7.1.7 Through 7.1.12 for details of
presetting for each fastening method and to Chapter 6 for fastening instructions.
NOTE:
1. If incorrect numerical data is entered, the System will display "INPUT ERROR".
2. Reverse period may be set in either seconds or revolutions.
3. Data entered in the No. 1 Reverse mode may be accessed through the nutrunner
sequence or from an external input (PLC, switch, etc).
4. When an external device is used to access mode No. 1, the nutrunner will run at the preset
RPM only for as long as the external signal is maintained. The time and revolution values
are not utilized.
5. Data entered in the No. 2 or No. 3 reverse modes may be accessed only through the
nutrunner sequence.
