7.1.4 SPEED PARAMETER SETUP
THe function of this screen is to preset the following parameters:
FASTENING SPEED [RPM]
FASTENING TIME [SEC]
FASTENING REVOLutions
[REV]
4-1.
SELECT INPUT MODE
4-1a. Move the cursor on the menu bar to [INPUT MODE], select [SPEED] and
depress the
[↵]
key. THE screen displayed will be the "SET PARAMETER (SPEED)"
screen. Check the PARAMETER No. to ensure the correct number has been
selected). THE screen will change to display the "SET PARAMETER (SPEED)"
screen.
4-1b. DEPress the [SEL] key and the cursor will move to the first position for
numerical entry.

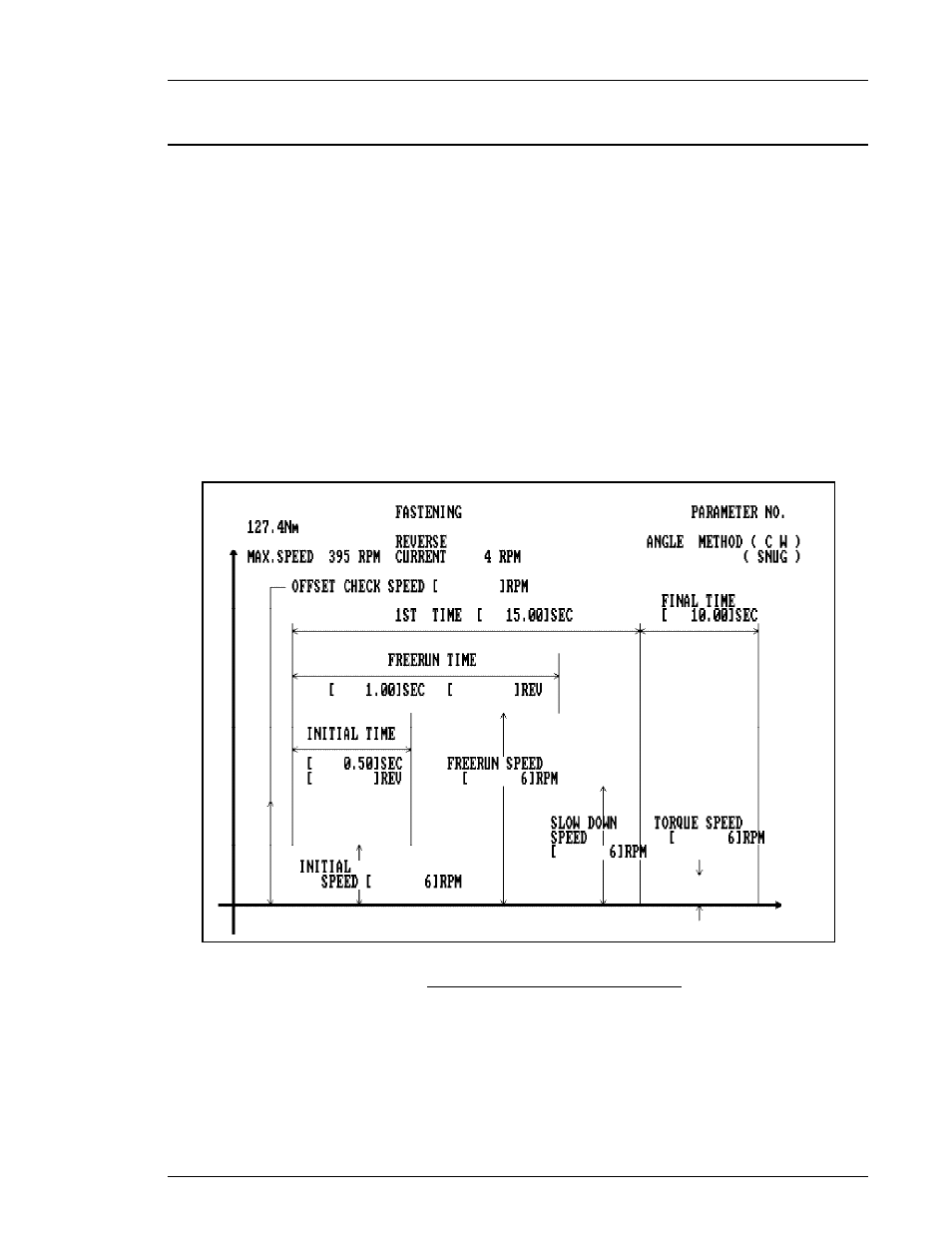

FIG. 7-1-4-1 set parameter [SPEED ]
4-2 INPUT SPEED PARAMETER DATA
4-2a. ENTer the numerical data required for the selected item and depress the
[↵]
key.
4-2b. The cursor will move to the next item to be entered until all items have been
entered.
