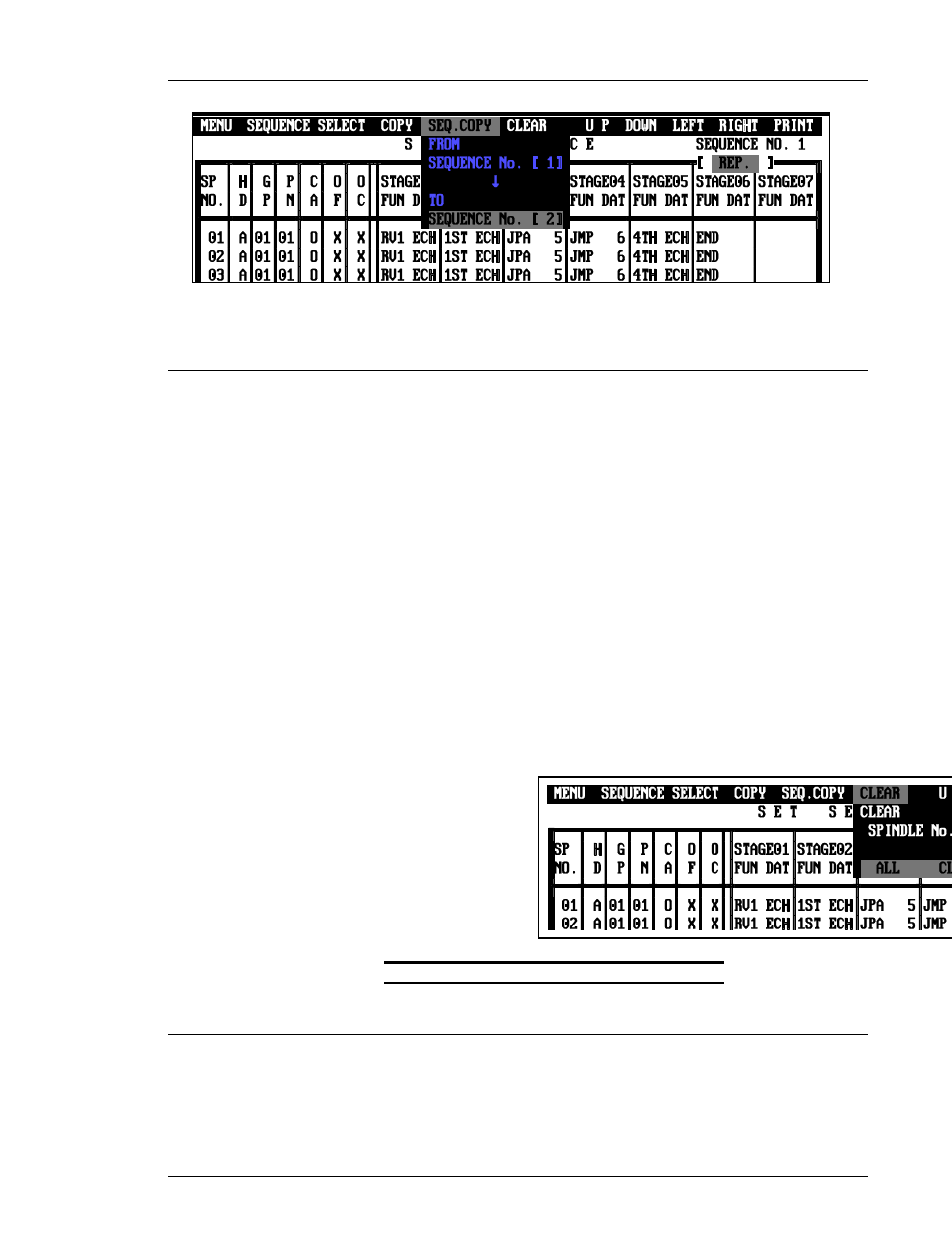

FIG. 7-5-8 set sequence, sequence copy function
7.5.9 sEQUENCE CLEAR FUNCTION
THe SEQUENCE CLEar function has two modes for removing the sequence. EAch spindle
may be deleted individually, or all spindles may be totally cleared.
9-1.
PLACe the RUN/PROGRAM key in the PROGRAM position and move the cursor on
the menu bar to [CLEAR] using the
[←] [→]
keys.
9-2. DEpress the
[↵]
key and the [CLEAR] pulldown window will appear with the cursor
flashing at the [CLEAR SPINDLE NO.] position.
9-3. IN order to clear an individual spindle from the sequence, use the numerical keys to
insert the spindle number which is to be cleared and depress the
[↵]
key. THe
question "DATA CHANGE OK?" will appear.
9-4. In order to clear all spindles totally from the sequence, use the
[↑] [↓]
keys to move
the cursor to [ALL CLEAR] and depress the
[↵]
key. THe question "DATA CHANGE
OK?" will appear.
9-5. USINg the
[←] [→]
keys, move the cursor to YES or NO and depress the
[↵]
key.
The screen will change appropriately to reflect the entered selection (Step 4 or 5).
FIG. 7-5-9 set sequence, sequence clear function
7.5.10 SCREEN SCROLLING AND PRINTOUT FUNCTIONS
10-1.
EAch fastening sequence (1-8) is capable of setting up the sequence for (24)
spindles with (32) fastening stages or steps for each spindle. DUe to the screen size,
only (7) stages for (18) spindles may be displayed at once. THErefore, scrolling is
necessary.
