4.13 Weigh Below
A weigh below hook is located at the bottom of the balance. To use this feature, remove power from the balance and
remove the protective cover underneath the balance. See illustration for location.
There is a flat, slotted, metal plate in the balance where a wire may be looped to and attached. The balance can be
supported by any convienent method, ring stand, lab jacks, etc...
Make sure that the balance is level and secure. Attach a wire to the slotted support in the balance. Apply power and
operate the balance. Attach items to be weighed to the wire just installed underneath the balance.

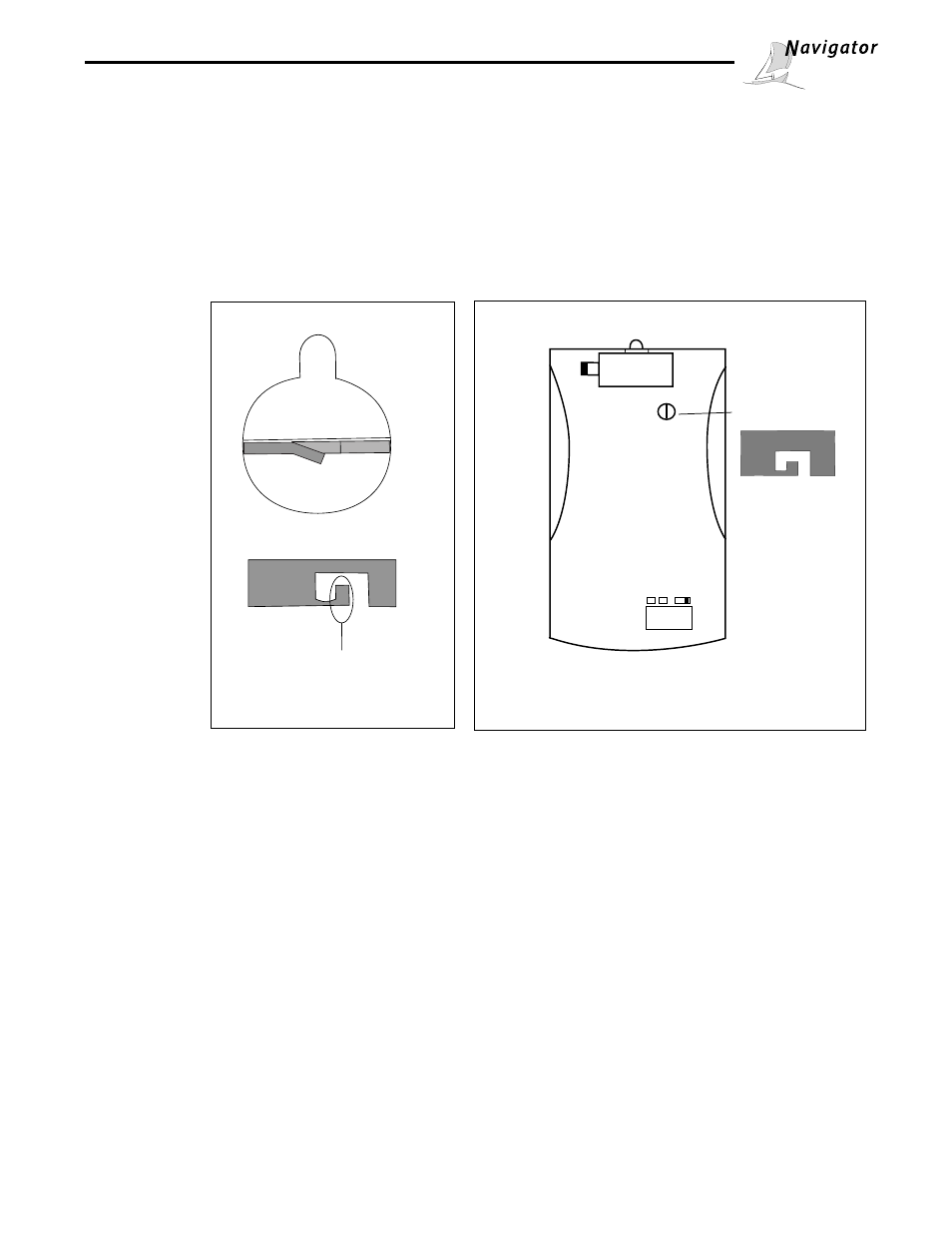

BOTTOM OF BALANCE
WEIGH BELOW
HOOK LOCATION
?
ACCESS AREA FOR WEIGH BELOW
EXTERNAL WIRE FOR WEIGH
BELOW MEASUREMENTS
WEIGH BELOW PLATE
ATTACHED TO LOAD CELL
