Installing the Auxiliary Display to the Coffee Grinder
1. Remove the (2) screws located on top of the grinder as shown in Figure 2.
2. Place the Auxillary Display with the attached Mounting Bracket behind the hinge on top of the
grinder.
3. Position the Bracket so that the mounting holes align with the holes on top of the grinder where
the screws were removed from.
4. Place the washers on the screws and install the two screws through the bracket, into the grinder.
Connecting the Auxiliary Display to the Scale
1. Attach the 9-Pin connector from the Auxillary Display cable to the connection at the rear of the
scale.
2. Determine the best location for the Auxiliary Display cable, so it does not get in the operator’s
way.
3. Remove the backing on the self-stick cable holders and place on the side of the grinder, so the
cable follows the route determined in the previous step.
OPERATION
1. Once the scale is installed, connect the power.
2. Turn the scale on and allow it to acclimate for about two hours.
3. Refer to the Navigator Instruction Manual for more detailed information.
HINGE
GRINDER
LID
REMOVE THIS
SCREW
REMOVE THIS
SCREW
BOTTOM OF DISPLAY MOUNT

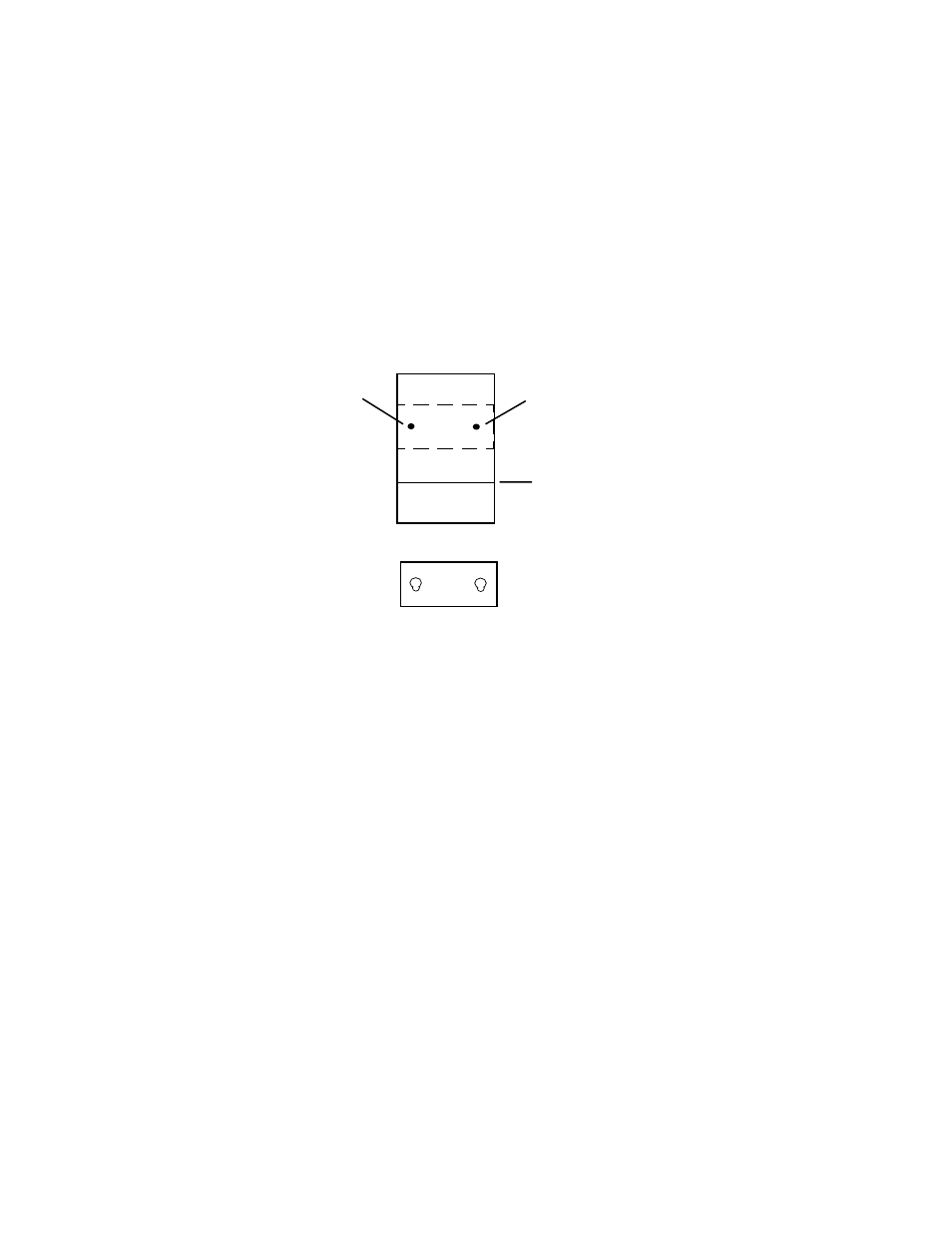

Figure 2. Auxillary Display Mounting Location.
