1
INSTALLATION INSTRUCTIONS FOR DUNKIN DONUTS
COFFEE-BY-THE-POUND SCALE
KIT NDF1A2-DAO
These instructions pertain to the Ohaus Navigator Scale, Part Number NDF1A2-2A0, with Ohaus
Auxillary Display Kit, Part Number 80250787 to be installed at Dunkin Donuts locations. The Scale is
placed either to the front, left or right of the coffee grinder, depending on the desired product flow. See
Figure 1 for location. The Auxillary Display is to be mounted on top of the grinder and secured with the
hardware supplied. Refer to Figure 2 for mounting location.
INSTALLATION
Unpacking and Checking the Standard Equipment
The following items should be included in the packaging. Please notify Ohaus Corporation if any item
is missing or damaged.
• This Instruction Sheet • Security Screw
• Navigator 6100g Scale • No. 6 Washers (2)
• Pan • Hex key
• Pan Support • Navigator Instruction Manual
• Windshield • Warranty Card
• AC Power Adapter • Auxiliary Display with Mounting Bracket
• 10-32 Nuts (4) • Self-stick Cable Holders (4)
• Lead/Wire Seal • 6-32 x 1 1/2 Screws (2)
• Sealing Plate
GRINDER
LID

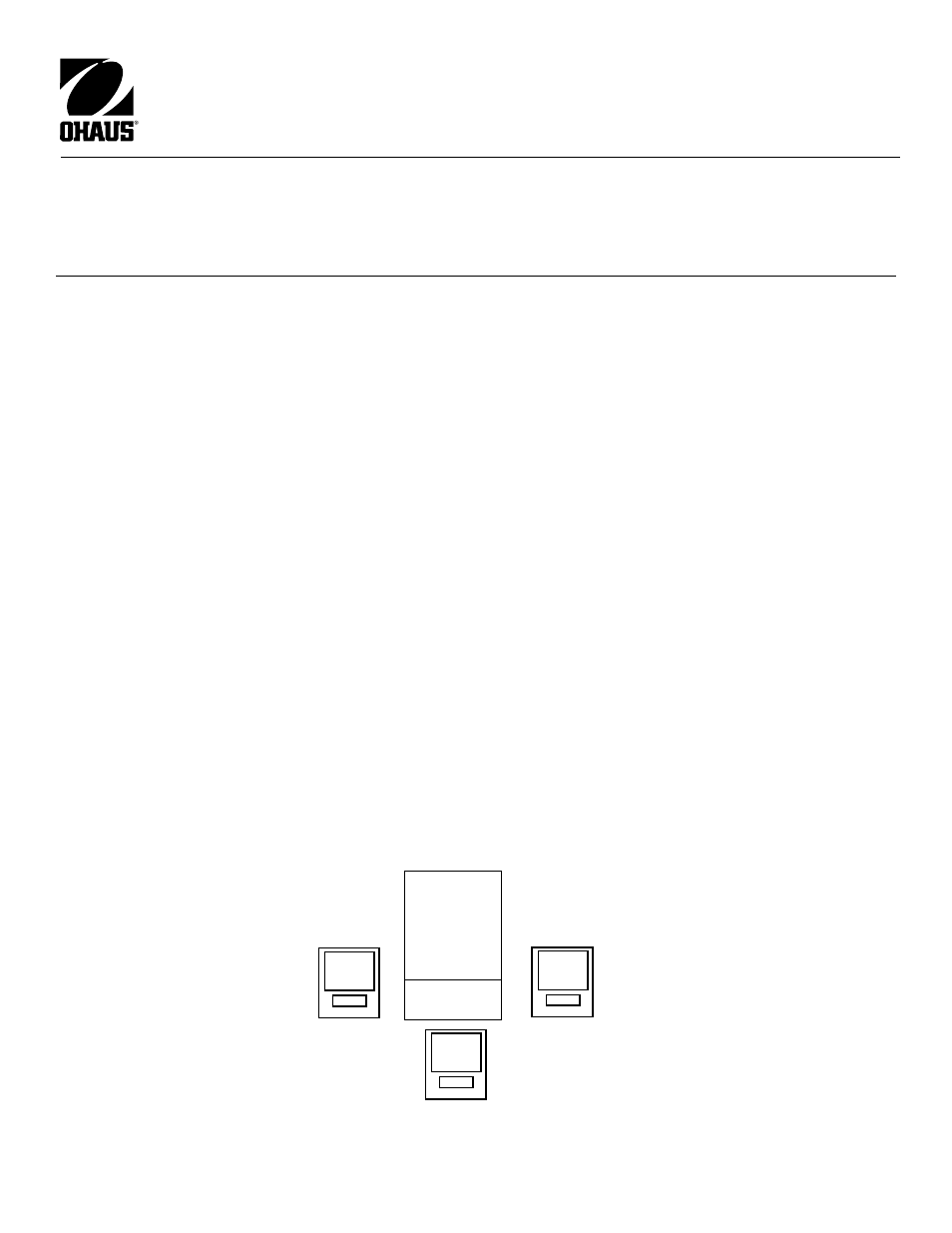

Figure 1. Possible Scale Locations.
Scale Scale
Scale
Ohaus Corporation Ohaus Corporation Ohaus Corporation Ohaus Corporation Ohaus Corporation
29 Hanover Road
Florham Park, NJ
07932-0900
Locating the Scale on the Counter
1. Place the Scale in the front of or on either side of the coffee grinder, whatever is convienent for
your operation. See Figure 1.
P/N 80250847
