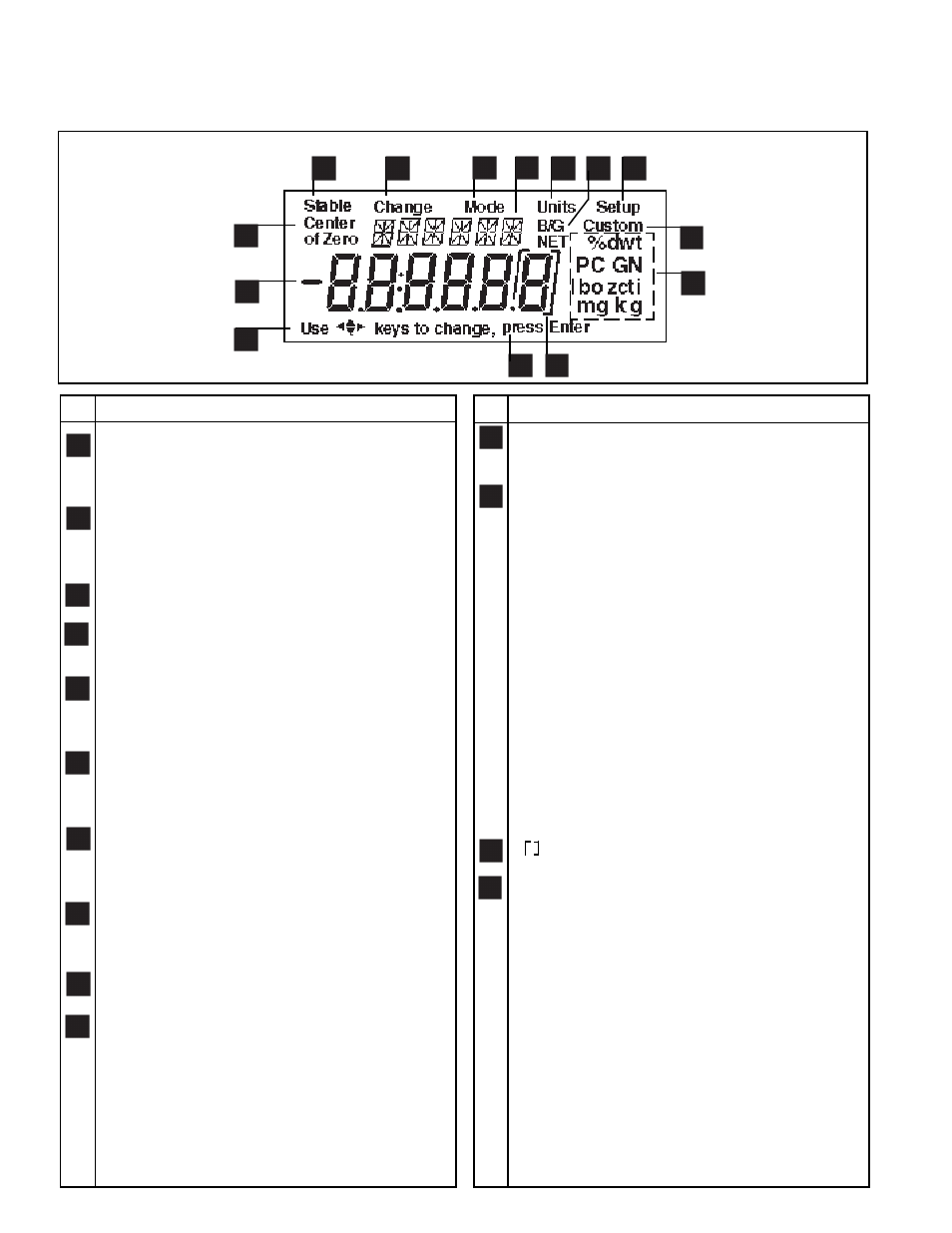

OVERVIEW OF DISPLAY INDICATORS
No. Function
1
2
3
5 6 7 8 9 10
12
13
4
14
No. Function
1 Use (Pointer Group) key to change - used to
prompt the user while navigating through the menu
system.
2 Standard (7) segment numeric characters. Six
characters are available and are used for display-
ing weight values.
3 Center of Zero - Not used
4 Stable - Indicates that the measured value has
become stable.
5 Change - Is displayed together with Mode, Units
or Setup signifying that a change to balance
settings is being performed.
6 Mode - Is displayed when the Mode button is
pressed. Allows the user to know what area of
the balance menu is being addressed.
(14) segment alpha numeric characters. Six
characters are used to present features and
functions.
Units - Is displayed when the Units button is
pressed. Allows the user to know what area of the
balance menu is being addressed.
B/G & NET - Not used
10 Setup - Is displayed when the Setup button is
pressed. Allows the user to know what area of the
balance menu is being addressed.
7
8
9
11 Custom - The user can input a factor to meet
unique unit measuring applications.
12 Symbols for weighing units and modes, include:
mg
- Milligrams
g - Grams
kg - Kilograms
dwt - Pennyweight
ct
- Carats
oz - Ounces
oz t - Ounces troy
GN
- Grain
t - Taels. Taels are available in three types;
Hong Kong, Singapore, and Taiwan
m - Mommes
lb - Pounds
N - Newton
ti - Tical
% - Percent weighing
PC - Parts counting
tola - tola (appears on 14 segment display)
13 - Not used
14 press Enter - Used as a prompt to the user to
press the Enter button. The menu item displayed
is accepted/selected.
