26

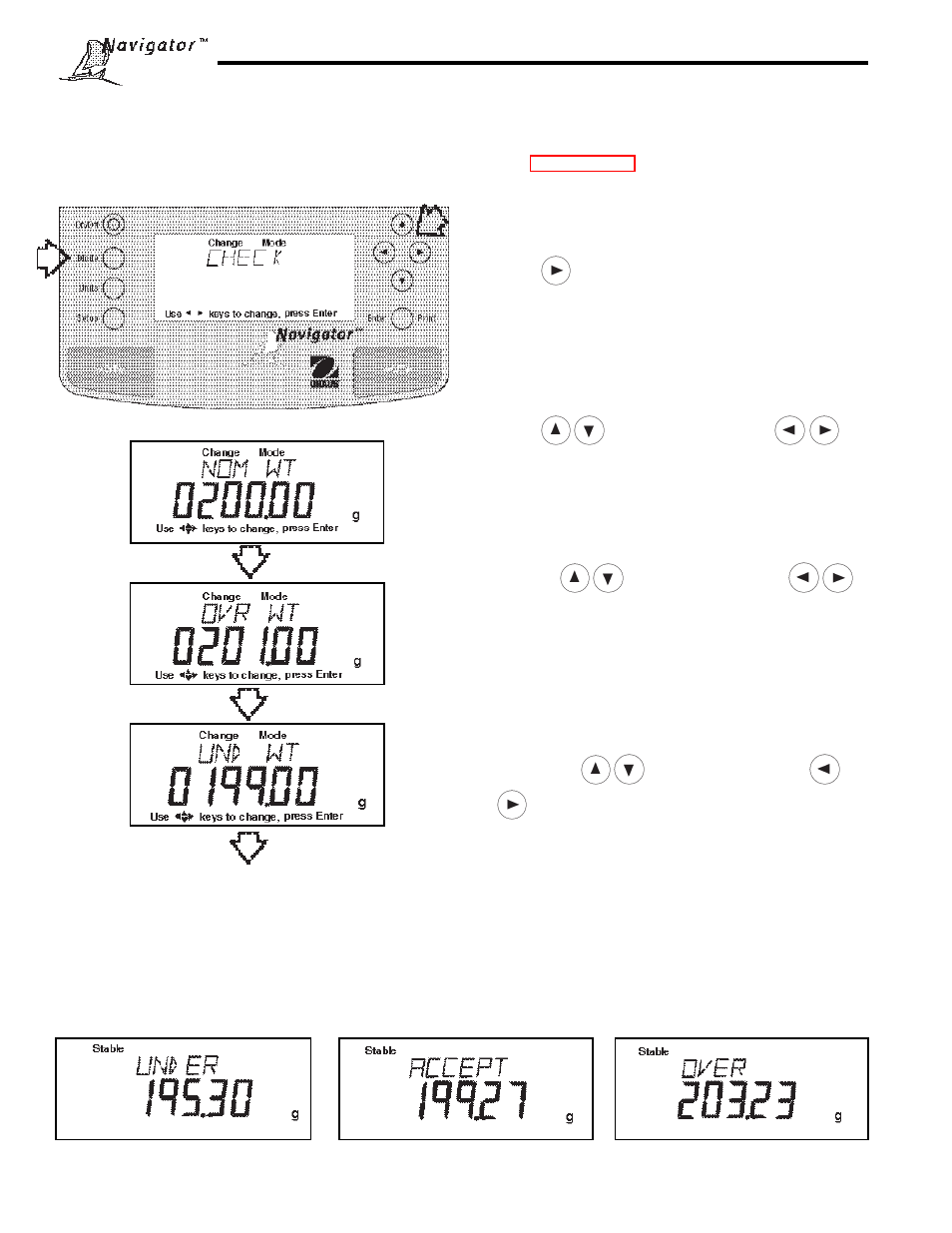

Procedure
• Press the Mode button.
• Press button until CHECK is displayed.
• Press Enter button to continue, NOM WT is dis -
played. The numerical display indicates 0000.00 with
the first digit flashing. The sample display indicates
0200.00g
• Press to change the digit and to
go to the next digit. Enter the desired nominal value.
• Press Enter button to continue. OVR WT is dis-
played. The numerical display indicates 0000.00 with
the first digit flashing. Enter the over weight value by
pressing to change the digit and
to go the next digit. The sample display indicates
0201.00g.
• Press Enter button to continue. UND WT is dis-
played. The numerical display indicates 0000.00 with
the first digit flashing. Enter the under weight value
by pressing to change the digit and
to go the next digit. The sample display indi-
cates 0199.00g.
• Press Enter button to continue.
• Place item to be checked on the balance pan.
ACCEPT is displayed when the item is within limits.
OVER and/or UNDER is displayed if the item is out of
the tolerance set in the limits.
3.8 Checkweighing
Checkweighing is enabled only when Check is turned ON in the Mode menu under Setup. Checkweighing mode
permits you to set a target nominal weight, and over and under weight limits. This type of weighing is used where
individual items must be checked against preset parameters. Refer to paragraph 4.7 to enable checkweighing.
UNDER is displayed for weights less
than or equal to the UND WT limit Typical Nominal Weight Display OVER is displayed for weights greater
than or equal to the OVR WT limit
NOTE: Samples shown below are for a 200g nominal
setting. The tolerances were set for 1g over and under.
