Parallel port pin-outs, Twinax adapter port unterminated pin-outs – I-Data 5250 ALLY User Manual
Page 28
AGILE 5250 ALLY Users Guide and Reference
Page 1-6
14.
Auto Feed
15.
Fault
16.
Init
17.
Select In
18.
Ground
19.
Ground
20.
Ground
21.
Ground
22.
Ground
23.
Ground
24.
Ground
25.
Ground
10.
Printer
Acknowledge
11.
Busy
12.
Paper Error
13.
Select
1. Strobe
2. Data 1
3. Data 2
4. Data 3
5. Data 4
6. Data 5
7. Data 6
8. Data 7
9. Data 8
AGILE P/N
Description
830650-1
Parallel Output (DB-25 S/Centronics 36)
830680-1
Parallel Alternate Host (DB-25 P/DB-25 P)

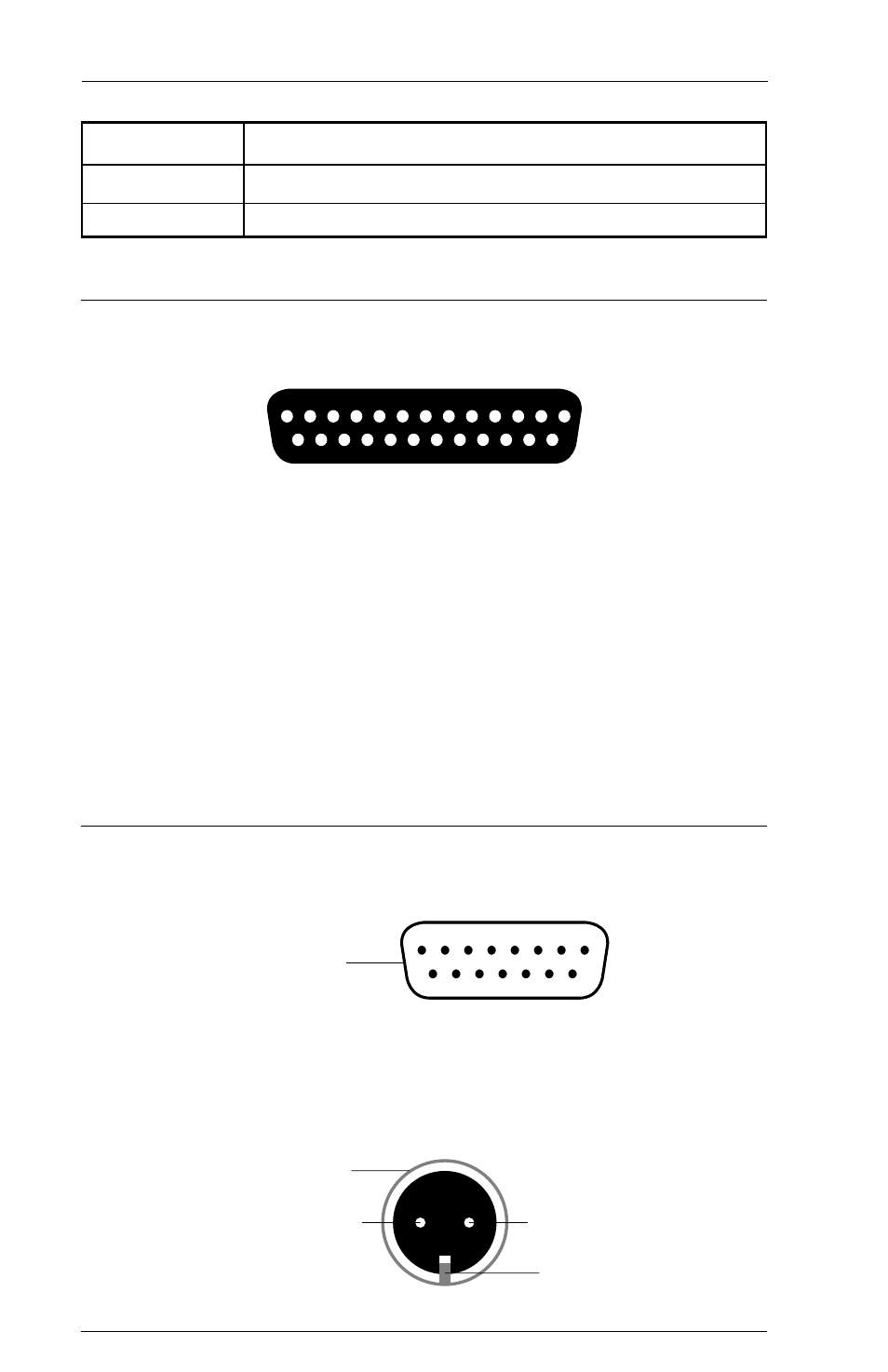

Parallel Port Pin-Outs
The pin-outs for the parallel ports are as follows:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Twinax Adapter Port Unterminated Pin-Outs
The twinax adapter port pin-outs are as follows:
8
7
6
5
4
3
2
1
15
14
13
12
11
10
9
Shield
(Ground)
7. Phase A
8. Phase B
The twinax port pin-outs are as follows:
A
B
Key
Shield
(Ground)
