HP B180L User Manual
Page 178
164
Changing Your Workstation’s Hardware Configuration
Installing the Optional Fast Wide Differential SCSI Controller
3
Connect the FWD SCSI controller to the CPU board by pressing firmly on the
connector area and near the standoffs to make sure that the FWD SCSI controller
is fully seated and that the standoffs are fully engaged with the FWD SCSI con-
troller.
4
Remove the storage tray cover by pressing in the two cover locking tabs then lift-
ing the front end of the cover and sliding it forward off of the pins in the rear, as
shown in Figure 65.

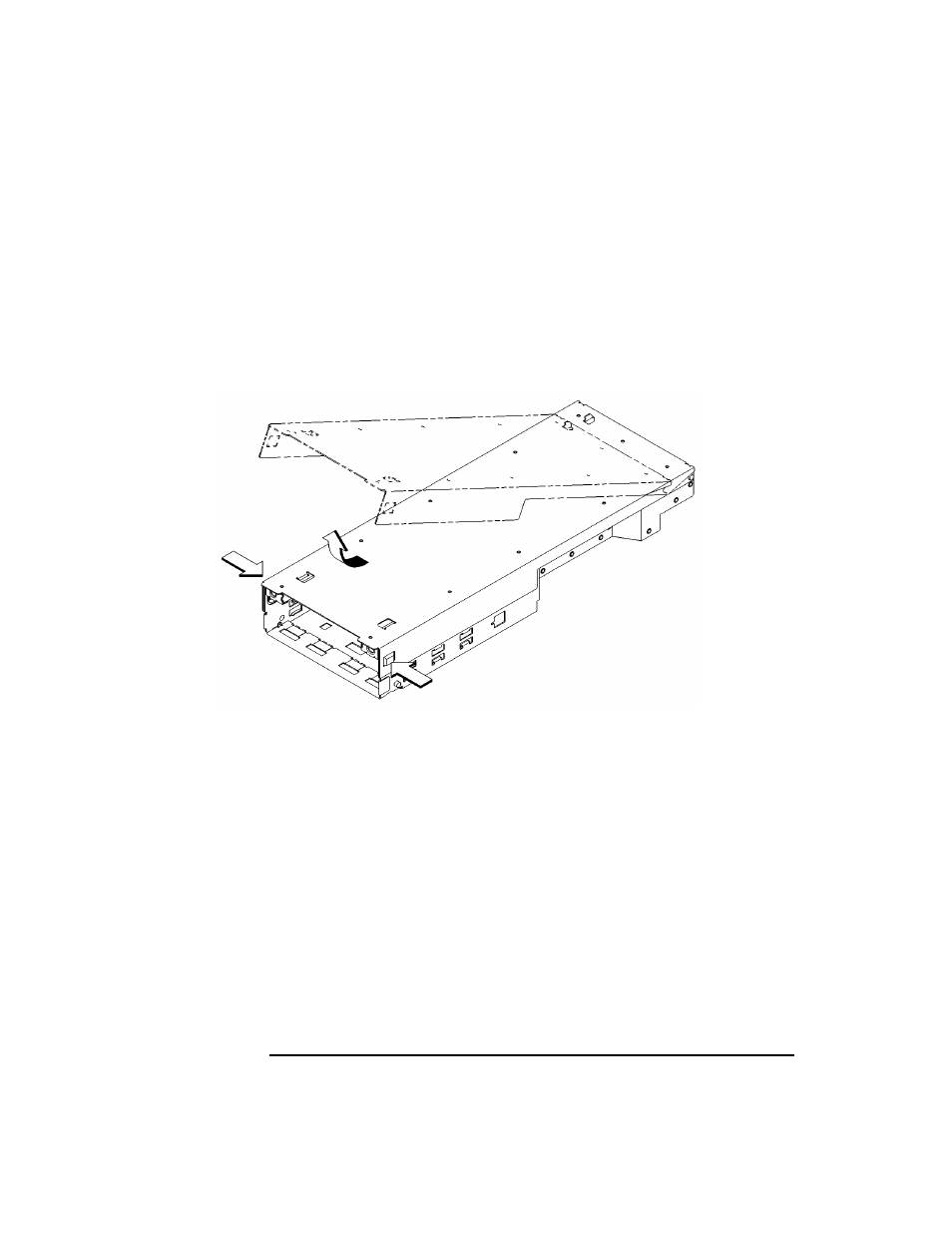

Figure 65
Removing the Storage Tray Cover
