Changing Your Workstation’s Hardware Configuration
Installing Storage Devices
5
Reconnect the floppy, SE SCSI, power, CD-ROM audio, and FW SCSI cables as
shown in Figure 41. Reconnect rear-panel SCSI connector terminators, if neces-
sary.
When connecting the floppy cable to the system board, use the following proce-
dure:
a
Lift the locking ring on the connector to the up, or unlocked, position.
b
While holding the locking ring in the unlocked position, insert the cable into
the connector until the blue line is even with the locking ring.
c
Press down on the locking ring evenly on both ends until it snaps into the
down, or locked, position.

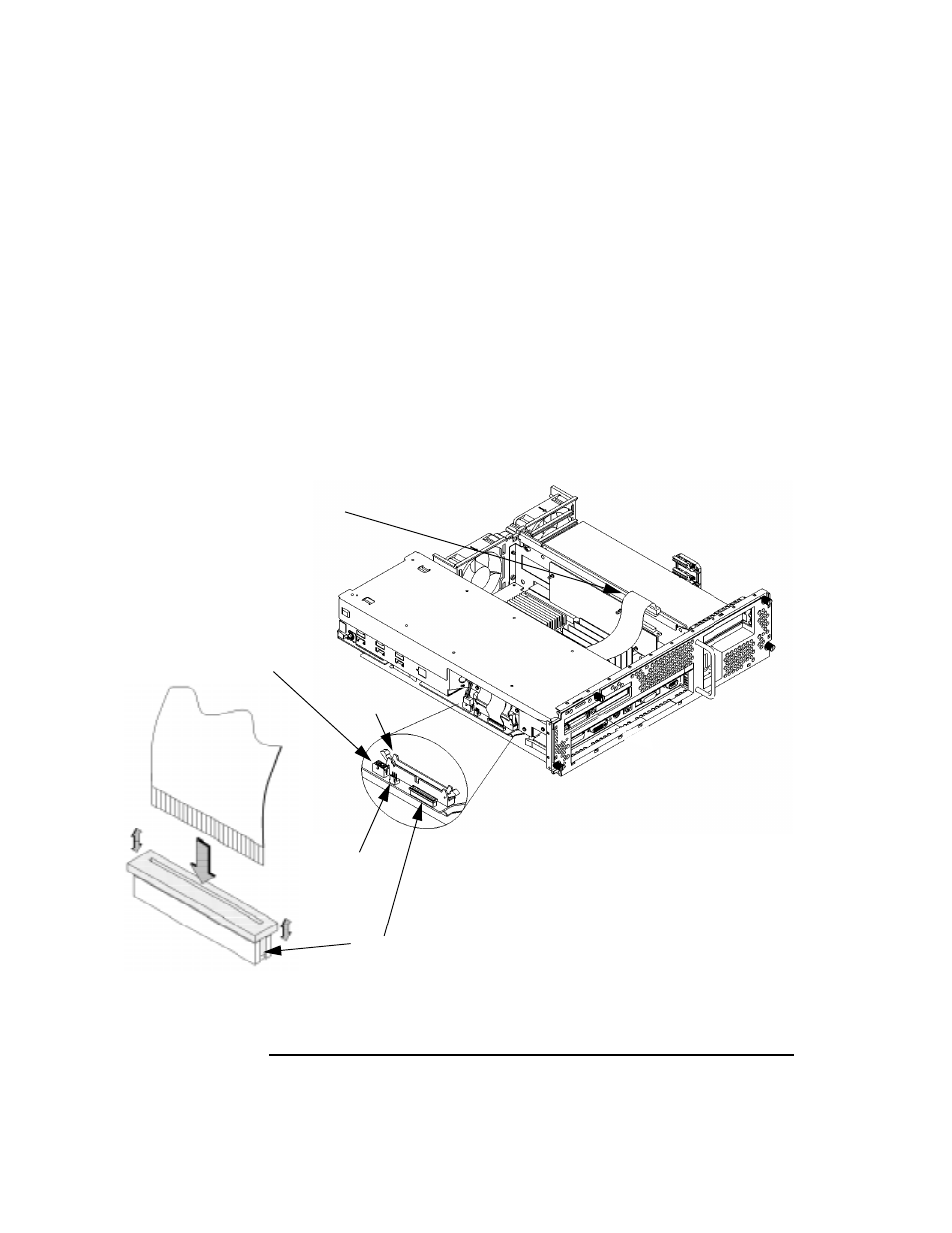

Figure 41
Connecting the Storage Tray Cables
Floppy Connector
SESCSI
Storage Tray
CD Audio
Power
FWSCSI
