159
Changing Your Workstation’s Hardware Configuration
Replacing the Battery
8 Align the pins on the back panel of the main tray with the holes on the rear of the
storage tray and slide the storage tray onto the pins, as shown in Figure 61.

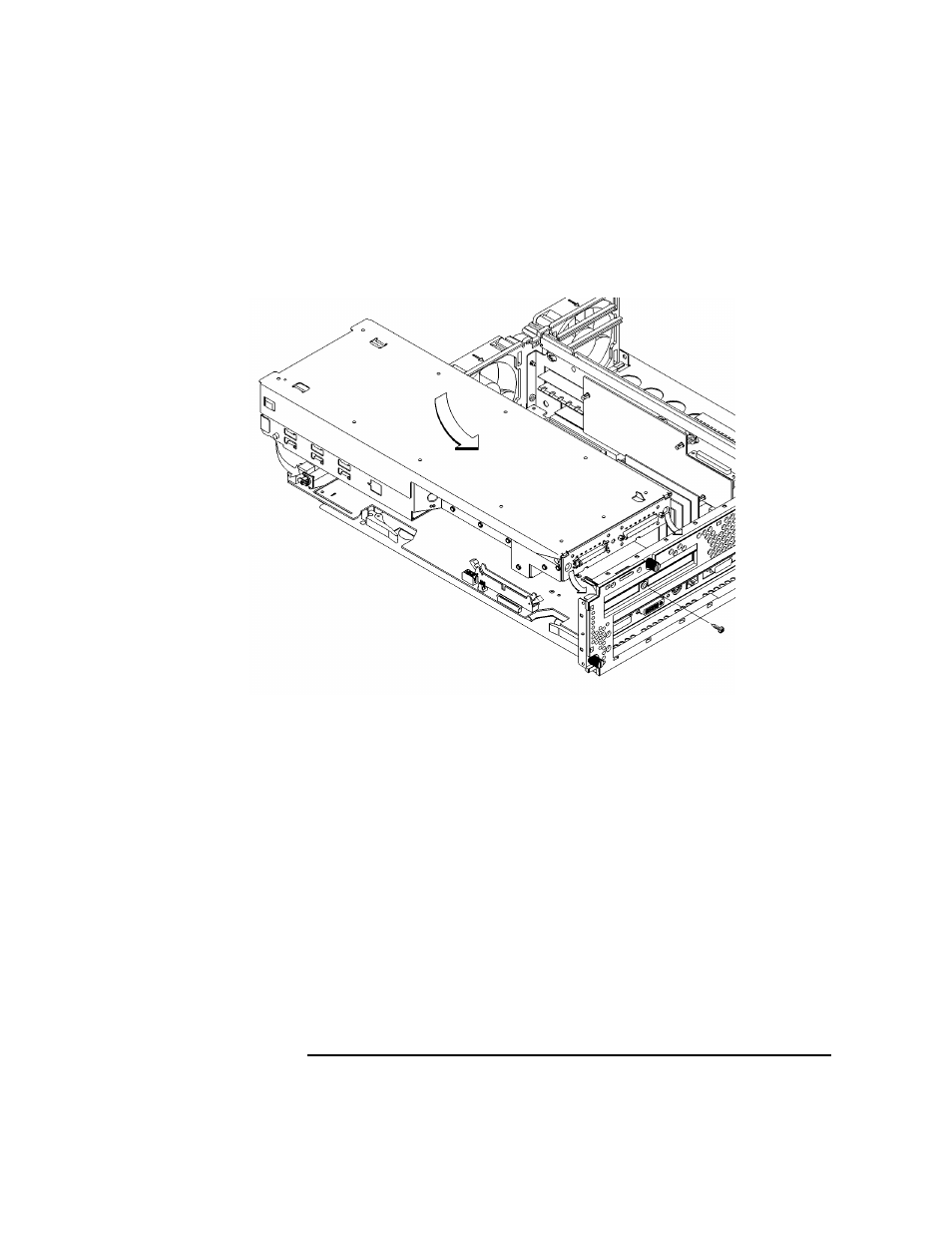

Figure 61 Installing the Storage Tray Assembly
9 Lower the front of the storage tray and move it slightly forward or backward to
align the pins on its sides with the slots on the main tray, as shown in Figure 61.
10 Slide the storage tray towards the rear of the main tray until the pins are fully seat-
ed in the main tray slots, as shown in Figure 61.
11 Replace and tighten the storage tray retaining screw, as shown in Figure 61.
