ARENA / RANGER USER GUIDE
EN2Z-0906GE51 R0708 16

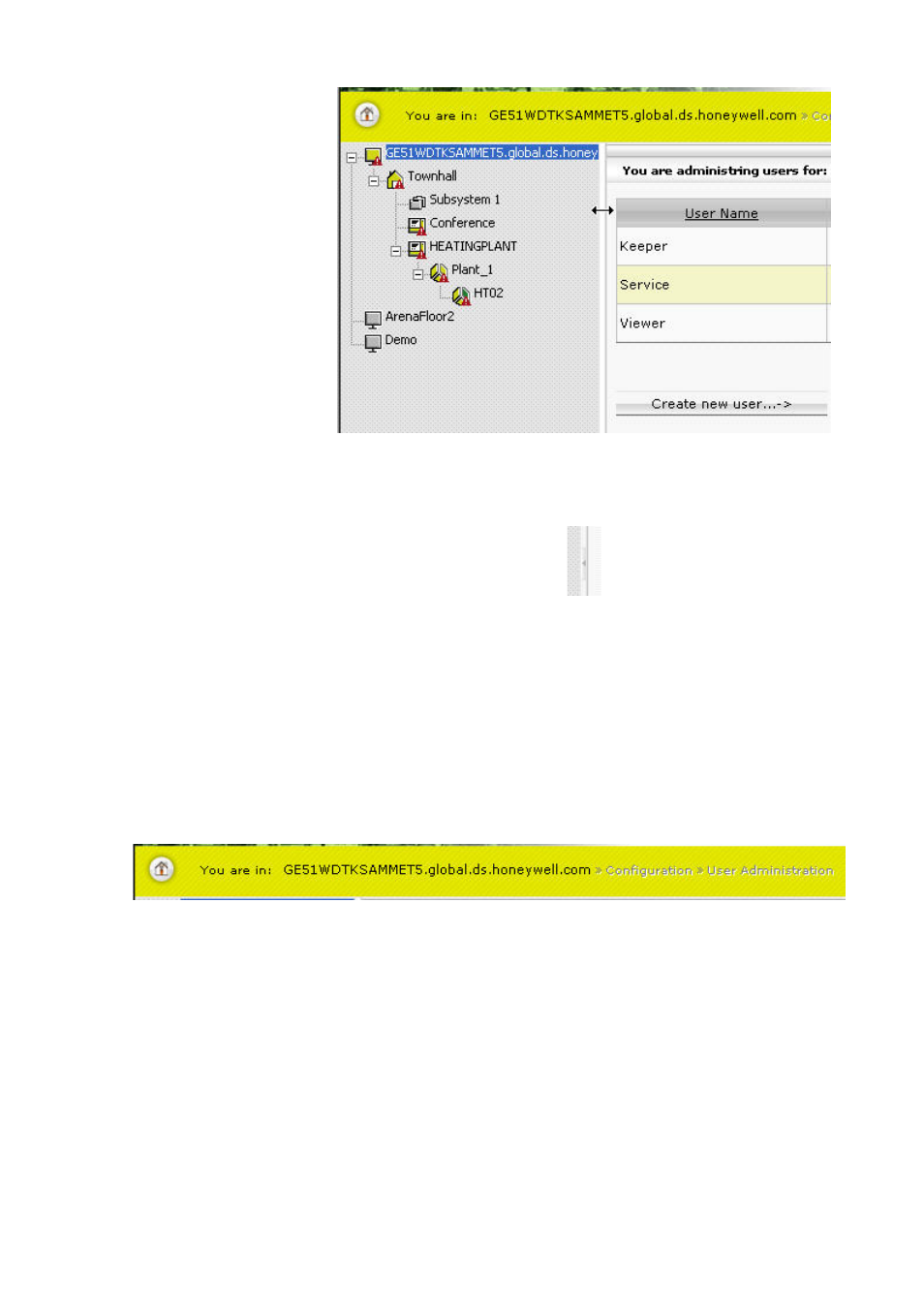

Collapsing/Expanding the Site Pane
The site pane can be collapsed (hidden) by clicking the arrow bar in the middle of
the separator. The hidden site pane can be expanded (made visible) by clicking on
the arrow bar on the left-handed separator in the main window.
Tree Navigation
You can navigate through the tree by clicking on tree items, or by clicking the plus-
/minus icons at the tree items.
Viewing and Editing Information
To view or edit data and properties of an item, select an item by clicking on the item
in the tree, or by selecting the menu in the Configuration menu.
In the toolbar, the path of the selected item is displayed
Example:
You are in: GE51WDTKSAMMET.global.ds.honeywell.com » Configuration » User
Administration.
On the Information and Editing pane, the corresponding data and properties of the
selected item/menu are displayed.
Example: Datapoints display in the Information and Editing pane for a
selected (PANTHER) controller.
