Drawing Tools Pane

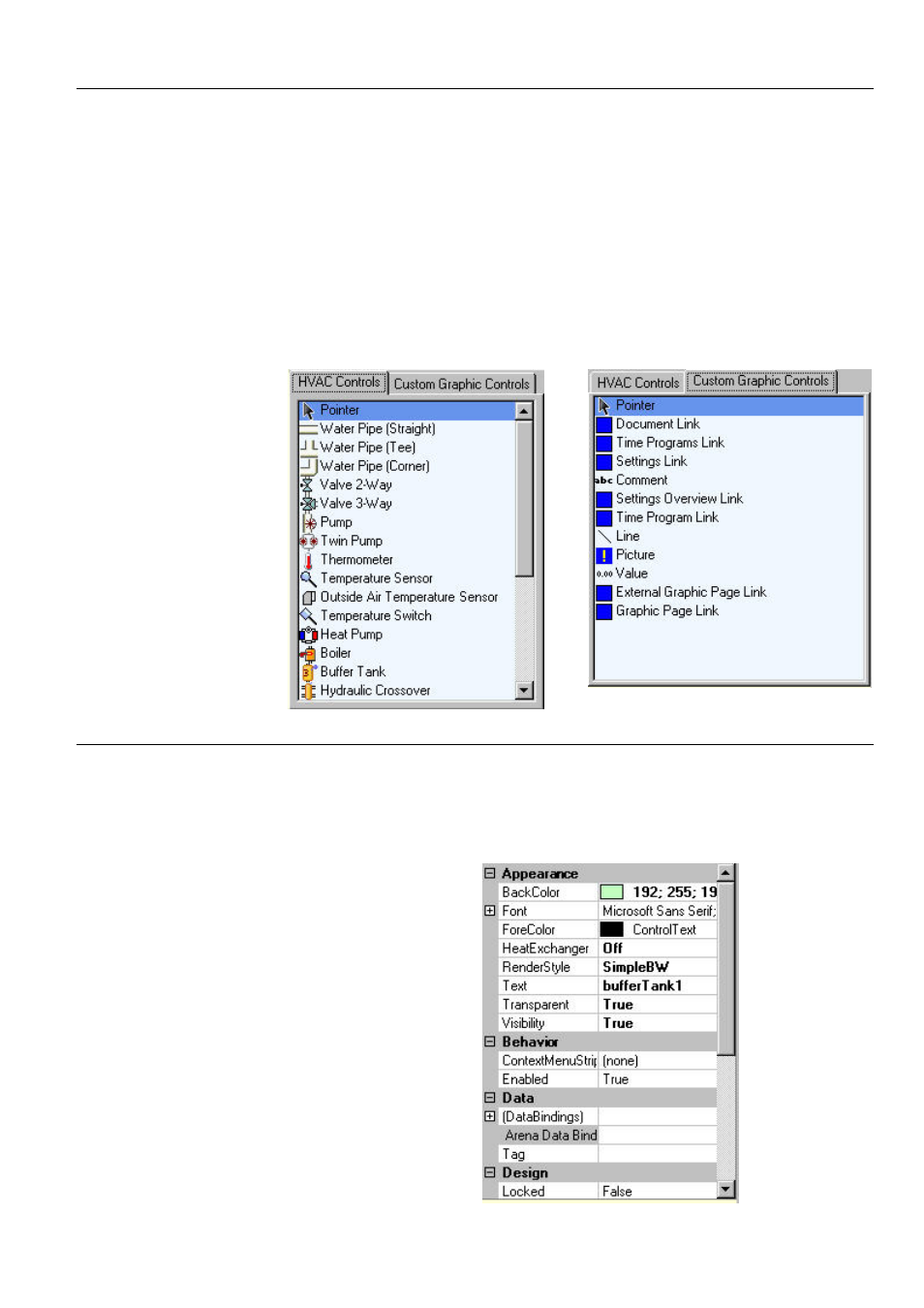

The Drawing Tools Pane provides the drawing elements for creating a graphic. The
following two basic drawing element types are provided in libraries:
• HVAC
Controls
Provides typical application components such as boiler, heat pump, water pipe,
etc.
• Custom Graphic Controls
Provides various drawing elements for:
– Creating display areas for datapoint and setting values
– Linking to time programs, settings, documents (e.g. txt, xls), pictures, and
other graphic pages
– Adding comments and simple lines
The drawing elements will be added to the drawing space by simple drag&drop.
Properties Pane
The Properties pane shows the multiple properties of a selected drawing element in
the drawing space and allows editing the properties as desired. Editing can be done
by simple clicking which shows the settings (values and options) available for a
property.
