START ARENA

1. In

Windows

Start

menu, click Programs, then click Centraline and ARENA2

or, click the CL Arena 2.0 icon on the desktop.

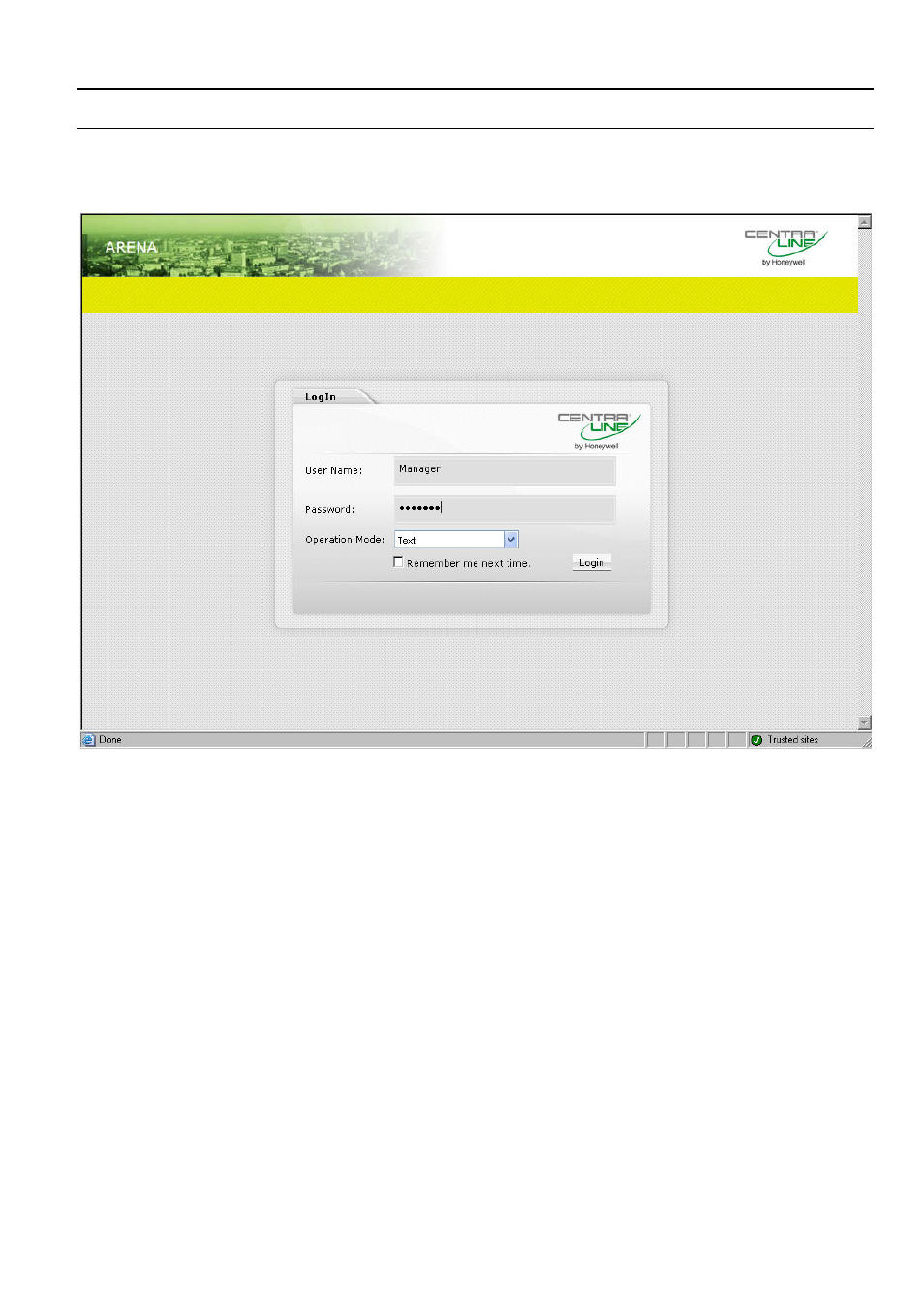

ARENA is started and the ARENA Login screen is displayed.


2. Enter

your

User Name

and your Password.

3. In

Operation Mode

, select:

Text

, if you want to operate ARENA in the common text-based way (Site tree

visible).

In the Text operation mode, the default display shows the following:

– Green banner with the CentraLine logo
– Open

tree

– Alarm

list

Graphic

, if you want to operate ARENA by navigation in referencing and

animated graphics imported via ARENA Editor.

In the Graphic operation mode, the default display shows the following:

– Start

graphic

– Default tabs: Graphic, Trends, Alarms

The green banner with the CentraLine logo is permanently invisible.

The tree is invisible and can be displayed by clicking the arrow bar on the
left-handed separator of the main window.

4. Click

Login

button. ARENA is started and the ARENA main window is

displayed.
