ARENA / RANGER USER GUIDE
EN2Z-0906GE51 R0708 150
• Linking to time programs, settings, documents (e.g. txt, xls), pictures, and other
graphic pages
• Adding comments and simple lines
The procedures use one of the following pre-defined drawing elements provided in
the Drawing Tools pane:
• HVAC Controls
• Custom Graphic Controls
The drawing elements will be added to the drawing space by simple drag&rop.
Draw Application Schematic
The following procedure describes how to draw an application schematic by adding
various drawing elements such as boilers, heat pumps, etc.
1. In the Drawing Tools Pane, click the HVAC Controls tab.
2. Drag a drawing element, for example, a boiler, or a heat pump and drag it to the
drawing space.

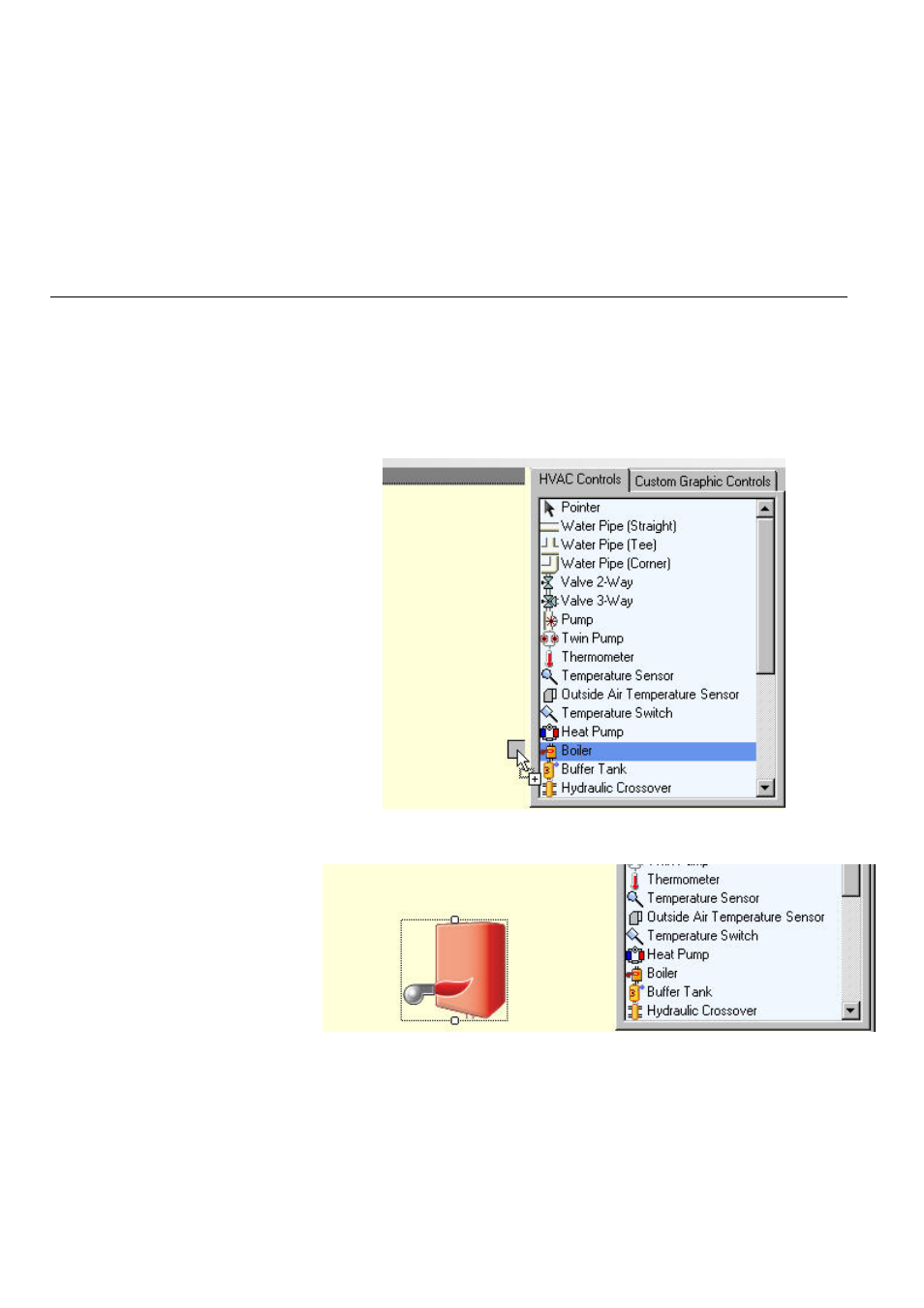

Fig. 36. Step 1: Dragging Boiler
Fig. 37. Step 2: Dropping Boiler
3. Build the graphic by doing the following:
a. add drawing elements to the drawing space
b. position drawing elements at desired locations by simply moving, entering
values under Layout on the Properties pane, or using Align and Order
toolbar functions
c. resize selected drawing elements using the mouse or entering values under
Layout on the Properties pane
