ARENA / RANGER USER GUIDE
EN2Z-0906GE51 R0708 122

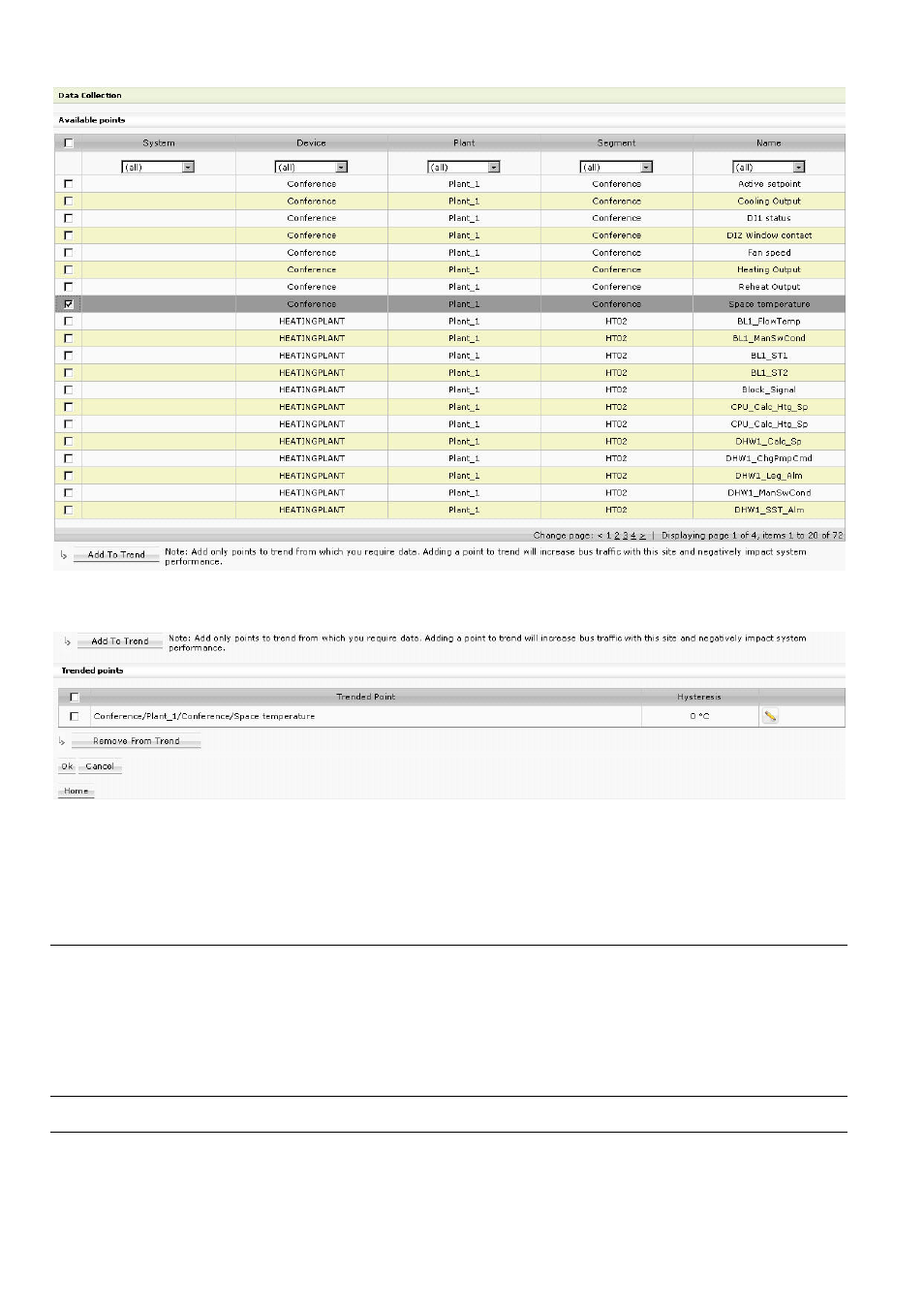

3. Click Add To Trend button.
The selected datapoint(s) are added to the Trended Points list below.
4. To remove datapoints from the trend list, click Remove From Trend button.
5. To confirm the Trended Points selection, click the OK button.
6. Click Home button to leave the Trending configuration menu.
7. Continue with analyzing trend data as described in the “Analyze Trend Data”
section.
Live Trend
For Live trends, the datapoints are set in trend at the same time when analyzing the
trend data. Please refer to the “Analyze Trend Data” section.
NOTE: Live trend is only possible on site level and on levels below, and ARENA
must be connected.
Analyze Trend Data
Analyzing trend data includes the following steps:
• Select datapoints for display
• Configure display
