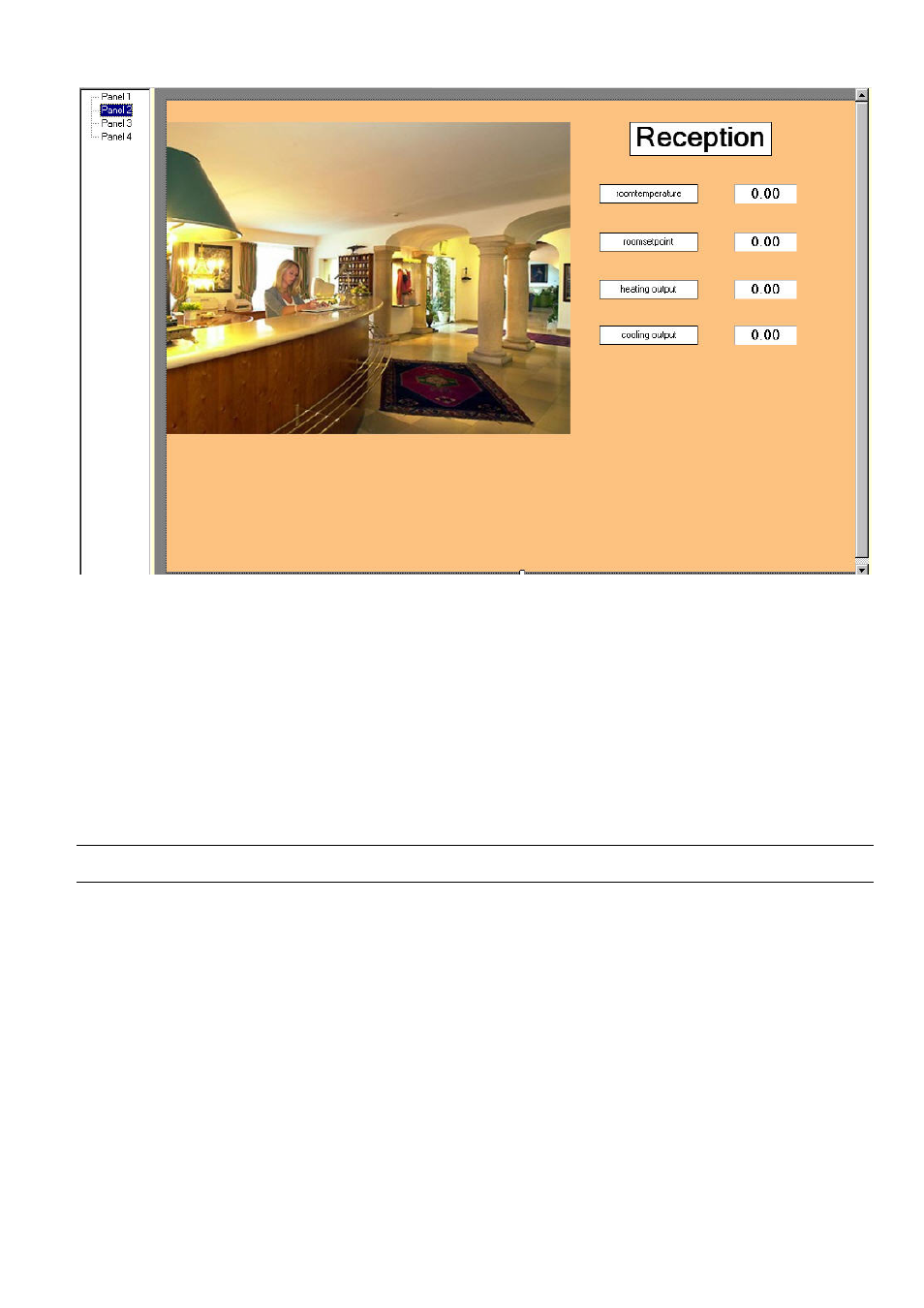

Imported image usage
There are two types of intelligent drawing elements provided by ARENA Editor.
These are:
• HVAC Controls
Provides typical application components such as boiler, heat pump, water pipe,
etc.
• Custom Graphic Controls
Provides various drawing elements for:
– Creating display fields for datapoint and setting values
– Linking to time programs, settings, documents (e.g. txt, xls), pictures, and
other graphic pages
– Adding comments and simple lines
ARENA Editor Environment
After starting ARENA Editor, the Main Window is displayed providing the tools and
functions read in the following figure.
