Ch 3: Installing Optional Devices
Hitachi PC VisionBase 8450H/R Server 91

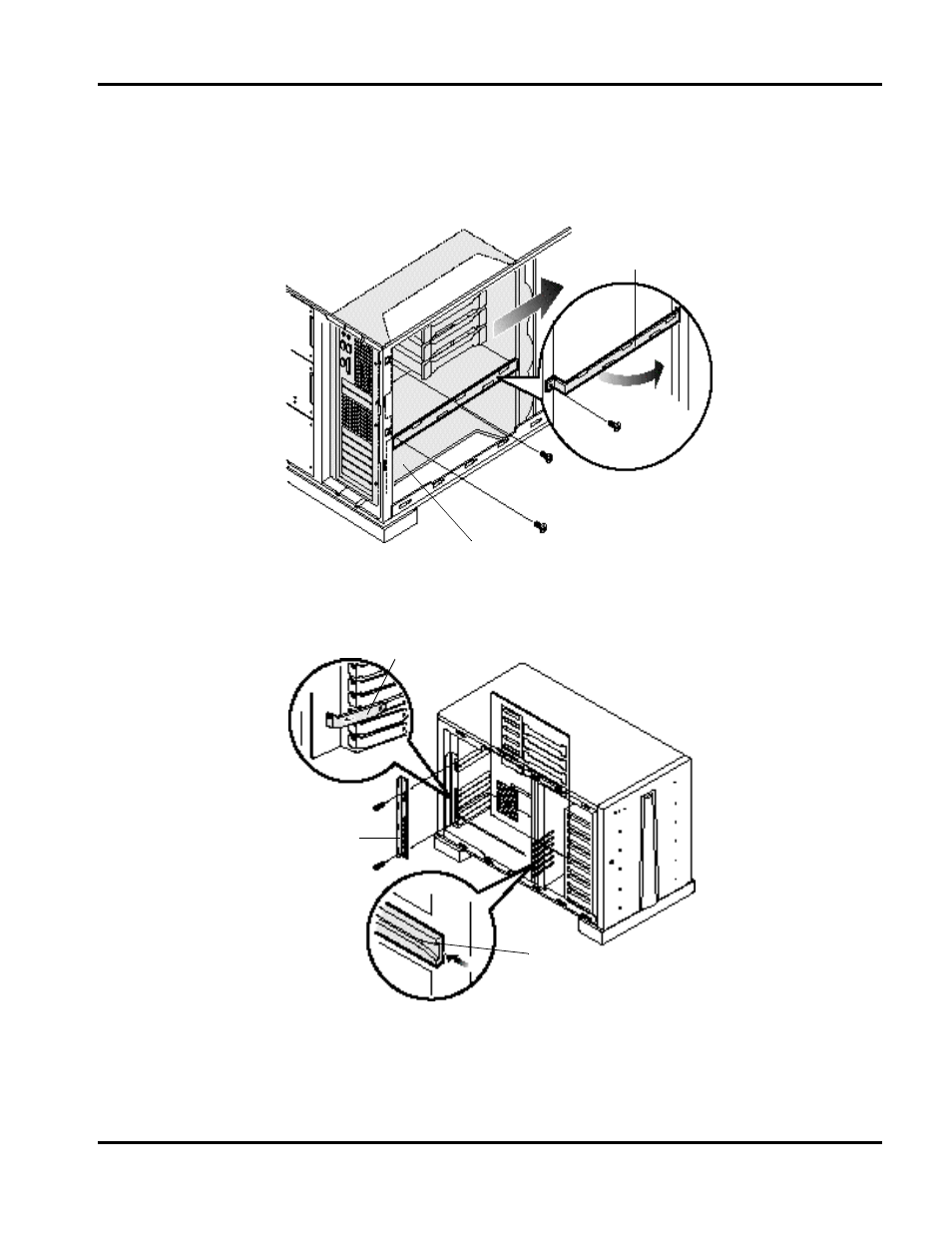

Installing PCI boards
1. Remove two mounting screws from the brace at the back of the system equipment, then pull the master board
bracket to the front until it stops.
2. Remove the mounting screws from the memory bracket, then extract the bracket by pulling it to the front.
3. Remove two mounting screws, then remove the slot bracket and slot cover.
NOTE: Store the removed slot covers properly.
4. Aligning the connector side with the slot and the left end of the board with the slot guide, and holding both ends
of the board, push in the board.
NOTE: You need not align a short size board with the slot guide.
Memory bracket
Master board bracket
1
1
2
Slot bracket
Slot cover
Slot guide
