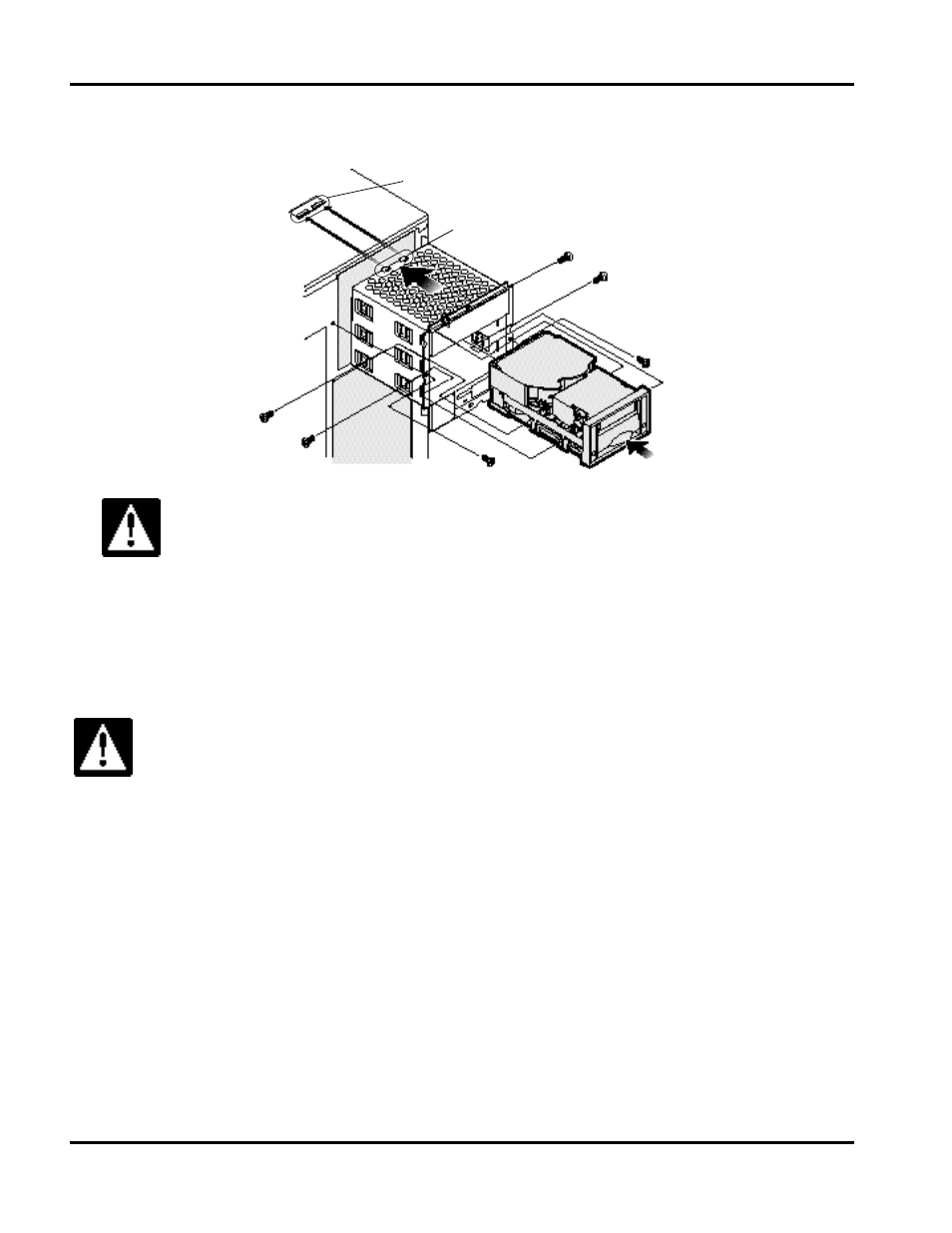

6. Install the device bracket onto the system equipment, then fix it with two mounting screws. While installing,
insert the claw of the device bracket into the guide hole on the system equipment.
The next step is connecting cables. See “Connecting Cables” on page 78.
Connecting Cables
Connect power cables and internal SCSI cables with SCSI devices. See “Installing Locations for SCSI Devices” on
page 62 for how internal SCSI cables should be interconnected.
Use extreme care to protect internal hard disks from shock (hitting or falling on hard material).
Being precision devices, internal hard disks are very susceptible to shock.
Avoid bending connector pins when connecting cables.
Guide hole
Claw
