Ch 2: Installation and Use of Devices
12 Hitachi PC VisionBase 8450H/R Server

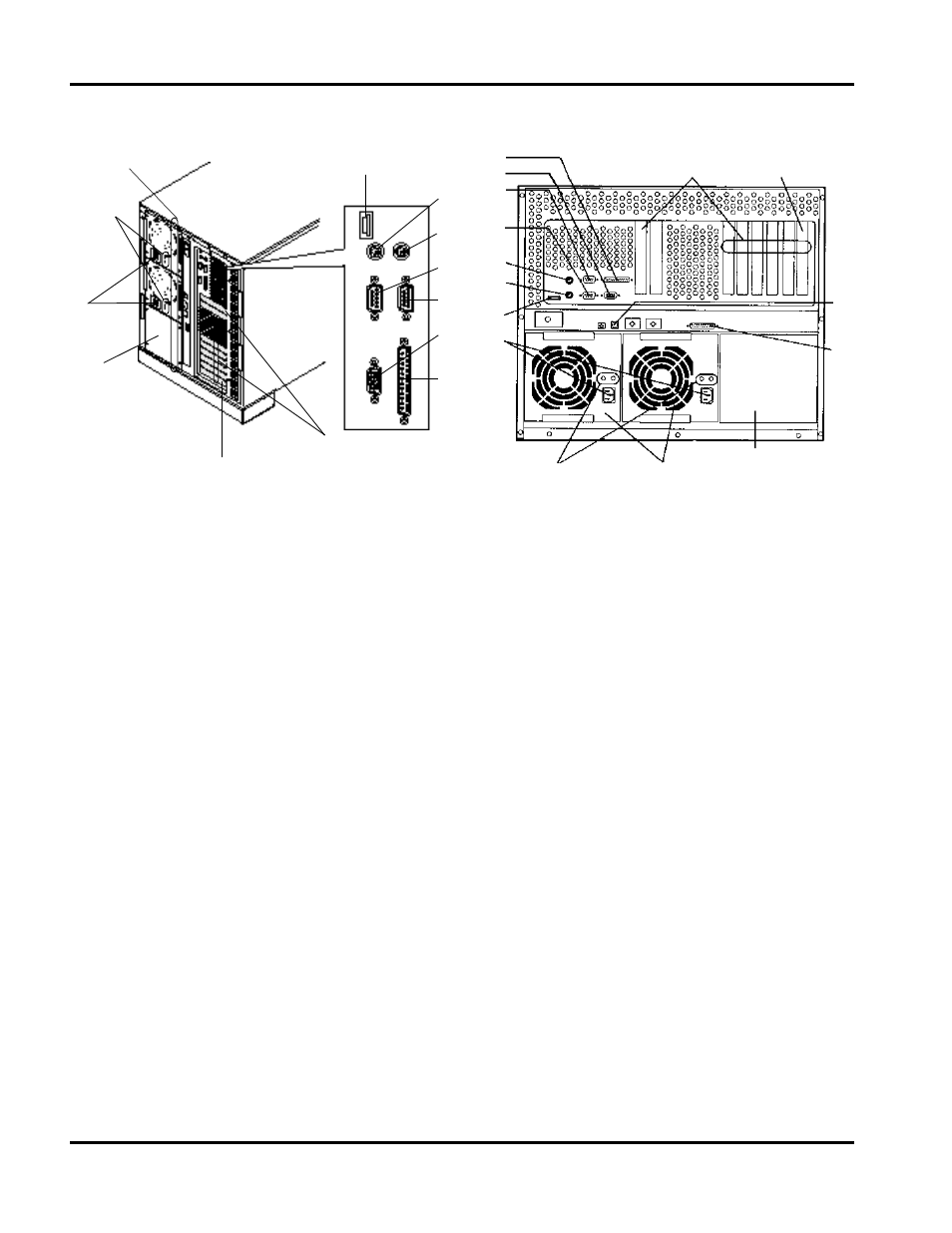

Rear View
1. USB connector
Not to be used.
NOTE: Hitachi PC VisionBase 8450H/R Server does not support USB-compliant devices.
2. Keyboard interface connector
Used to connect a keyboard.
3. Mouse interface connector
Used to connect a mouse.
4. Serial interface connector (COM2)
Used to connect a device that uses a serial interface such as a modem.
5. Serial interface connector (COM1)
Used to connect a device that uses a serial interface such as a modem.
6. Display interface connector
Used to connect a display.
7. Parallel interface connector
Used to connect a device that uses a parallel interface such as a printer.
8. Expansion slots (PCI) 1 to 7
Used to connect PCI-specification boards (up to 7). Slot numbers are 1, 2, 3, etc. from the top.
1
9. Expansion slot (ISA) 1
Used to install an ISA-specification board.
1
10. Power connector
Used to connect a power cord.
1 Expansion slot (PCI) 7 and expansion slot (ISA) 1 are shared. Either a PCI-specification board or an ISA-specification board can be installed
at a time.
1
2
3
4
5
6
7
9
8
10
11
12
1
2
3
4
5
6
7
8 9
15
14
13
12 11
10
VB 8450H VB 8450R
13
