Ch 3: Installing Optional Devices
Hitachi PC VisionBase 8450H/R Server
37
3: Installing Optional Devices
This chapter explains how to install internal option devices to the system equipment.
Installing Locations for Option Devices
This section explains where in the system equipment you can install what internal devices.
Expansion Slots
The Hitachi PC VisionBase 8450H/R Server

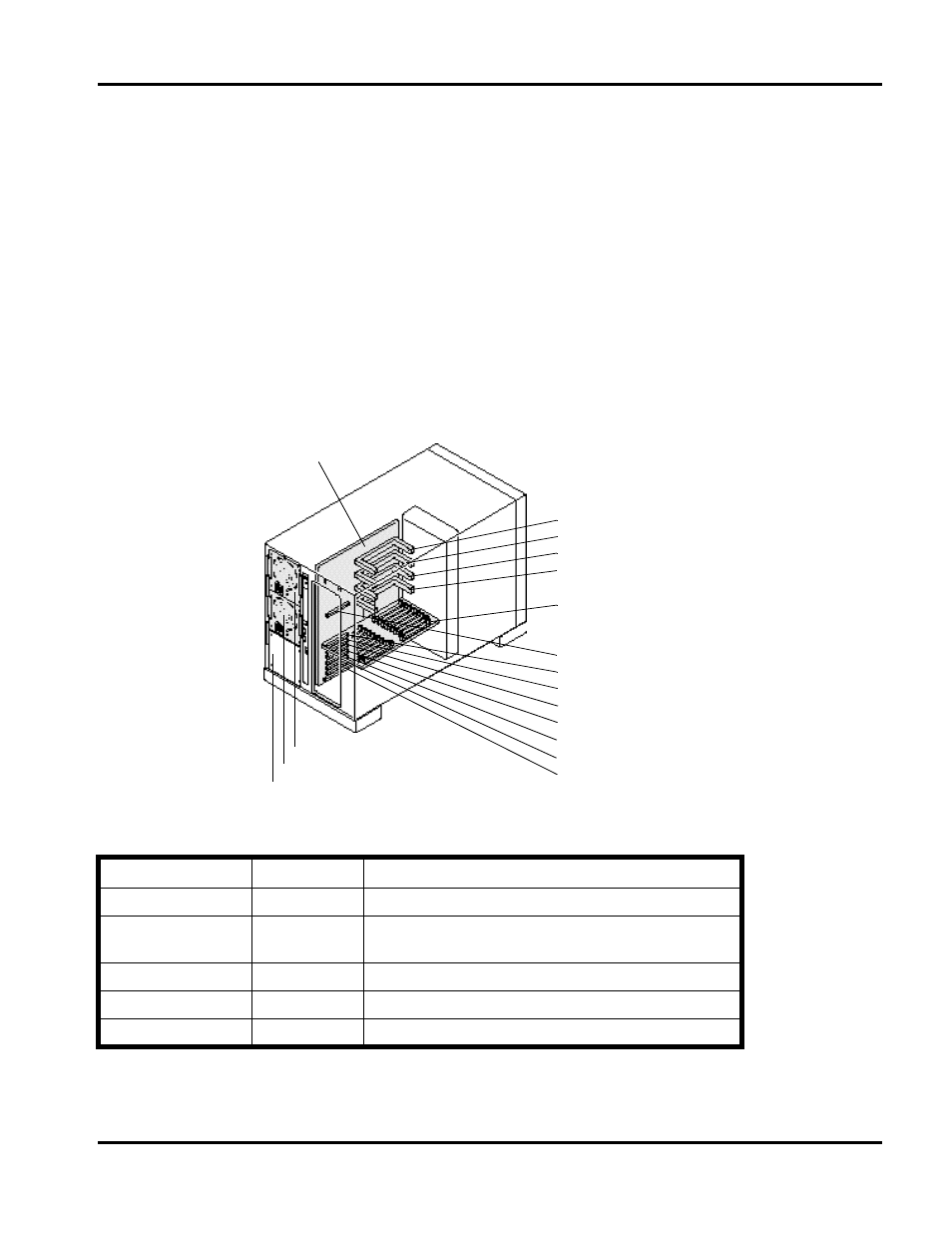

has expansion slots as shown in the following diagram:
The following table shows the use of each slot:
NOTE: Expansion slot (PCI) 7 and expansion slot (ISA) 1 are shared.
Slot name
Qty
Use
Processor slot
4
Pentium II Xeon processor is installed.
Memory slot
16
The memory platter board contains 16 slots.
Memory DIMMs are installed in units of 4 pieces.
Expansion slot (PCI)
7
Extended boards of PCI specifications are installed.
Expansion slot (ISA)
1
Extended boards of ISA specifications are installed.
Power slot
3
Power units are installed.
Power slot 1
Power slot 2
Power slot 3
Processor slot 1
Processor slot 2
Processor slot 3
Processor slot 4
Memory platter board
(memory slot x 16)
Expansion slot (PCI) 1
Expansion slot (PCI) 2
Expansion slot (PCI) 3
Expansion slot (PCI) 4
Expansion slot (PCI) 5
Expansion slot (PCI) 6
Expansion slot (PCI) 7
Expansion slot (ISA) 1
Master board
