Ch 3: Installing Optional Devices
Hitachi PC VisionBase 8450H/R Server
89
5.

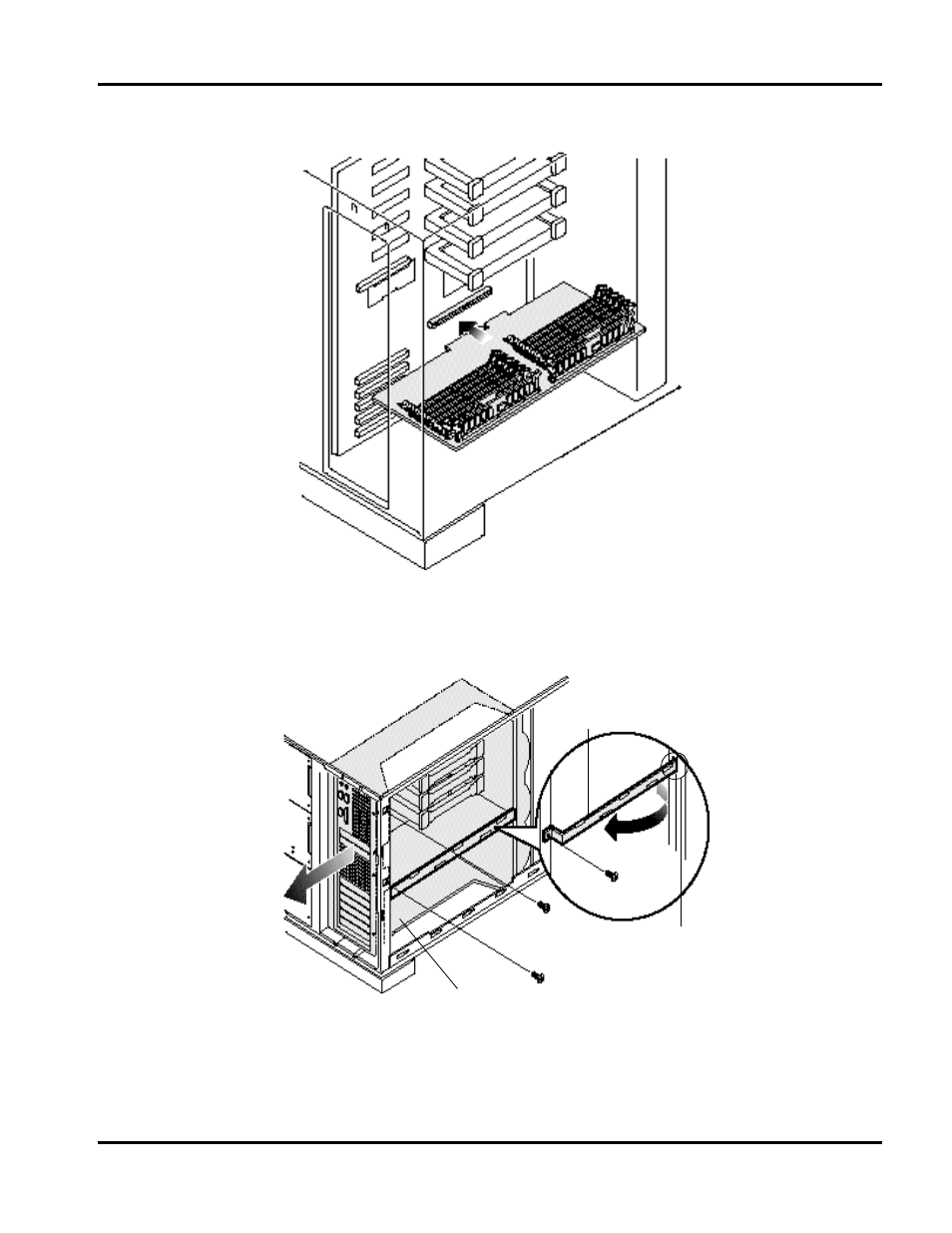

Aligning the memory platter board with the guide, insert the board straight horizontally.
6.
After inserting the claw of the memory bracket into the guide hole on the system equipment, fix it with mounting
screws.
7.
Pull the master bracket to the back, then fix it with two mounting screws.
7
7
6
Memory bracket
Guide hole
Master board bracket
