Ch 2: Installation and Use of Devices
10
Hitachi PC VisionBase 8450H/R Server
5.
Front door lock
Used to lock the front door. The door key is provided at the back of the system equipment.
6.
Storage bay door
Open this door when you install or replace internal hard disks. (Usually, this door should be closed.) The door
key is provided at the back of the system equipment.
7.
Extended storage bays 1 to 6
Used to install internal hard disks. See Chapter 3: “Installing Optional Devices” on page 37.
8.
Caster lock
NOTE: To unlock the caster, reach under the system equipment and lift up the lever.
Pressing down the lever in the center of the caster in front of the system equipment will lock the caster to fix the
system equipment.
To press down the lever, open the front door, then reach through the slit in the lower part of the system
equipment, then press the lever down.
After installing the system, lock the caster, then fix the system equipment.

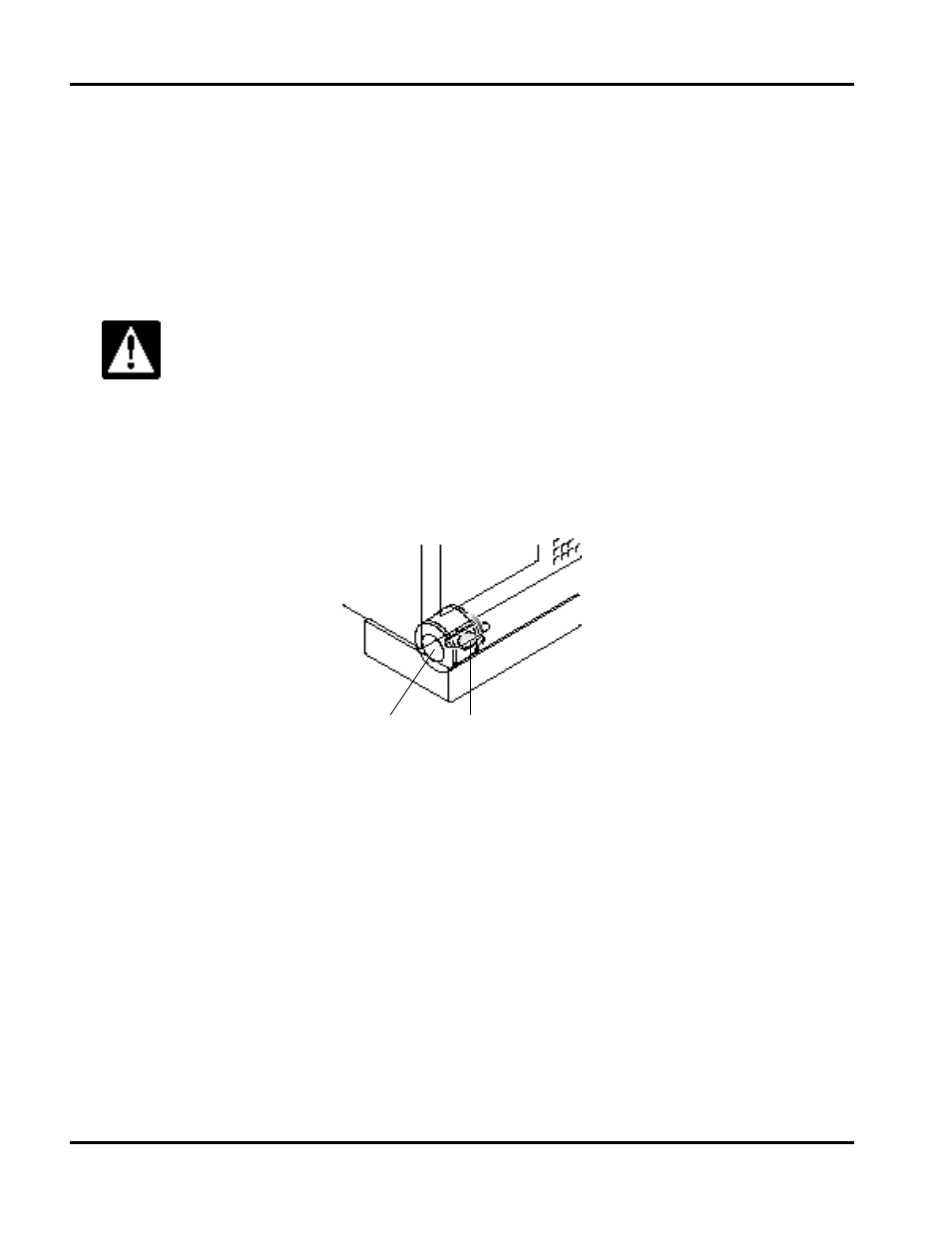

Caster
Knob
