Ch 3: Installing Optional Devices
Hitachi PC VisionBase 8450H/R Server 69

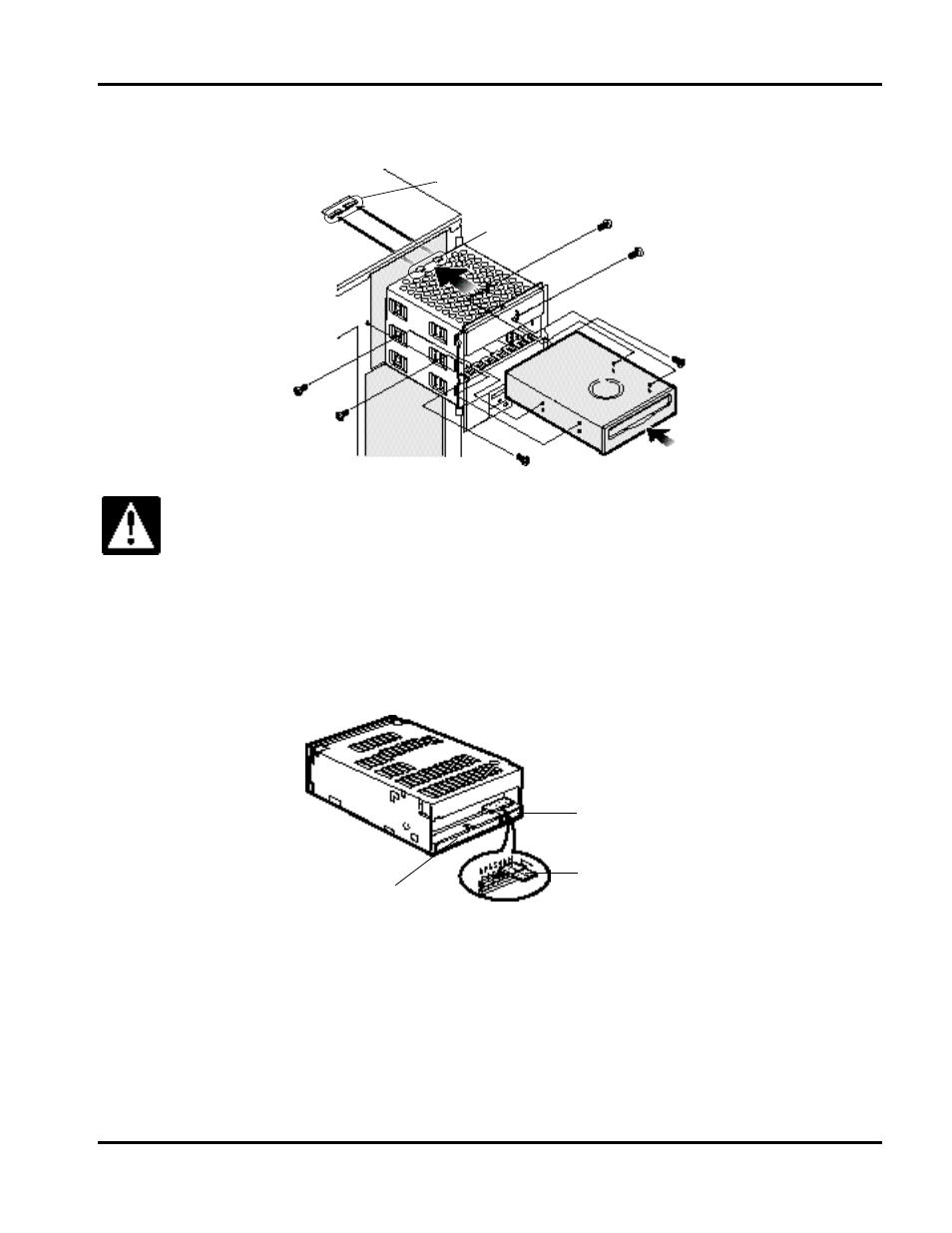

6. Install the device bracket onto the system equipment, then fix it with two mounting screws. While installing,
insert the claw of the device bracket into the guide hole on the system equipment.
The next step is connecting cables. See “Connecting Cables” on page 78.
Installing Internal DAT (Optional)
This section explains how to install an internal DAT onto an extended storage bay. Extended storage bays 8 and 9
are usable.
Use extreme care to protect internal hard disks from shock (hitting or falling on hard material).
Being precision devices, internal hard disks are very susceptible to shock.
Guide hole
Claw
Power connector
SCSI connector
Short bar
