3-10 Switching Between Ink Sets
Switching Between Ink
Sets
The inks are located in specific numbered locations on the
printer for optimal print and color quality. The software ignores
ink positions that are not needed for a print mode, so any ink
(or no ink) can be present in these positions. This provides flex-
ibility while minimizing the need to swap or reposition inks. For
example, by loading a 2x6 C2M2YK ink set, you can switch
between 2x6, 1x6, 2x4, and 1x4 print modes at the control
panel without moving or changing any inks (see below).
C = Cyan, mC = Medium Cyan
M = Magenta, mM = Medium Magenta
Y = Yellow
K = Black
1 x 6
2 x 6
2 x 4
1 x 4

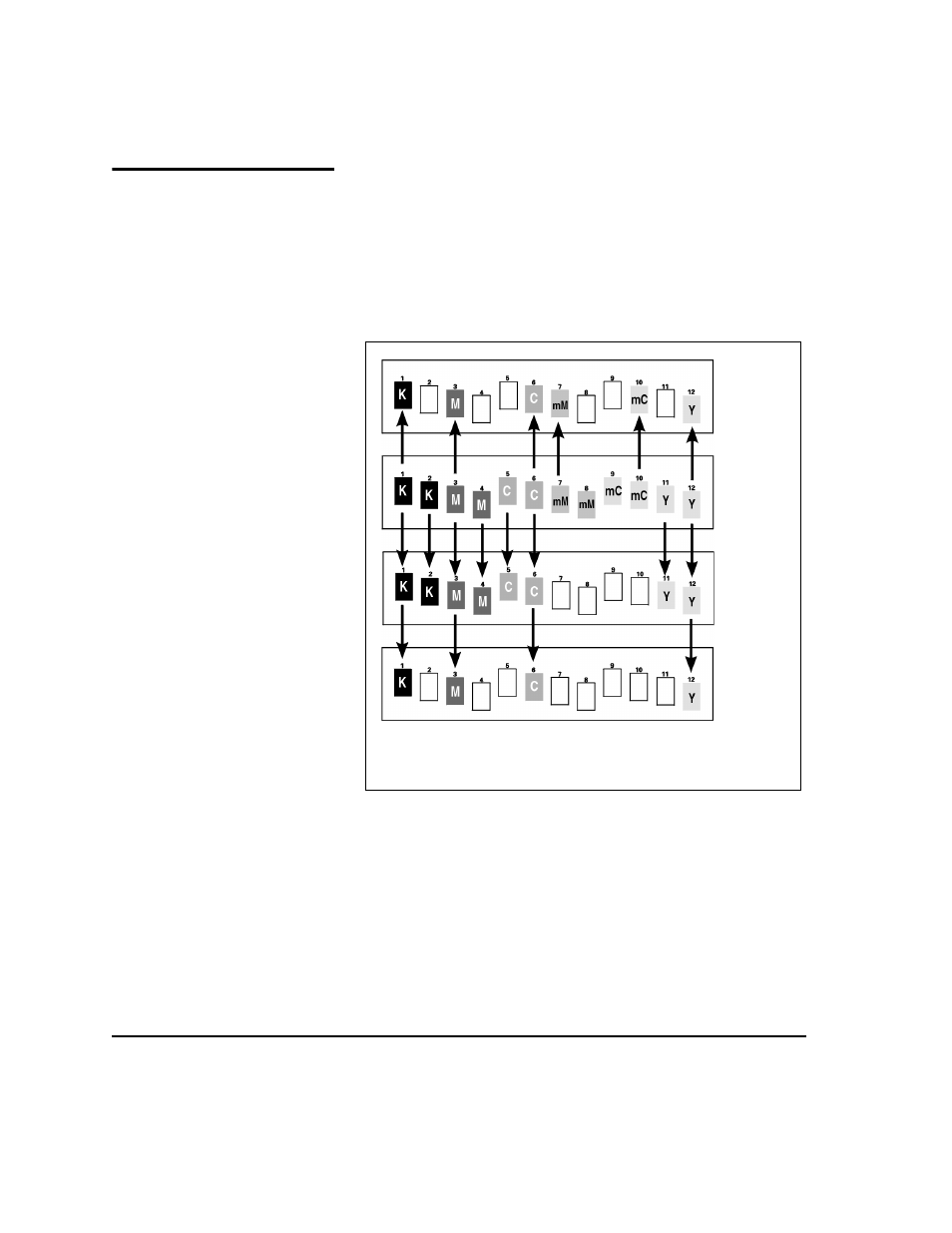

Fig. 3-5. Possible modes with a 2x6 ink set
