English
28

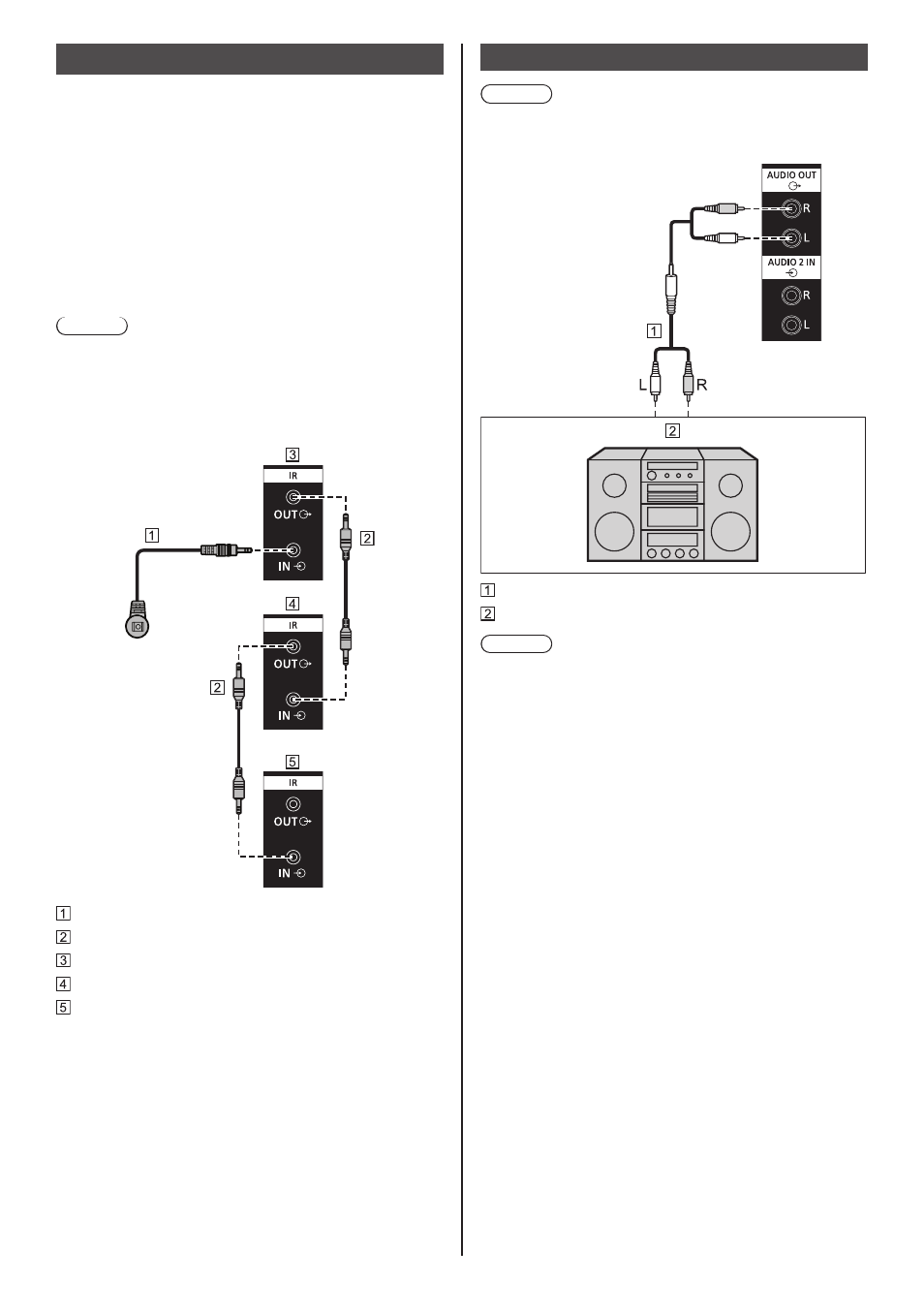

IR IN/IR OUT terminal connection
Connect the IR cable from the IR OUT terminal of the
first display to the IR IN terminal of the second display.
The infrared signal of the first display is sent to the
second display.
In this case, the IR (infrared ray reception on the remote
control sensor) on the second display does not operate.
Repeating the above connections enables the daisy
chain connection.
It is possible to receive signal from the remote control
by connecting the supplied external IR receiver to the IR
IN terminal.
Note
● Connection cables are not supplied with this unit.
● While controlling this display, if the external IR
receiver or the IR cable is connected to the IR IN
terminal, it cannot be controlled with the unit’s remote
control sensor.
External IR Receiver (supplied)
IR cable
First display
Second display
Third display
AUDIO OUT terminal connection
Note
● Audio equipment and the cable shown are not
supplied with this set.
line-in
Stereo audio cable (commercially available)
Audio equipment
Note
● To output sound from AUDIO OUT terminal of the
unit, be sure to set [Output select] in the [Sound]
menu to [AUDIO OUT]. (see page 43)
