19
English

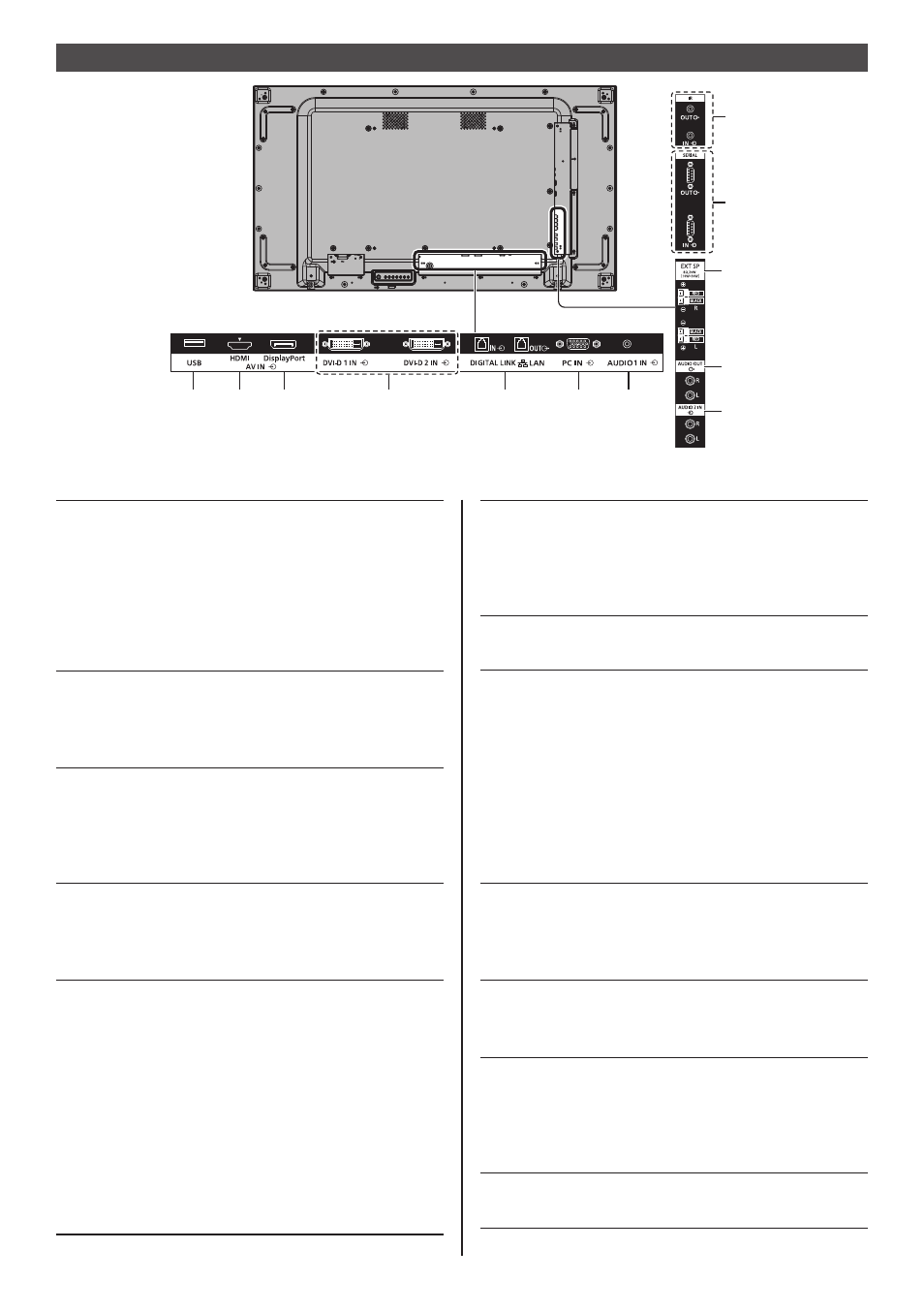

1 2 3 4 5 6 7
10
11
12
9
8
1 USB: USB Memory Terminal
Connect USB memory to use
[USB media player] function or
to read files. Also, this can be
used to supply power of up to
5V/500mA to an external device
when the picture is displayed.
(see page 29, 99)
2 AV IN
(HDMI):
HDMI Input Terminal
Connect to video equipment such
as VCR or DVD player, etc.
(see page 20)
3 AV IN
(DisplayPort):
DisplayPort Input Terminal
Connect to PC or video
equipment with DisplayPort
output terminal.
(see page 21)
4 DVI-D IN 1,
DVI-D IN 2:
DVI-D Input Terminal
Connect to PC or video
equipment with DVI-D output.
(see page 22)
5 DIGITAL LINK /
LAN IN/OUT:
DIGITAL LINK / LAN Input /
Output Terminal
Connect to a device that sends
video and audio signals via the
DIGITAL LINK terminal.
Alternatively, control the display
by connecting to Network.
Also, when displaying the picture
by daisy chaining multiple
displays, connect to the other
display.
(see page 24, 82)
6 PC IN: PC Input Terminal
Connect to video terminal of PC,
video equipment with “YP
B
P
R
/
YC
B
C
R
” or “RGB” output.
(see page 23)
7 AUDIO1 IN: Audio input terminal 1
(see page 22, 23)
8 IR IN,
IR OUT:
Infrared Signal Input / Output
Terminal
Use this when operating more
than one display with one remote
control.
It is possible to receive signal
from the remote control by
connecting the supplied external
IR receiver to the IR IN terminal.
(see page 28)
9 SERIAL IN,
SERIAL OUT:
SERIAL Input / Output Terminal
Control the Display by connecting
to PC.
(see page 25)
10 EXT SP: Speaker Terminal
Connect to external speaker.
(see page 30)
11 AUDIO OUT: Analogue Audio Output
Terminal
Connect to audio equipment with
analogue audio input terminal.
(see page 28)
12 AUDIO2 IN: Audio Input Terminal 2
(see page 22, 23)
Video equipment connection
