70
English
■

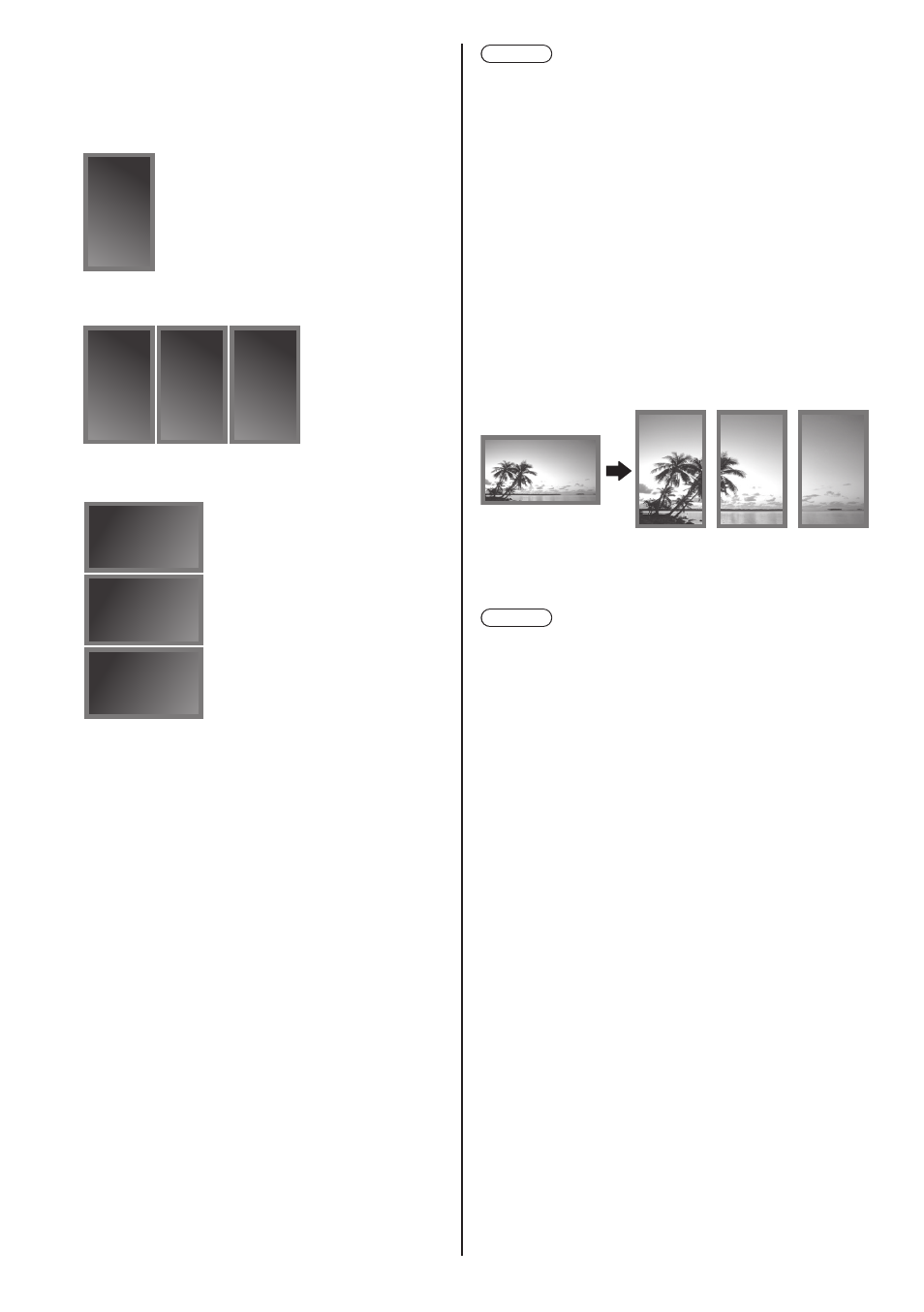

[Installation method]
Sets the installation method of displays that make up
the portrait display.
[Portrait 1 screen]: Setting configuration of [Portrait
1 screen]
[Portrait 3 screens]: Setting configuration of
[Portrait 3 screens]
Left Centre Right
[Landscape 3 screens]: Setting configuration of
[Landscape 3 screens]
Upper
Centre
Lower
■
[Display format]
[Full]:
Displays the entire input images so that the image
is displayed without missing portion.
When [Installation method] is [Landscape 3
screens]
[
16:9 V fit ]:
Displays images without missing portion, however,
some portion of the input images on the top and
bottom is cut.
[16:9 H fit]:
Displays the entire input images, however, some
portion of the images on right and left is not
displayed.
When [Installation method] is [Portrait 3 screens]
[
16:9 V fit ]:
Displays images without missing portion, however,
some portion of the input images on the right and
left is cut.
[16:9 H fit]:
Displays the entire input images, however, some
portion of the images on top and bottom is not
displayed.
Note
● [16:9 V fit] and [16:9 H fit] keep the aspect ratio 16:9
but [Full] doesn’t.
■
[Bezel adjustment]
Adjusts the area of image hidden in the joint area on
the portrait screen.
0 to 100
■
[Location]
Assign the positions of portrait screens.
When [Installation method] is [Landscape 3
screens]
[Upper] / [Centre] / [Lower]
When [Installation method] is [Portrait 3 screens]
[Left] / [Centre] / [Right]
Portrait screen display example
Left Centre Right
• When [Portrait display] is set to [Off], the enlarged
position can be confirmed on the screen if
[Installation method] is set to [Portrait 3 screens].
Note
● The settings are memorised separately for each input
terminal.
● It is possible to set [Display format], [Bezel
adjustment] and [Location] when [Installation method]
is [Portrait 3 screens] or [Landscape 3 screens].
● This menu will be greyed out and cannot be set under
the following conditions.
• When [Multi display settings] - [Multi screen
display] is [On] (see page 68)
● When [Portrait display] is [On], the aspect mode
cannot be changed. (see page 38)
