DIVA T/A ISDN Modem User’s Guide
◆ Page 7

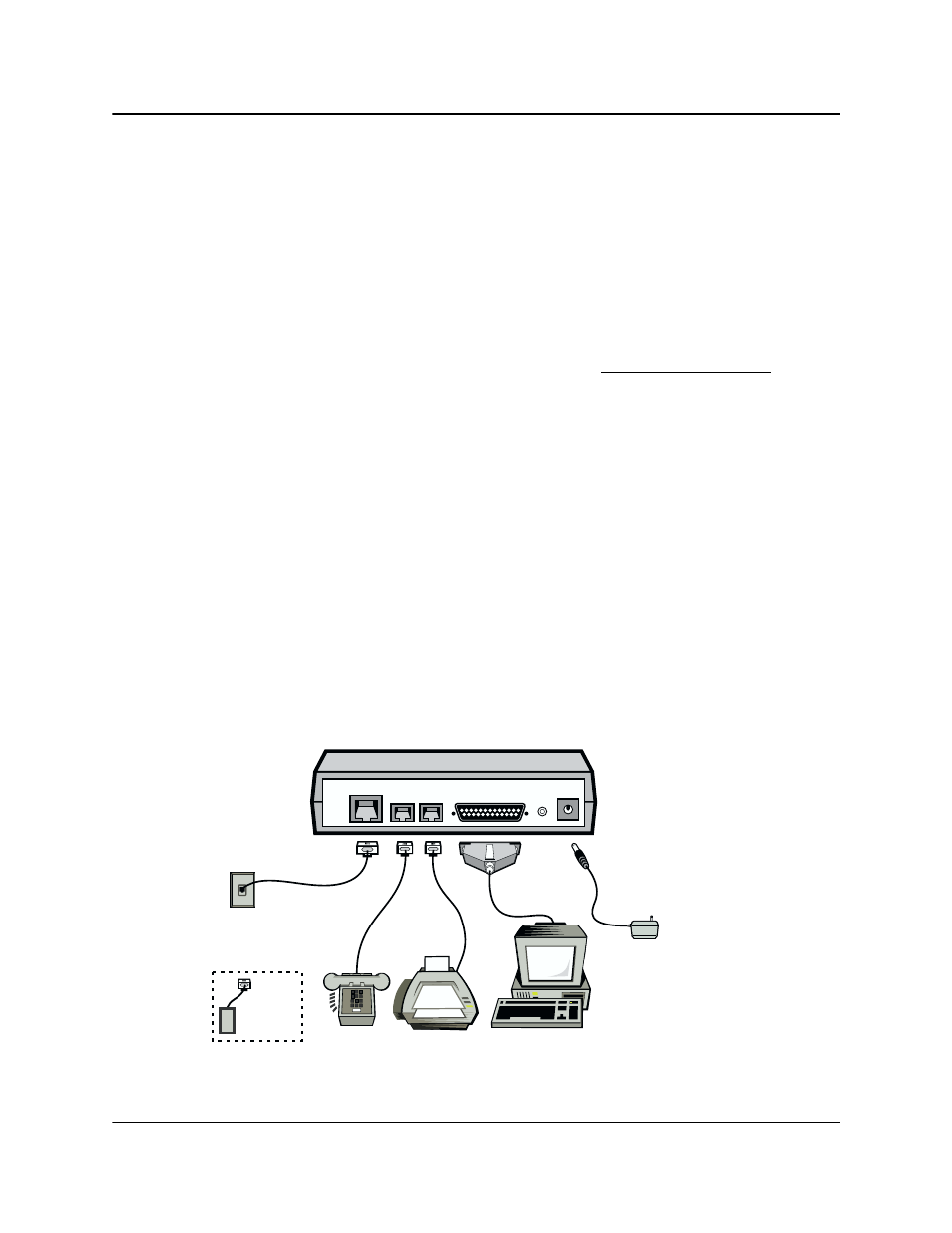

Connecting the Cables to the DIVA T/A
Follow the steps below to connect the cables to your DIV AT/A.
1 Turn off your computer before you connect the cables.
2 Connect the RJ45 end of the ISDN cable to the jack labeled ‘ISDN’ on the rear of the
DIVA T/A. See below to complete the connection.
• Integrated NT1 (U): Connect the other end of the ISDN cable to your ISDN wall jack.
• S/T Interface: Connect the other end of the ISDN cable to an NT1 interface, whether
part of the ISDN service (e.g. corporate phone switch) or external. In Australia, you
may have to change the ISDN line termination. See “ISDN Line Termination” on
page 129 for more information.
3 If your DIVA T/A model comes with phone ports, attach the cables from analog devices
(telephone and fax machine, for example) to the jacks labeled PHONE 1 and PHONE 2 on
the rear of the DIVA T/A. It is recommended that you use PHONE 1 for voice and PHONE 2
for data (modem or fax). Phone ports are only available on certain models.
In certain countries (such as France and the United Kingdom) you must attach your
analog devices to phone adapters before connecting them to the DIVA T/A. One adapter
has been included in your DIVA T/A package.
4 Connect one end of the serial cable to the port labeled SERIAL on the rear of the
DIVA T/A, and the other end to the appropriate serial port on your computer.
Note: If you are connecting the DIVA T/A to a Macintosh, you will need a
Macintosh-style modem cable (DB25M-to-DIN8M) that supports hardware handshaking.
The included serial cable (DM25M-to-DB9F) is for use with IBM compatible PCs.
5 Connect the A/C adapter connector to the power jack on the rear of the DIV AT/A, then
plug the adapter into an AC power outlet.
Note: On certain DIVA T/A models, the order of the serial and analog ports is reversed.
Reset
ISDN
Phone 1 Phone 2 Serial
ISDN Jack
Fax Phone
ISDN Cable
Analog
Devices
Serial
Cable A/C
Adapter
Phone
Adapter
Desktop Computer
