DIVA T/A ISDN Modem User’s Guide
◆ Page 60

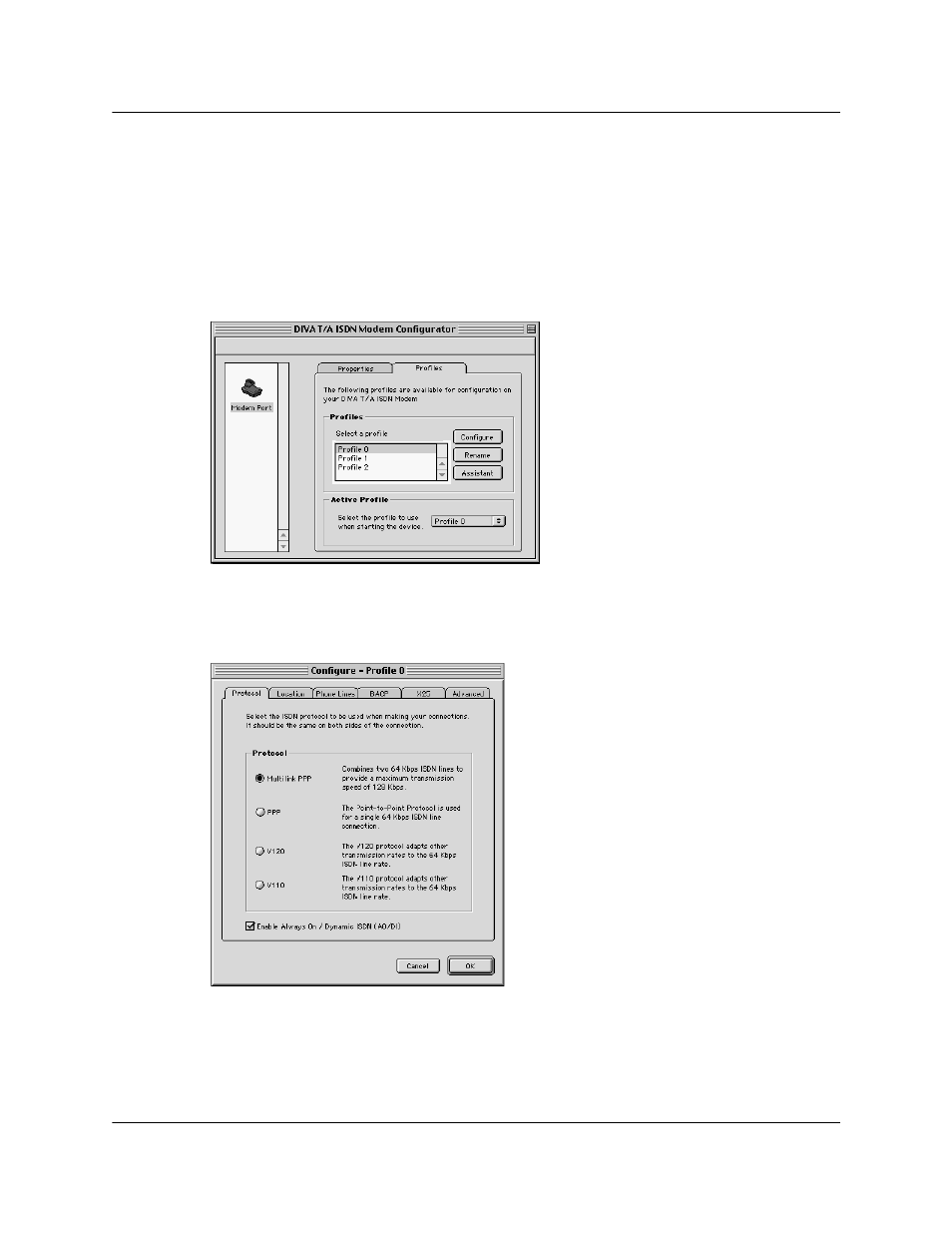

The DIVA Terminal Adapters Program for Macintosh
Configuring a Profile using the Configuration Tool
To configure a profile manually using the Configuration Tool:
1 Launch the DIVA Terminal Adapter Program.
2 Click on the ‘Profiles’ tab. Three default profiles are available: Profile 0, Profile 1, and
Profile 2. Profile 0 was modified using the Configuration Assistant when you ran the DIVA
Terminal Adapters program for the first time.
If you wish to rename a profile, select the profile from the list and click ‘Rename’.
3 Select the profile from the list and click ‘Configure.’ The Configuration Tool dialog
appears. By default, the Protocol tab is displayed.
