CI-ControlWave EFM

Installation & Operation / 2-19

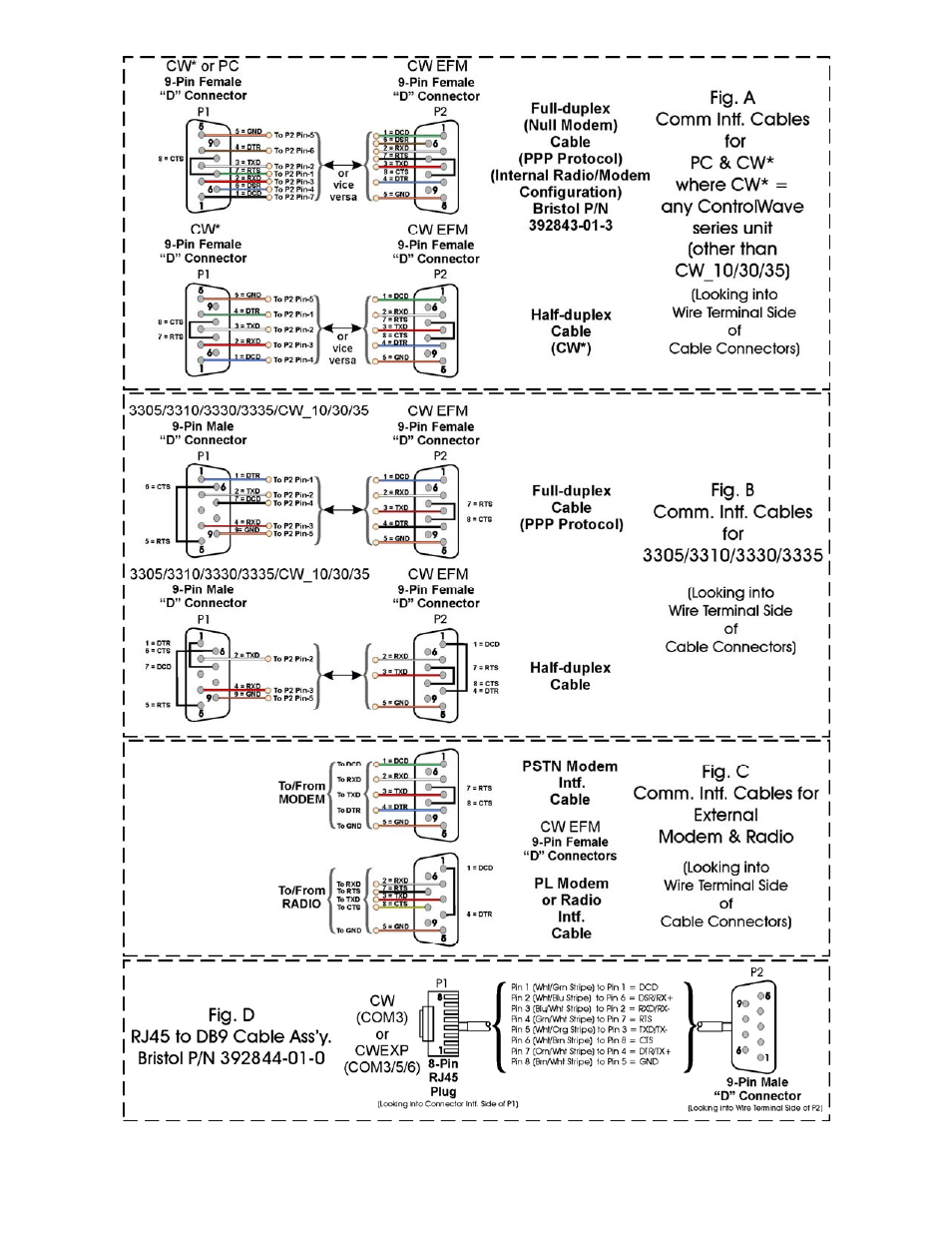

Figure 2-12 - Communication Port RS-232 Cable Wiring Diagram
