Emerson Process Management ControlWave EFM 3808 - Manual (Page 125)

CI-ControlWave EFM Service / 3-9

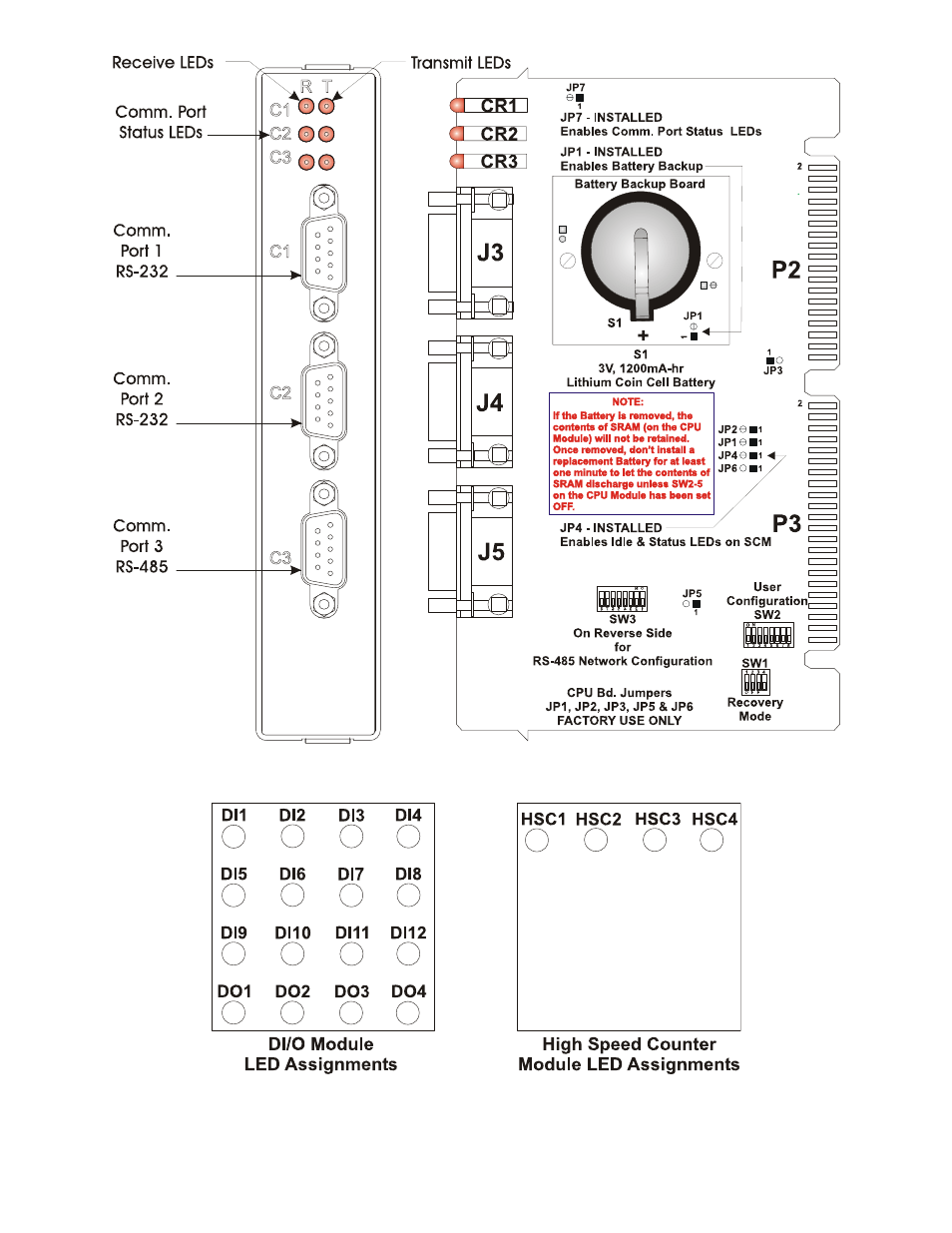

Figure 3-4 - CPU Module Communication Connector and LED Designations
Figure 3-5 - ControlWave EFM Plus I/O Module LED Designations
