4-4 / Specifications CI-ControlWave EFM

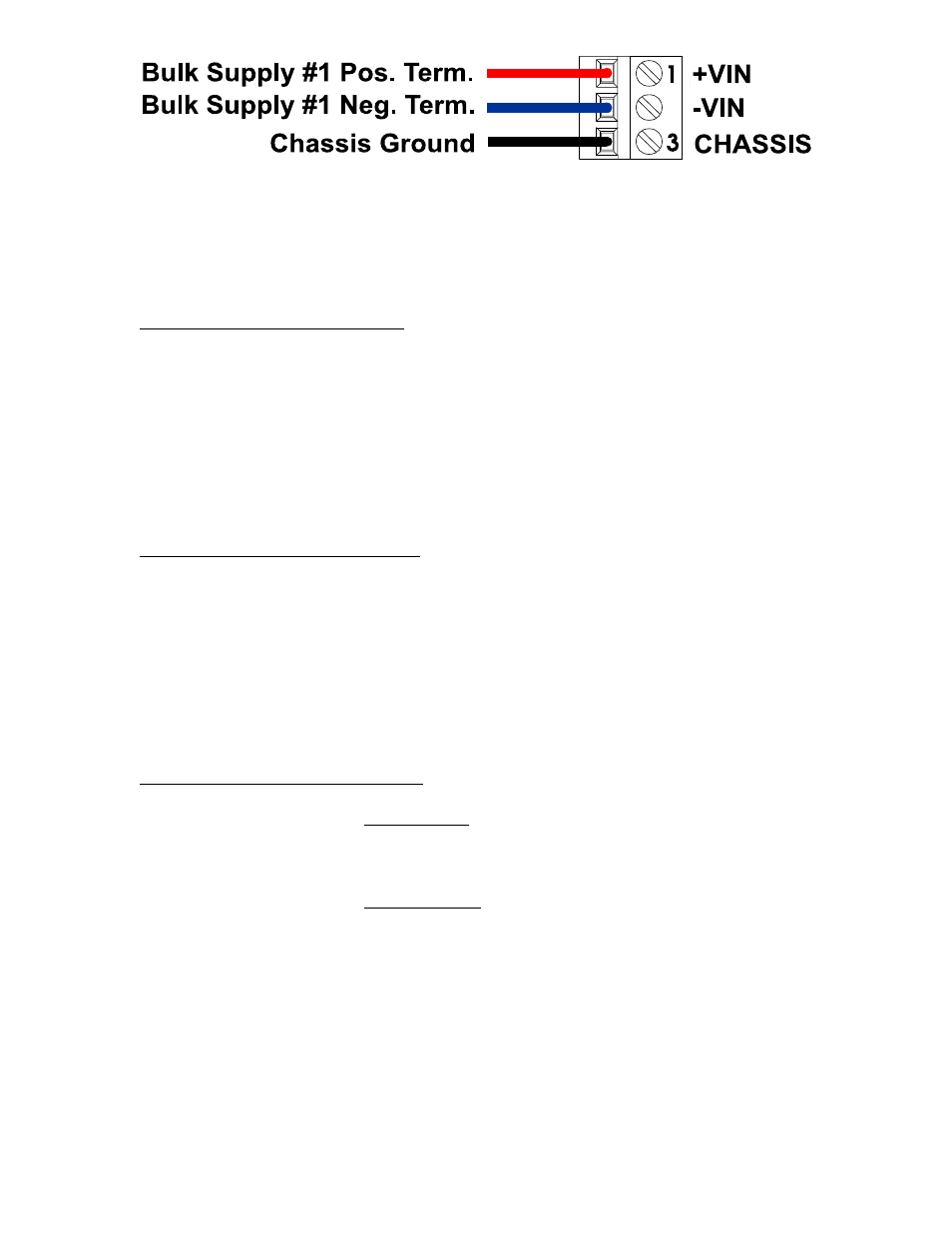

Figure 4-2 - SCM - TB1 (Power Connector)
4.4 INPUT/OUTPUT MODULE SPECIFICATIONS
4.4.1 Non-isolated Analog Input/Output Module
Non-isolated Analog Inputs
Number of Inputs:
6 Single Ended Inputs (1-5V or 4-20Ma) individually
jumper configurable
Input Type:
(Externally Powered) Voltage Input: 1-5 Vdc
(Externally Powered) Current Loop: 4-20mA
Input Impedance:
1 Meg ohm for 1-5V inputs
250 ohm for 4-20mA inputs
Non-isolated Analog Outputs
Number of Outputs:
2 AOs (1-5V or 4-20Ma) individually jumper configurable
4-20mA Output
Compliance:
250 ohm load with 11V External Power Source
650 ohm load with 24V External Power Source
1-5V Output:
5mA maximum output current into external load with
external voltage range of 11 to 30 Vdc
General AI/AO Module Specs.
Accuracy: Analog
Input
0.1% of Span @ +25ºC (+77ºF)
0.2% of Span @ -40ºC to +70ºC (-40ºF to 158ºF)
Analog
Output
Current Output:
0.1% of Span @ +25ºC (+77ºF)
0.2% of Span @ -20ºC to +70ºC (-4ºF to 158ºF)
0.3% of Span @ -40ºC to +70ºC (-40ºF to 158ºF)
Voltage Output Compliance (I
load
max = 5mA):
(see Note 1 & Note 2 )
0.1% of Span + X @ +25ºC (+77ºF)
0.2% of Span + X @ -20ºC to +70ºC (-4ºF to +158ºF)
0.3% of Span + X @ -40ºC to +70ºC (-40ºF to 158ºF)
where X = [(2.5 ohms x I
load
)/4.4V x 100]
Note 1 : Does not include error due to inductors
